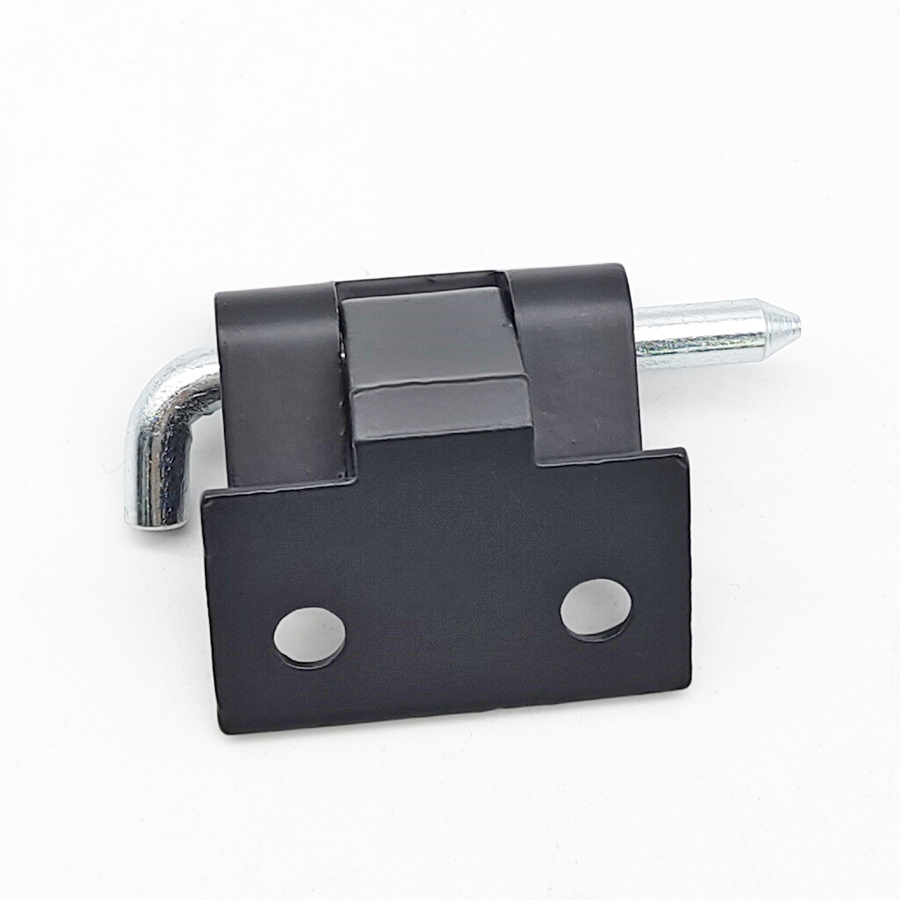

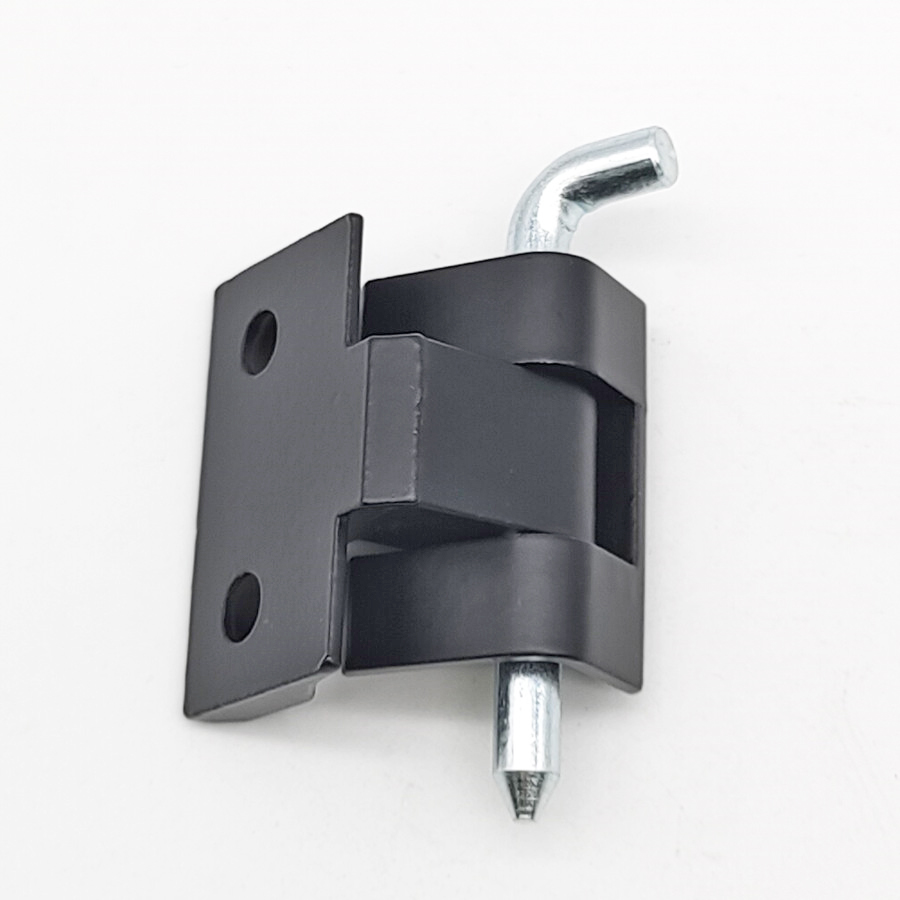

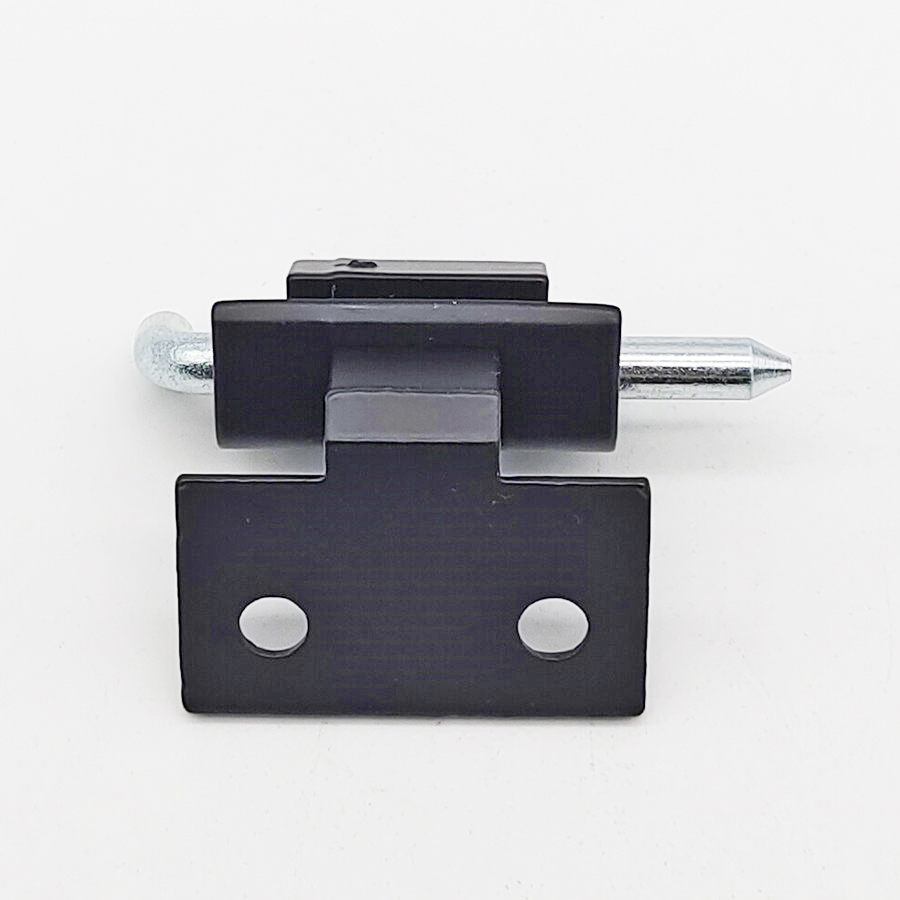

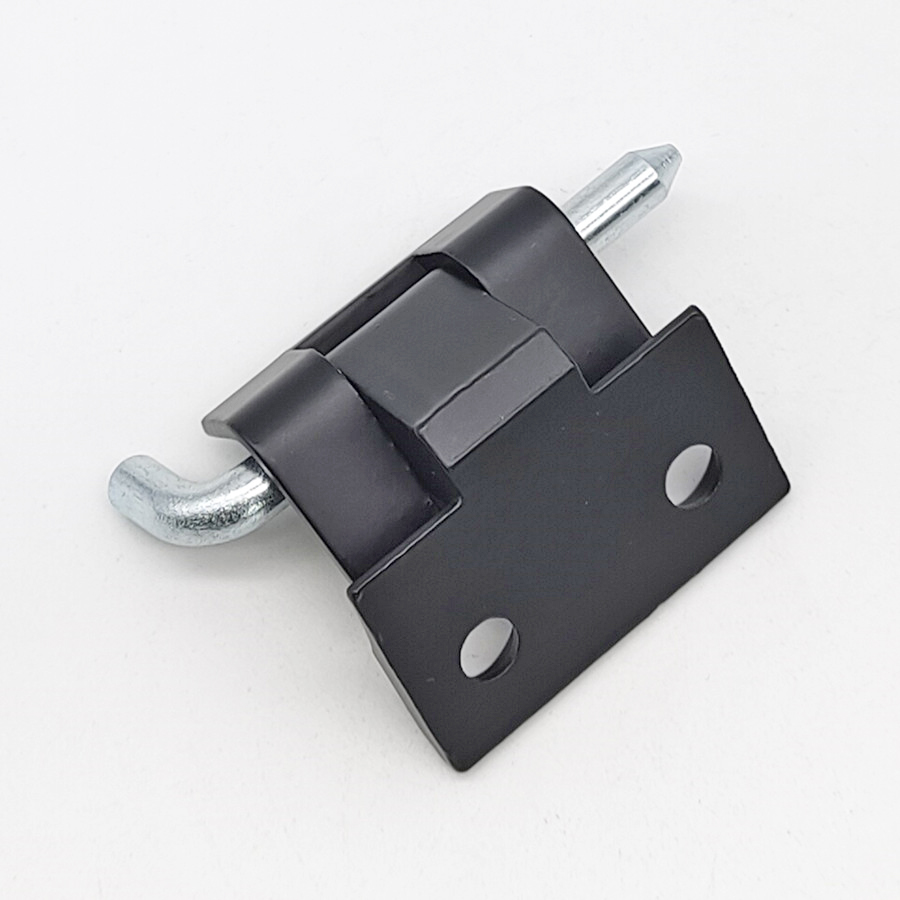

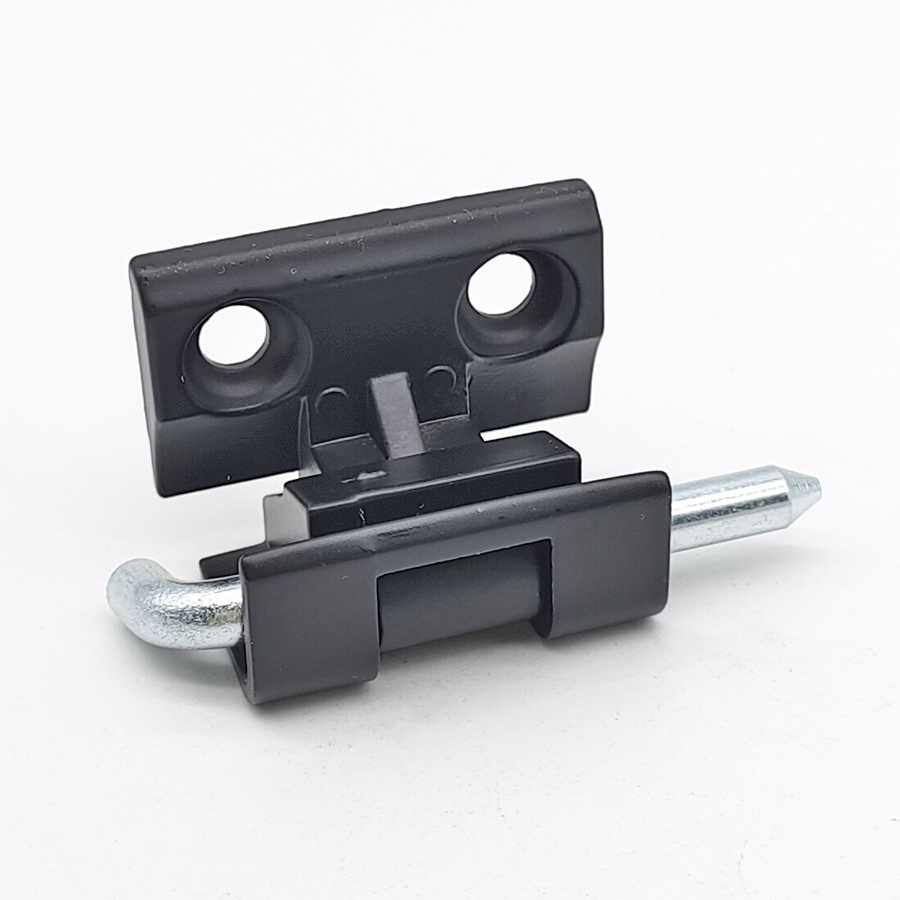

Hinge (JH212)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金铰链，碳钢销子 Zinc alloy Hinge, carbon steel bolt |
表面处理 Surface treatment | 喷塑（黑淡光）铰链 Matt black spray painted hinge |
结构说明 Structure descriPTion | 可开启角度180° 180 degree rotation |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 Radial load | 935N |
轴向载荷 Axial load | 915N |
备注：以上数据为***静荷载。
Remark：The above data is maximum static load.

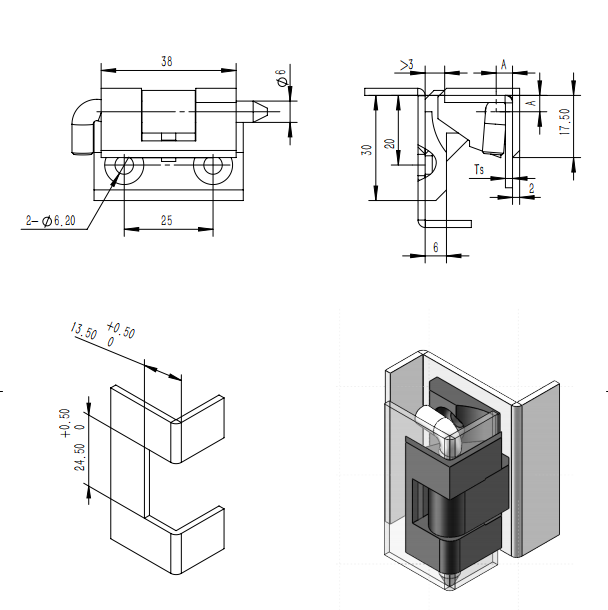

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
