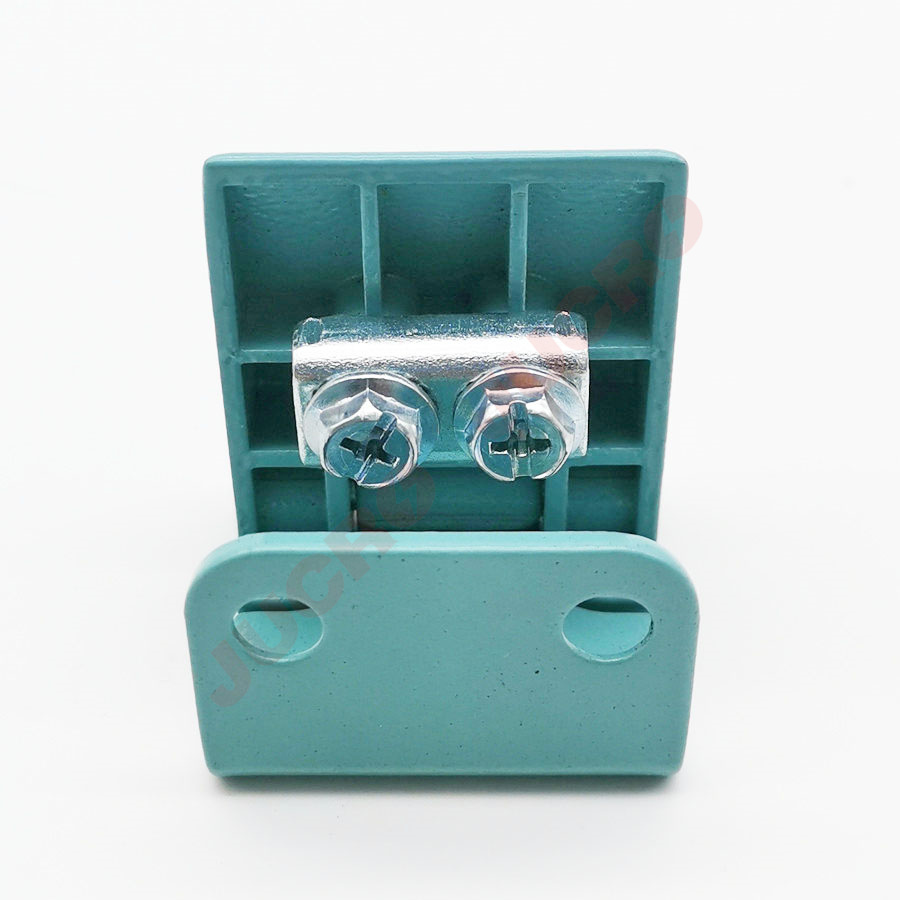

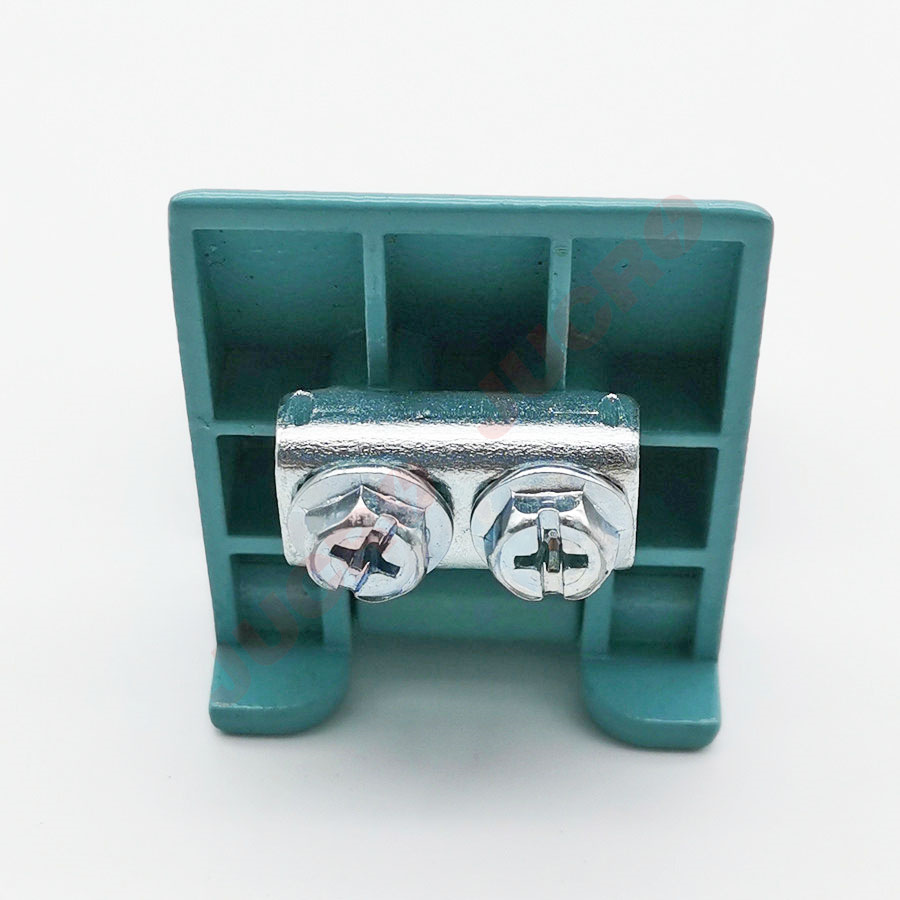

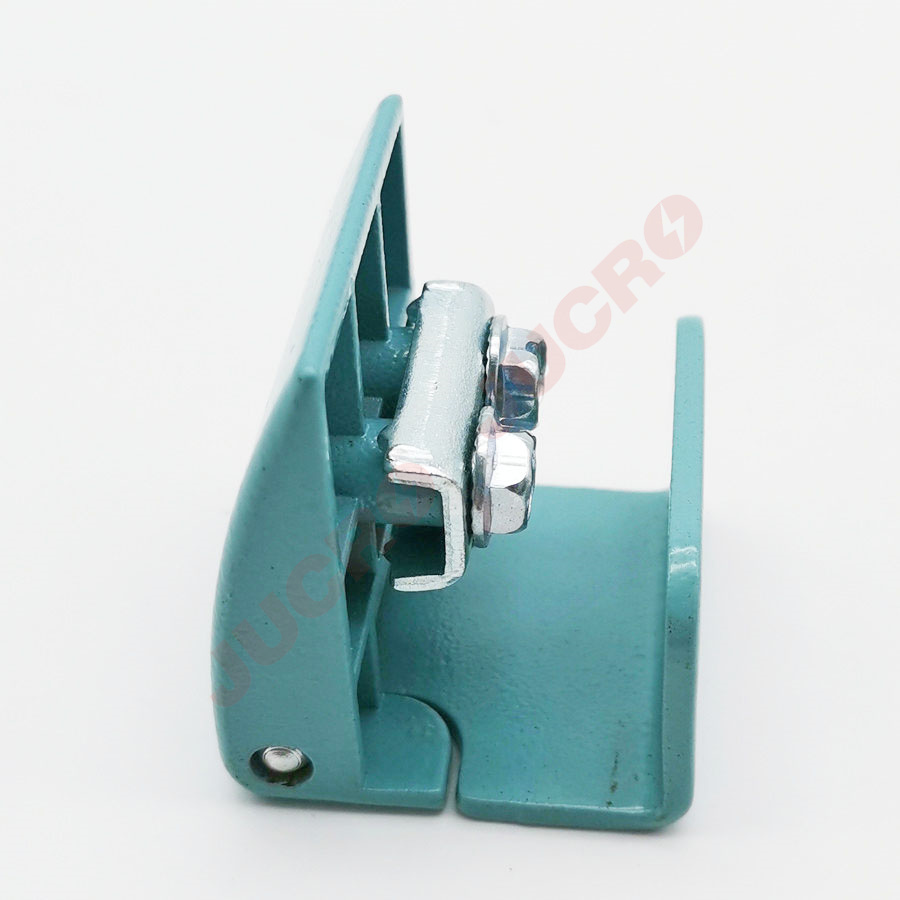

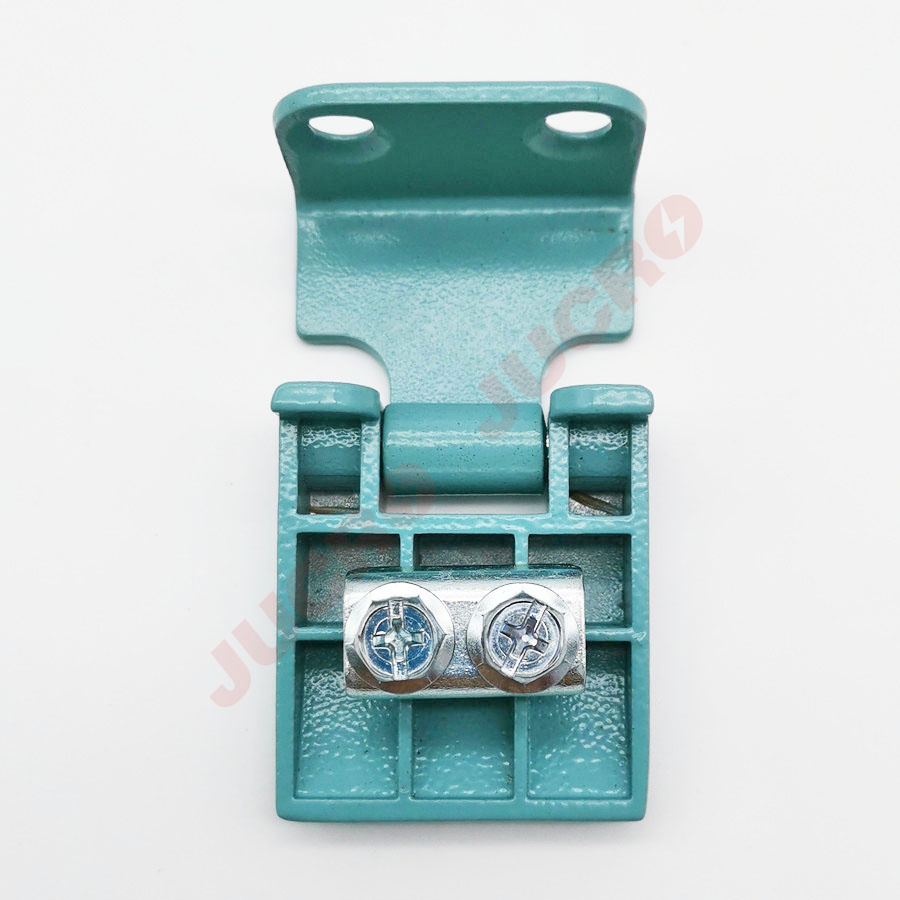

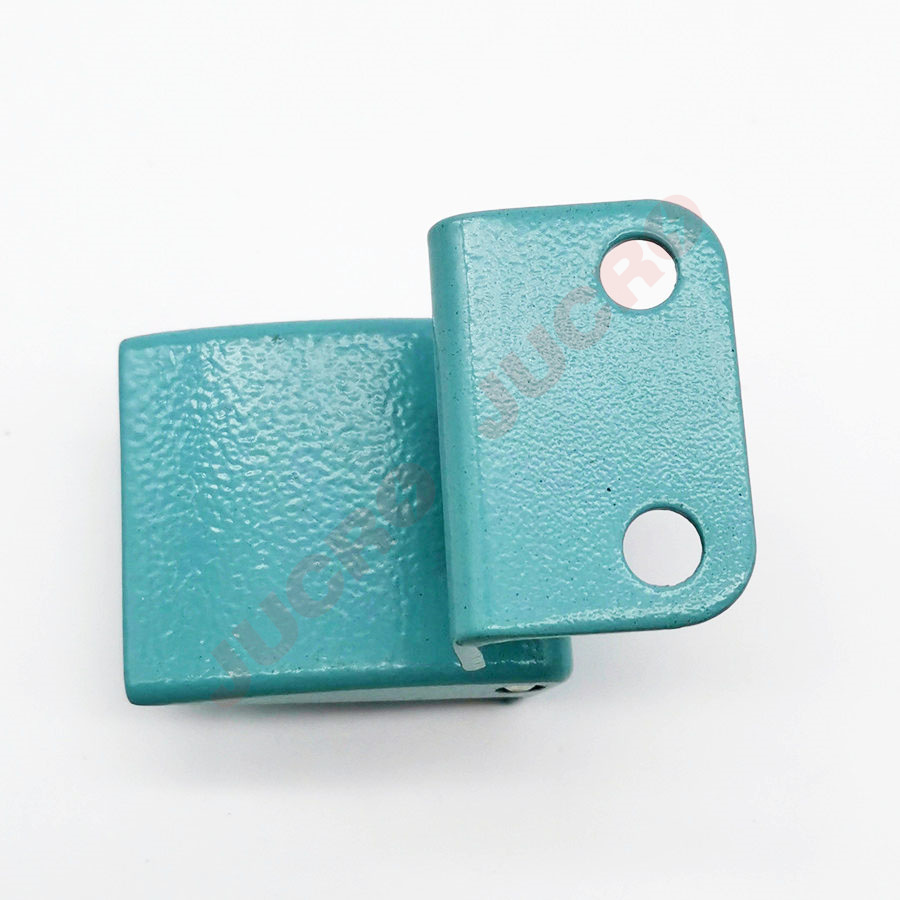

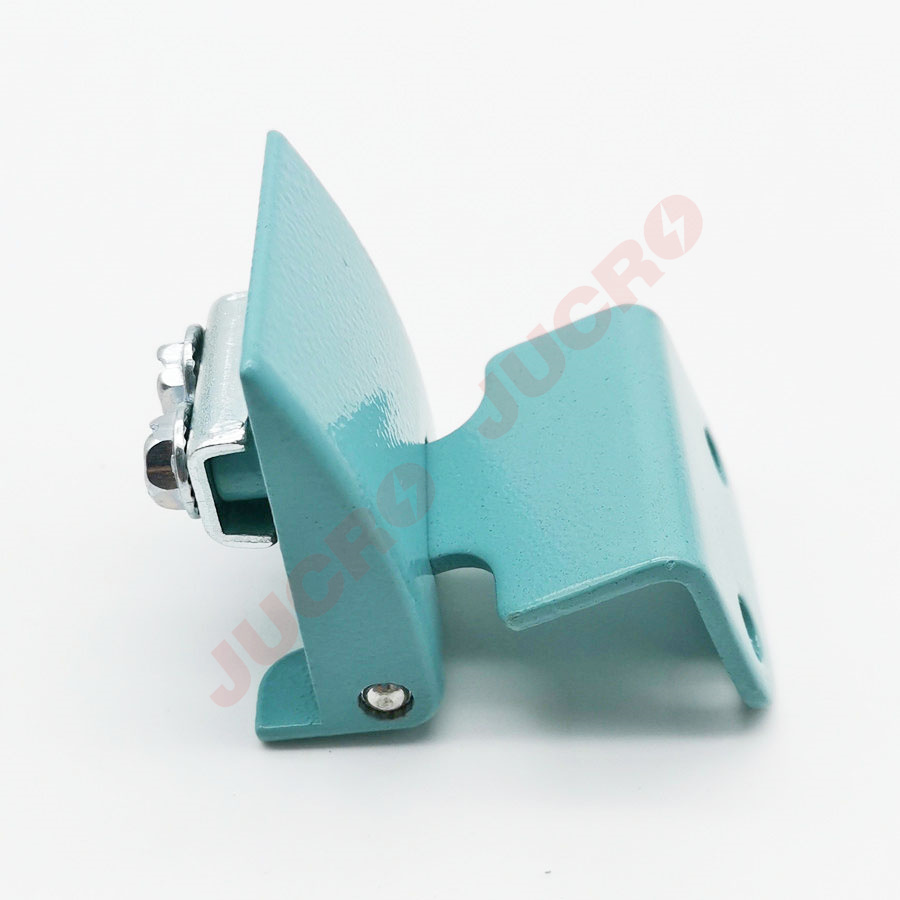

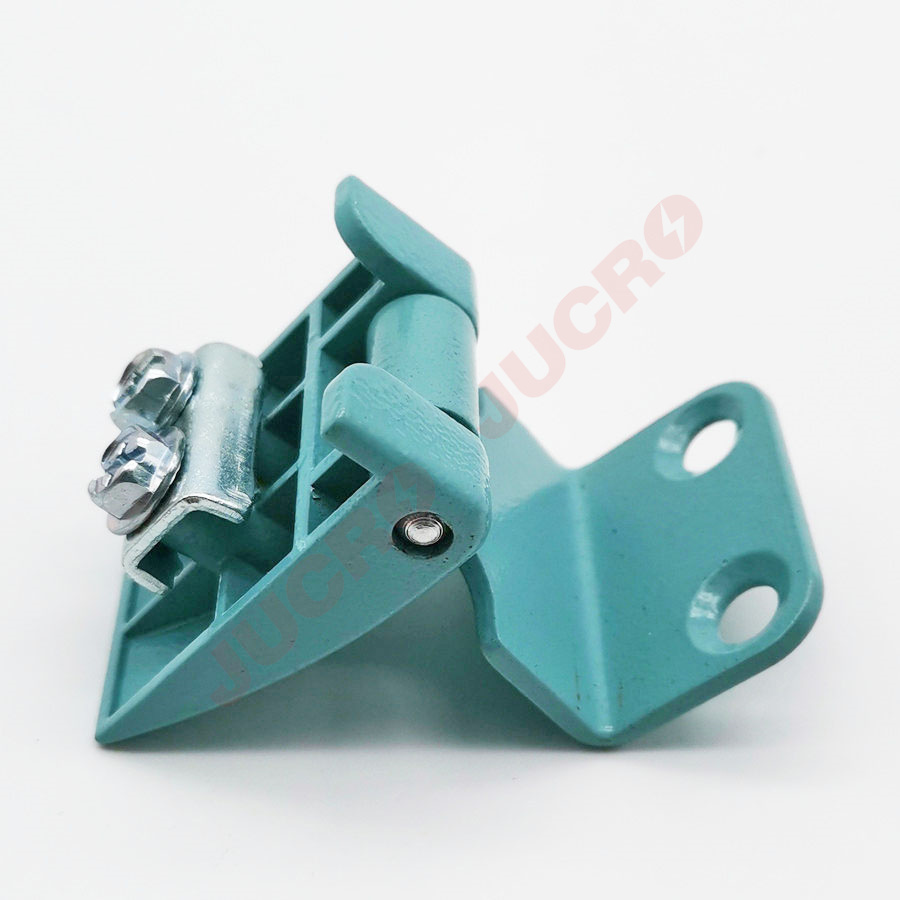

Hinge (JH202-2)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金动铰链，碳钢静铰链压板、销子、螺钉 Zinc alloy door-part; carbon steel frame-part, pin and screw |
表面处理 Surface treatment | 喷漆 Spray painted |
结构说明 Structure descriPTion | 可开启角度180° 180 degree rotation |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 Radial load | 560N |
轴向载荷 Axial load | 520N |
备注：以上数据为最大静荷载。
Remark：The above data is maximum static load.

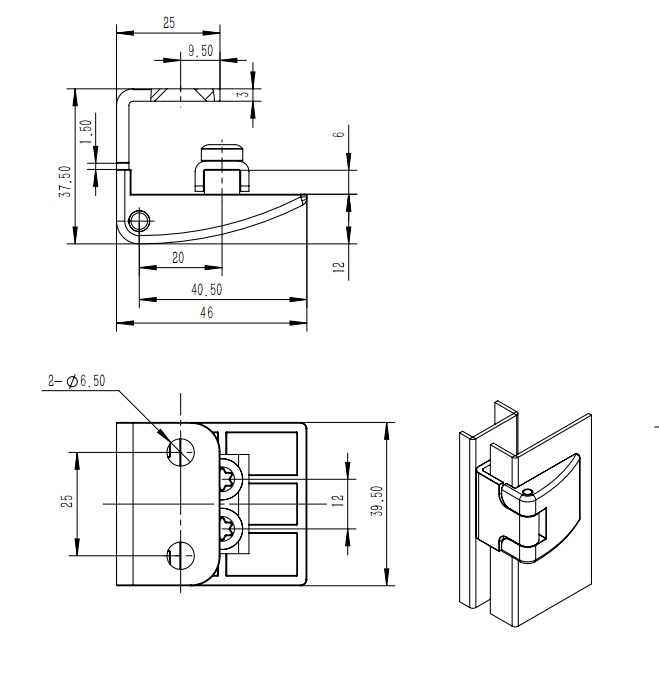

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
