特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、锁芯、防尘盖、把手,碳钢钢栓、齿圈、转轴 Zinc alloy housing, insert, dust-tight cap and handle; carbon steel bolt, teeth washer and shaft |
表面处理 Surface treatment | 镀亮铬基座、锁芯、防尘盖、把手,镀白锌钢栓 Bright chrome plated housing, insert, dust-tight cap and handle; white zinc plated steel bolt |
结构说明 Structure descriPTion | 钢栓可调 Bolt adjustable |
备 注 Remark | 默认钥匙 Default key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 242N |
***输入扭矩 Maximum input torque | 23N•m |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 30N•m |

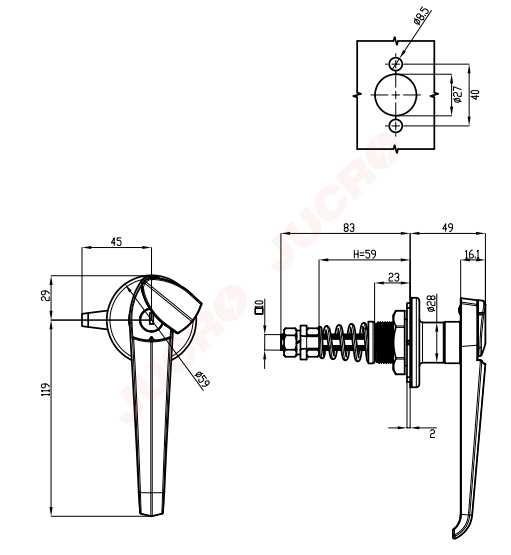

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
