特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、把手,碳钢钢栓 Zinc alloy housing and handle, carbon steel bolt |
表面处理 Surface treatment | 镀亮铬基座、把手,镀白锌钢栓 Bright chrome plated housing and handle, white zinc plated steel bolt |
结构说明 Structure descriPTion | 旋转90°实现开启或闭锁 Quarter-turn Lock/un-lock |
备 注 Remark | 默认钥匙 Default key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 220N |
***输入扭矩 Maximum input torque | 15N•m |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 20N•m |

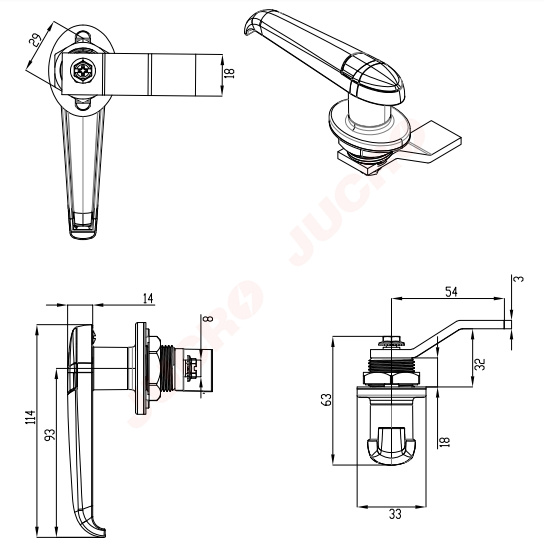

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
