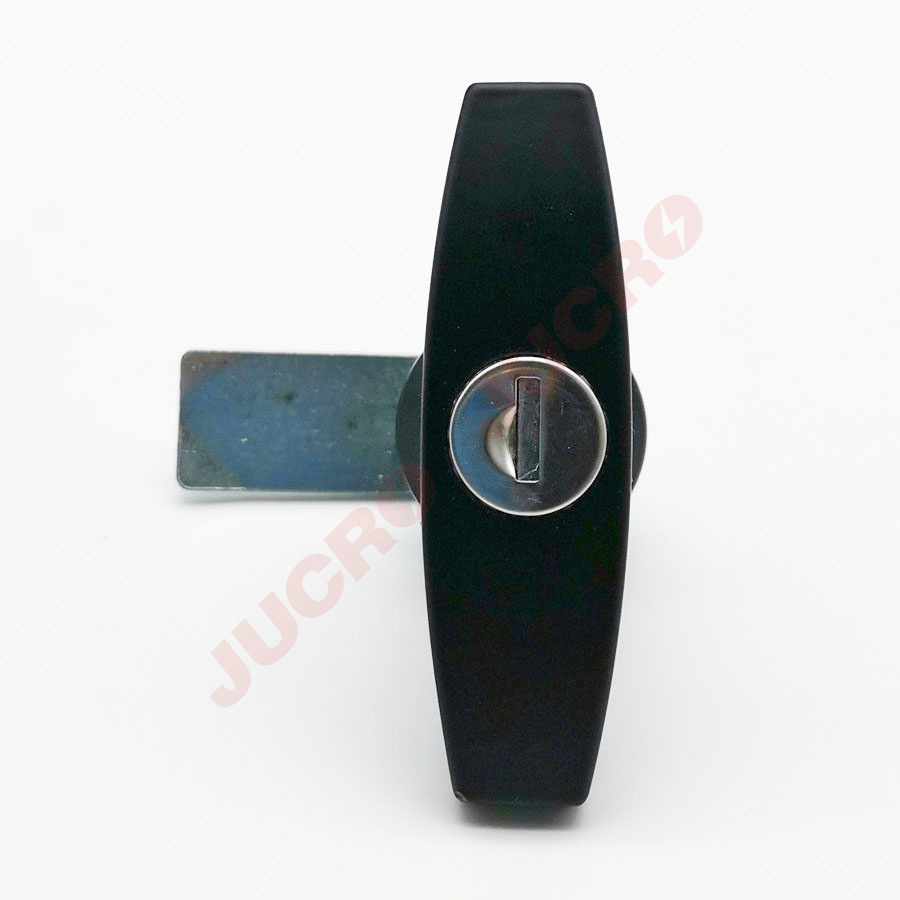

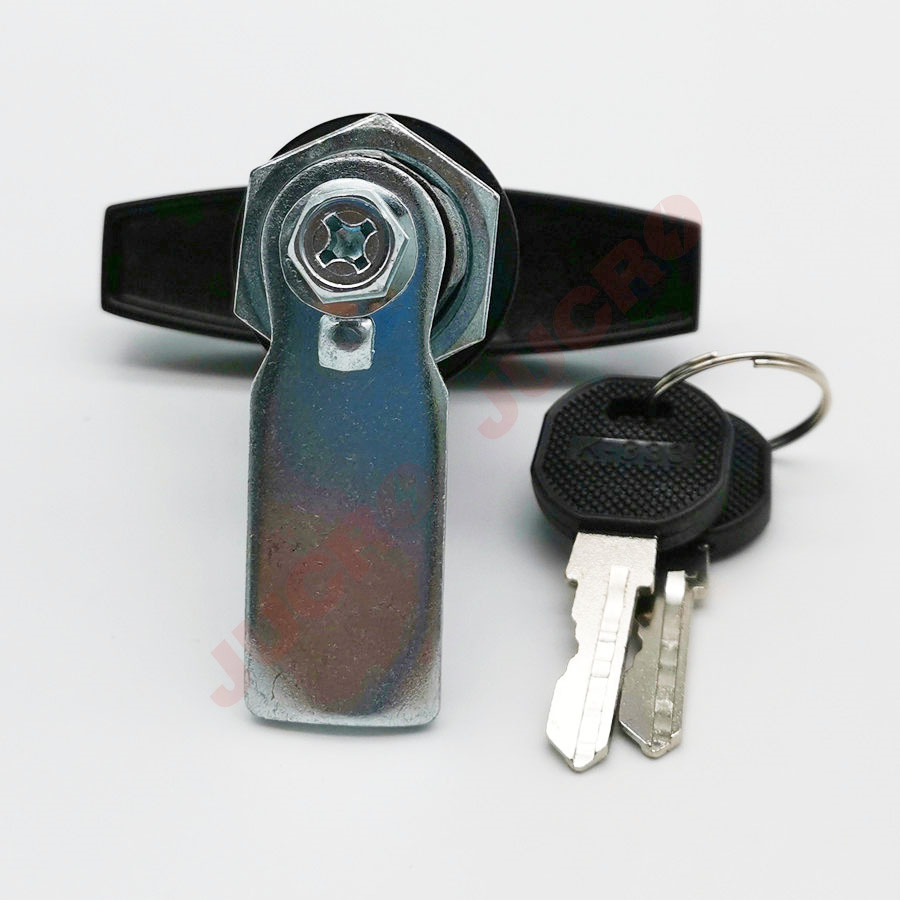

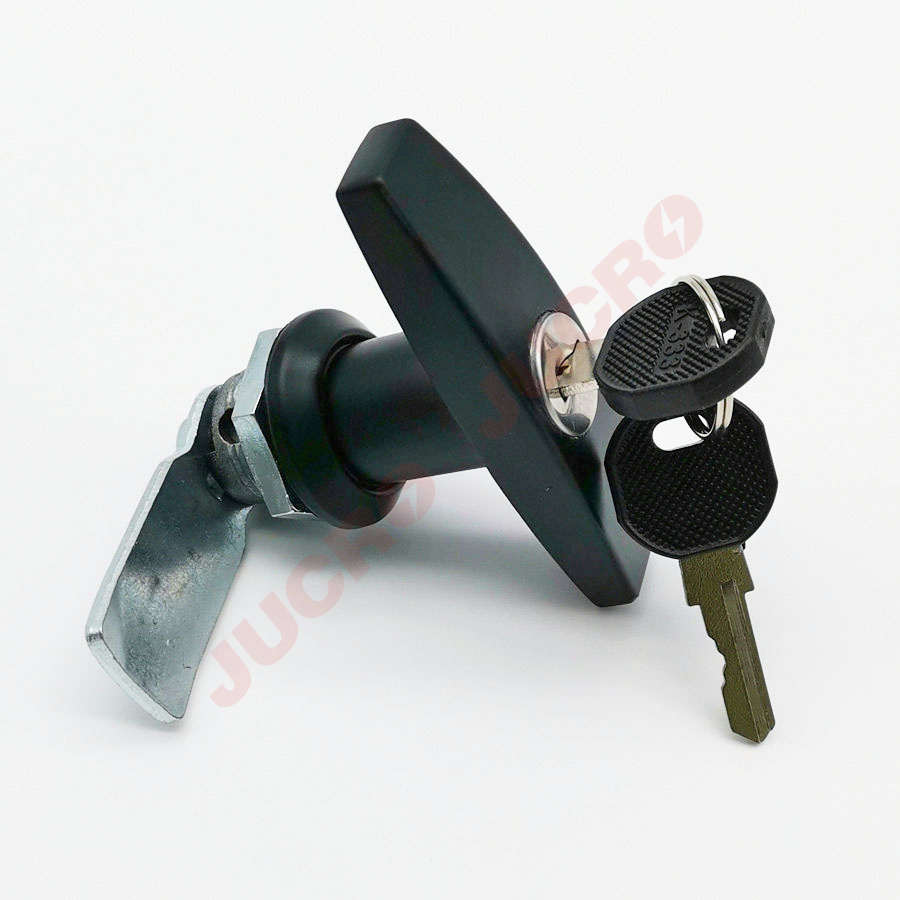

Handle lock DL101-1

Handle lock DL101-1

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base, Lock cylinder and handle, Carbon steel bolt

表面处理

Surface treatment

基座及手柄喷黑漆,钢栓镀白锌

Black spray paint for base and handle, white zinc plating for steel bolt.

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock

备 注

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

220N

***输入扭矩

Maximum input torque

15Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

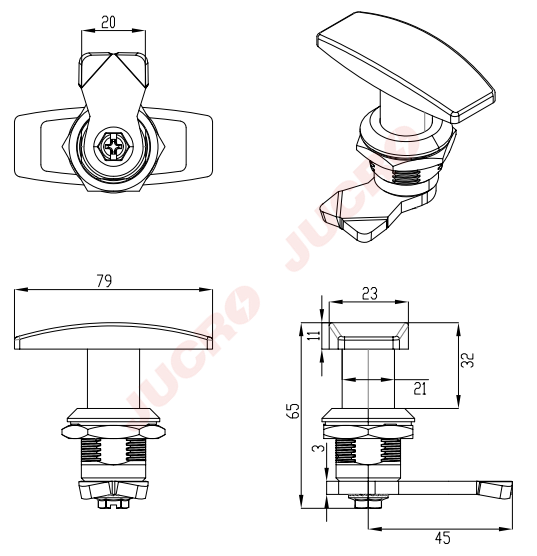

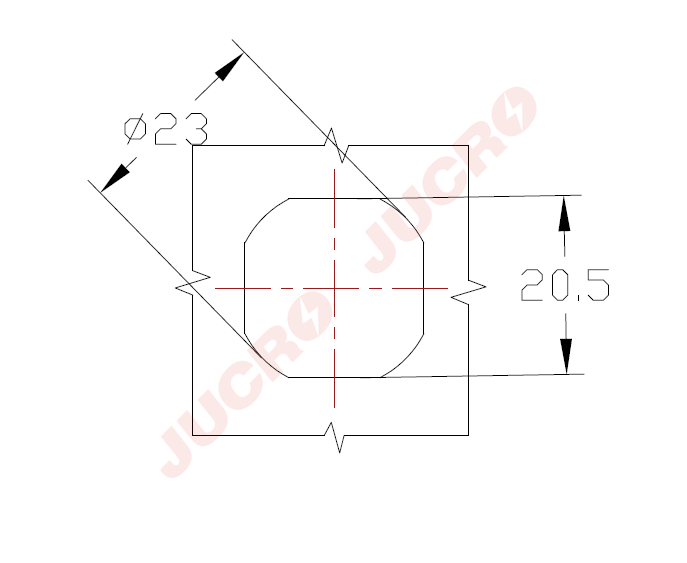

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm


No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base, Lock cylinder and handle, Carbon steel bolt

表面处理

Surface treatment

基座及手柄喷黑漆,钢栓镀白锌

Black spray paint for base and handle, white zinc plating for steel bolt.

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock

备 注

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

220N

***输入扭矩

Maximum input torque

15Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm


外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
