Handle HL516-2A
特征说明 CHARACTERISTICS | |
材 质 Material | 铝合金 Aluminum alloy |

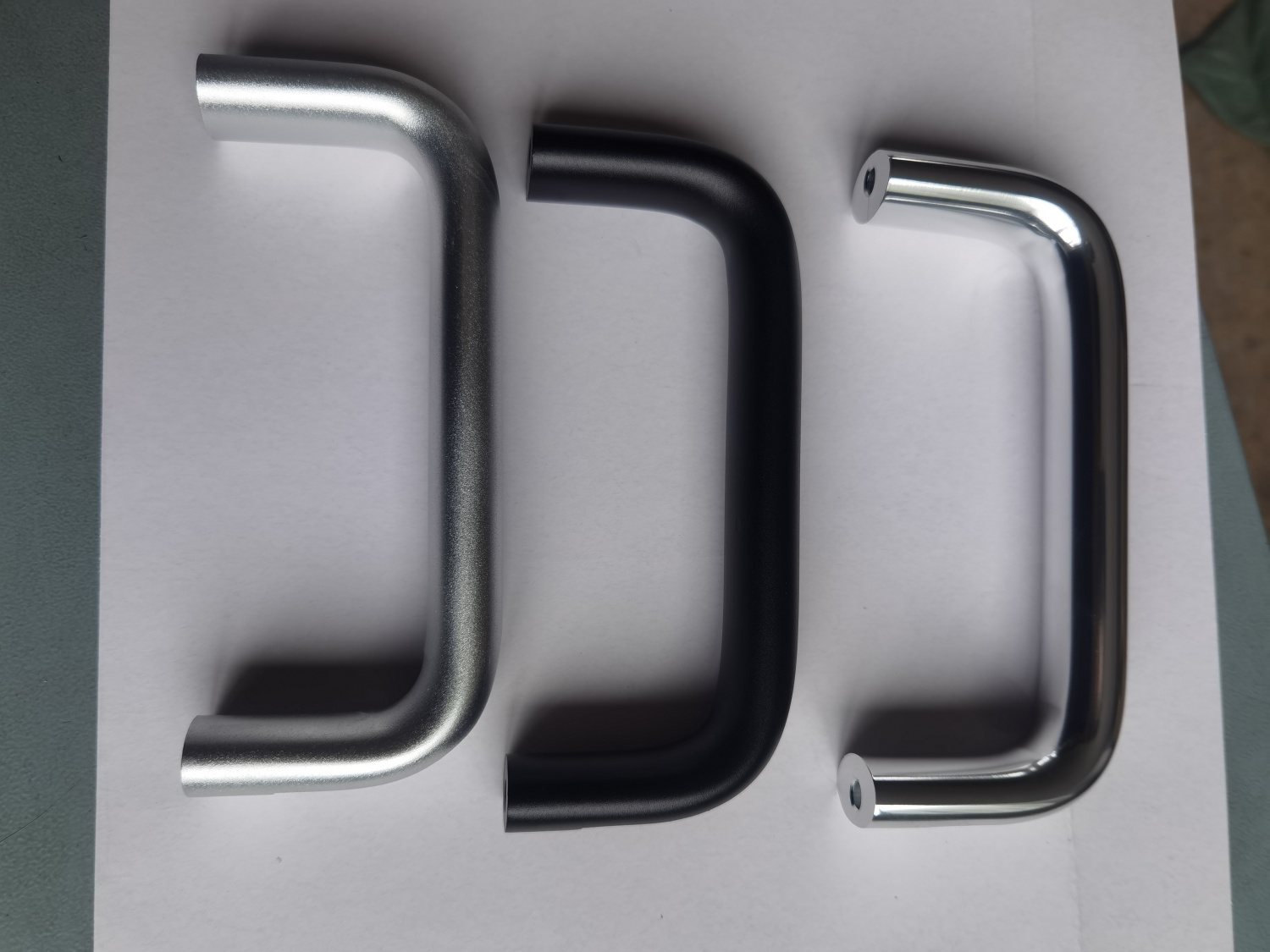

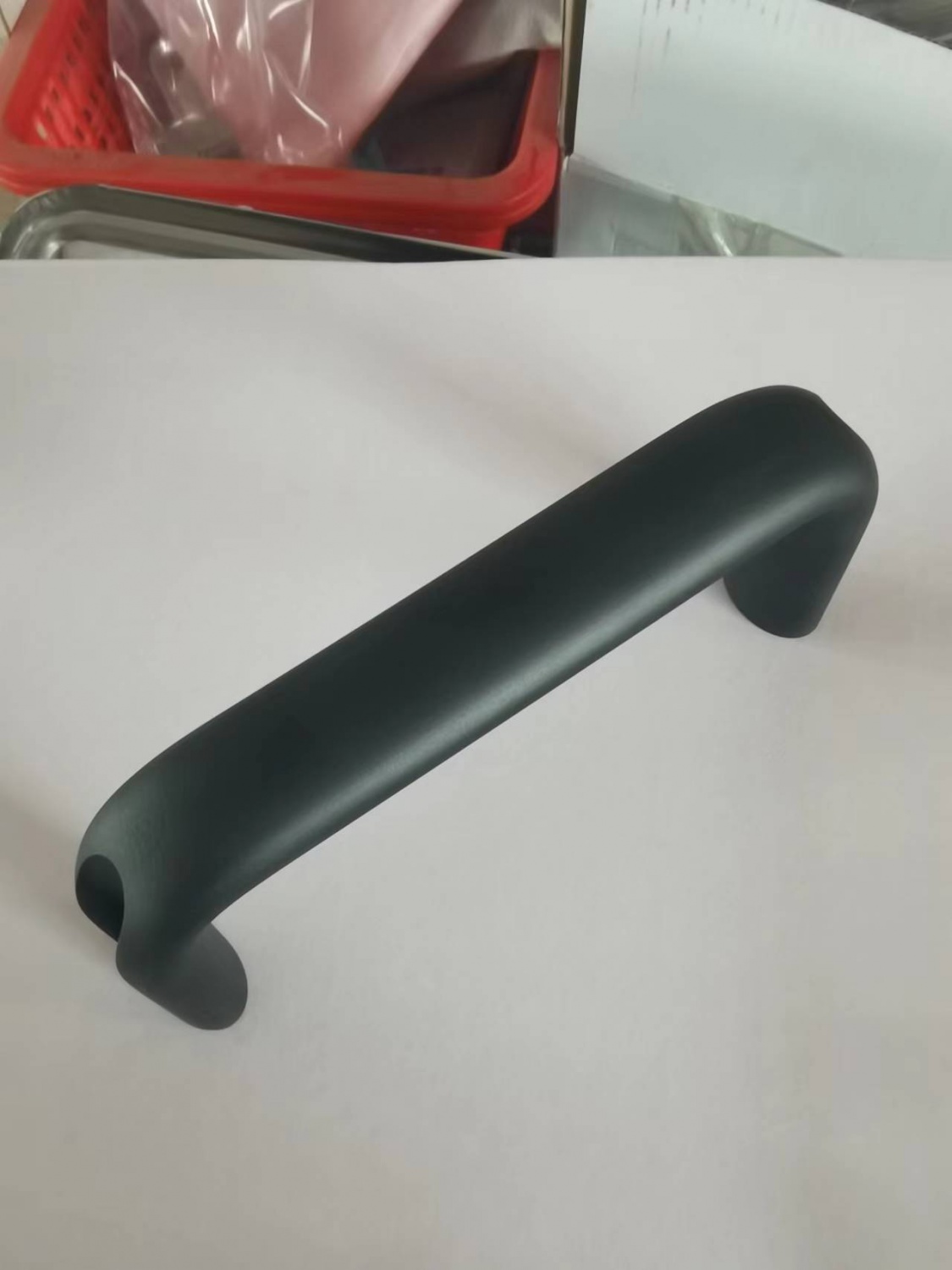

表面处理 Surface finished | 电镀氧化/喷黑/抛光 Plating oxidation / Black coating / Polishing |

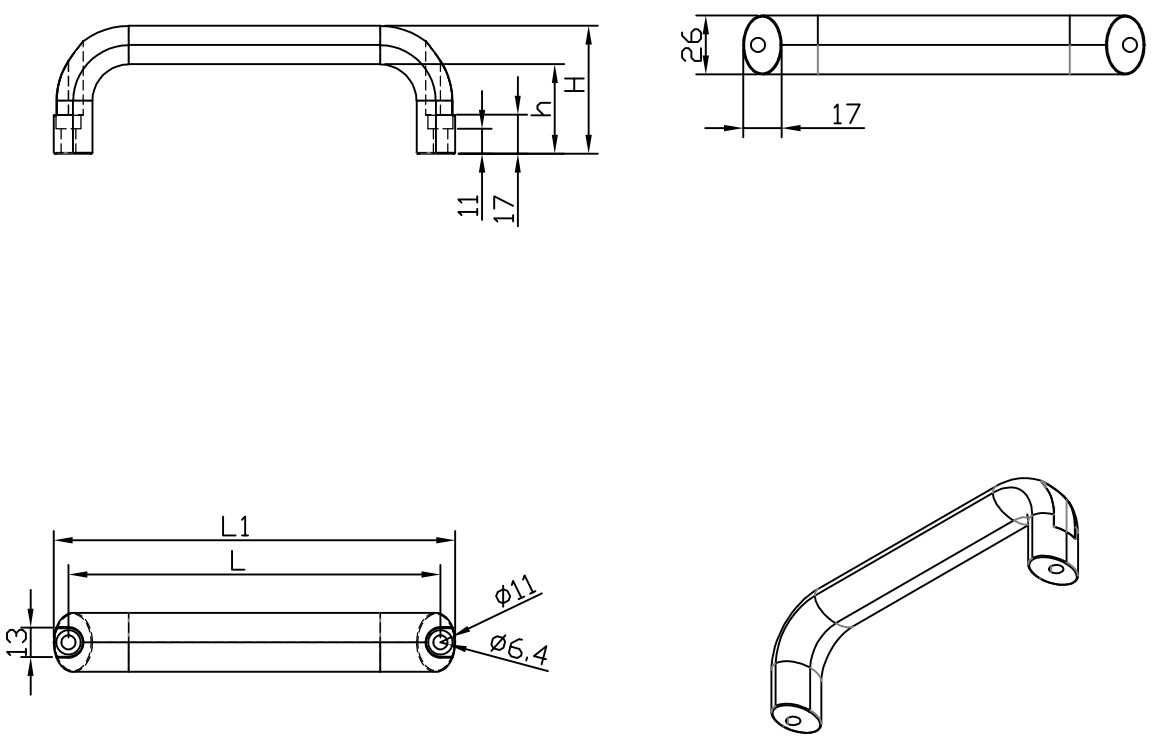

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm
型号 Model No. | 尺寸Dimension(mm) | 净 重 Net weight(g) | |||
L | L1 | H | h | ||
HL516-2A-100 | 100 | 114 | 47 | 30 | 124 |
HL516-2A-116 | 116 | 130 | 53 | 36 | 144 |
HL516-2A-132 | 132 | 146 | 55 | 38 | 159 |
HL516-2A-150 | 150 | 164 | 67 | 50 | 185 |
HL516-2A-164 | 164 | 178 | 57 | 40 | 190 |
HL516-2A-196 | 196 | 210 | 57 | 40 | 230 |
