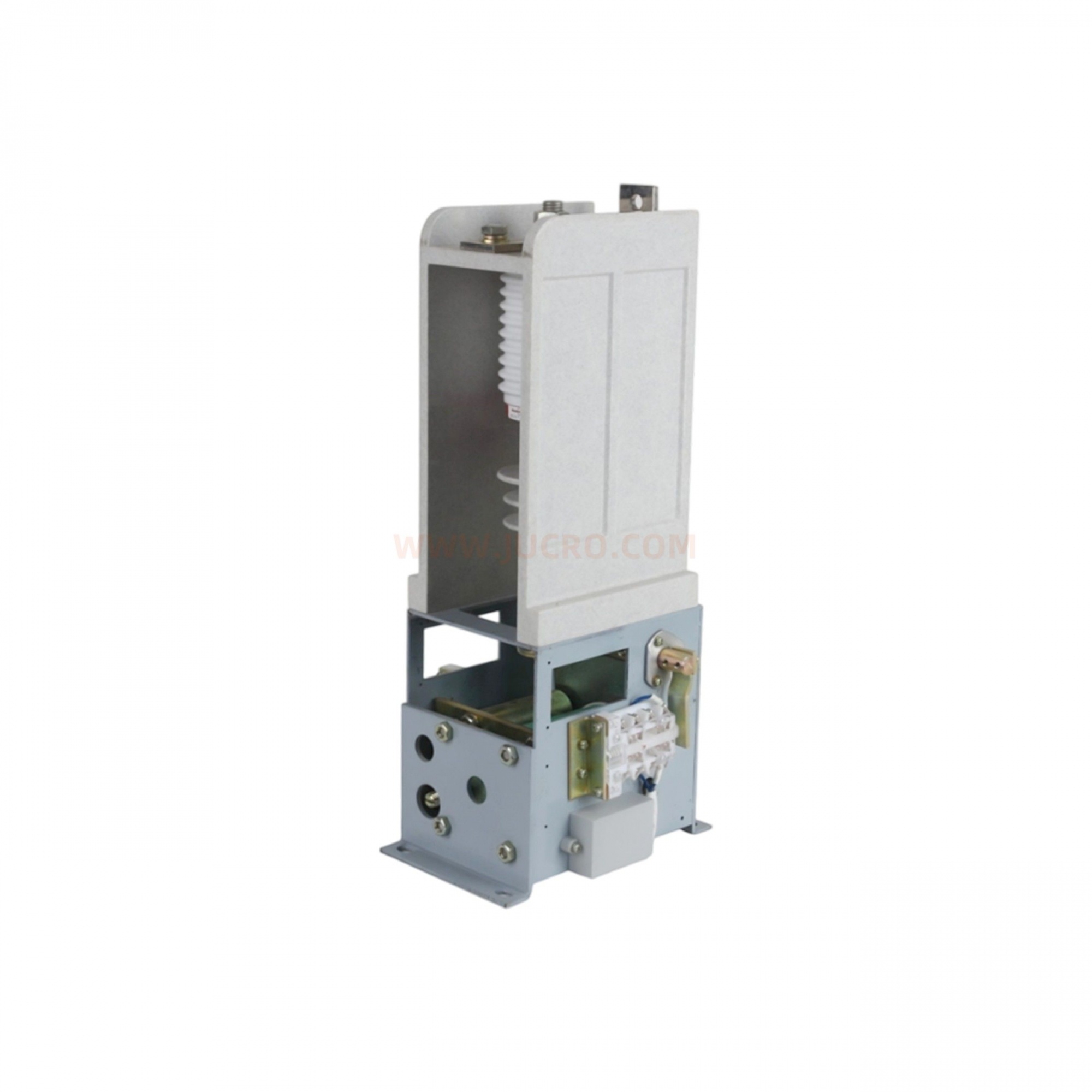

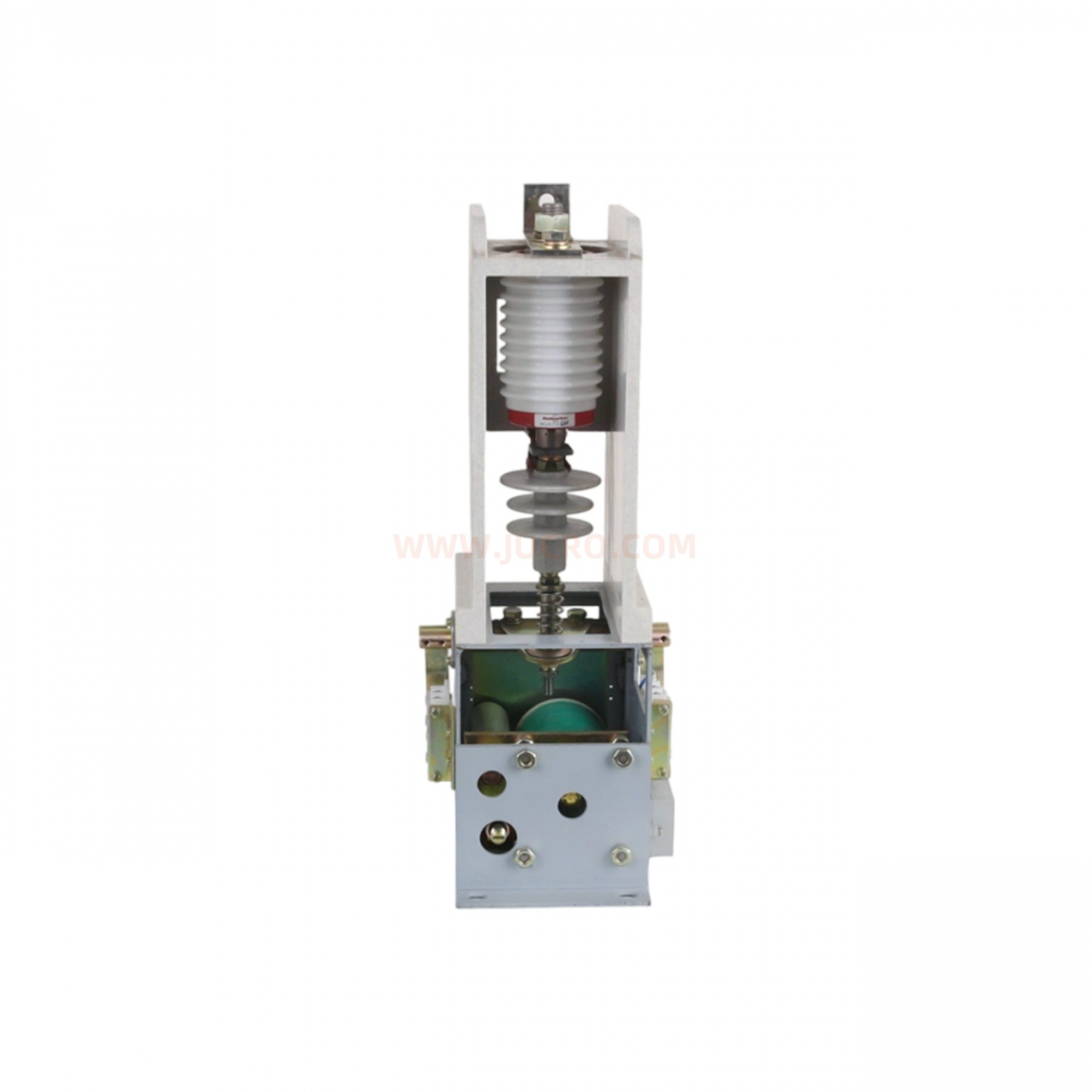

HVJ3-7.2/160/250/400/630-S

产品参数MAIN TECHNICAL PARAMETERS

型号 Model	额定电压（工频）(V) Rated voltage (V)		额定电流（主电路） Rated current （Main circuit） (A)	Parameter of main contacts 主触头参数			工频耐压（有效值） Power frequency Withstand voltage (effeCTive value) (V)
	主电路 Main Circuit	控制电路 Control circuit		开距 Opening Clearance (mm)	超程 Over travel (mm)	终压力 Final Pressure (N)
	主电路 Main Circuit	控制电路 Control circuit		开距 Opening Clearance (mm)	超程 Over travel (mm)	终压力 Final Pressure (N)	主电路 Main Circuit	辅助电路 Auxiliary Circuit	控制电路 Control Circuit
HVJ3-7.2/160-S	7200	380/220/110/24	160	3.5±0.3	2±0.2	>85N	32000	2500	2000
HVJ3-7.2/250-S	7200	380/220/110/24	250	3.5±0.3	2±0.2	>85N	32000	2500	2000
HVJ3-7.2/400-S	7200	380/220/110/24	400	3.5±0.3	2±0.2	>85N	32000	2500	2000
HVJ3-7.2/630-S	7200	380/220/110/24	630	3.5±0.3	2±0.2	>85N	32000	2500	2000

型号 Model	接通能力 Making capacity	分断能力 Breaking capacity	极限开断电流 Limit opening current(A)	过载能力 Overload	机械寿命 Mechanism life	重量 Weight(kg)
HVJ3-7.2/160-S	10In,100times	8In,25times	10In	8In,10s	1million times	13.8
HVJ3-7.2/250-S	10In,100times	8In,25times	10In	8In,10s	1million times	13.8
HVJ3-7.2/400-S	10In,100times	8In,25times	10In	8In,10s	1million times	13.8
HVJ3-7.2/630-S	10In,100times	8In,25times	10In	8In,10s	1million times	14.3
