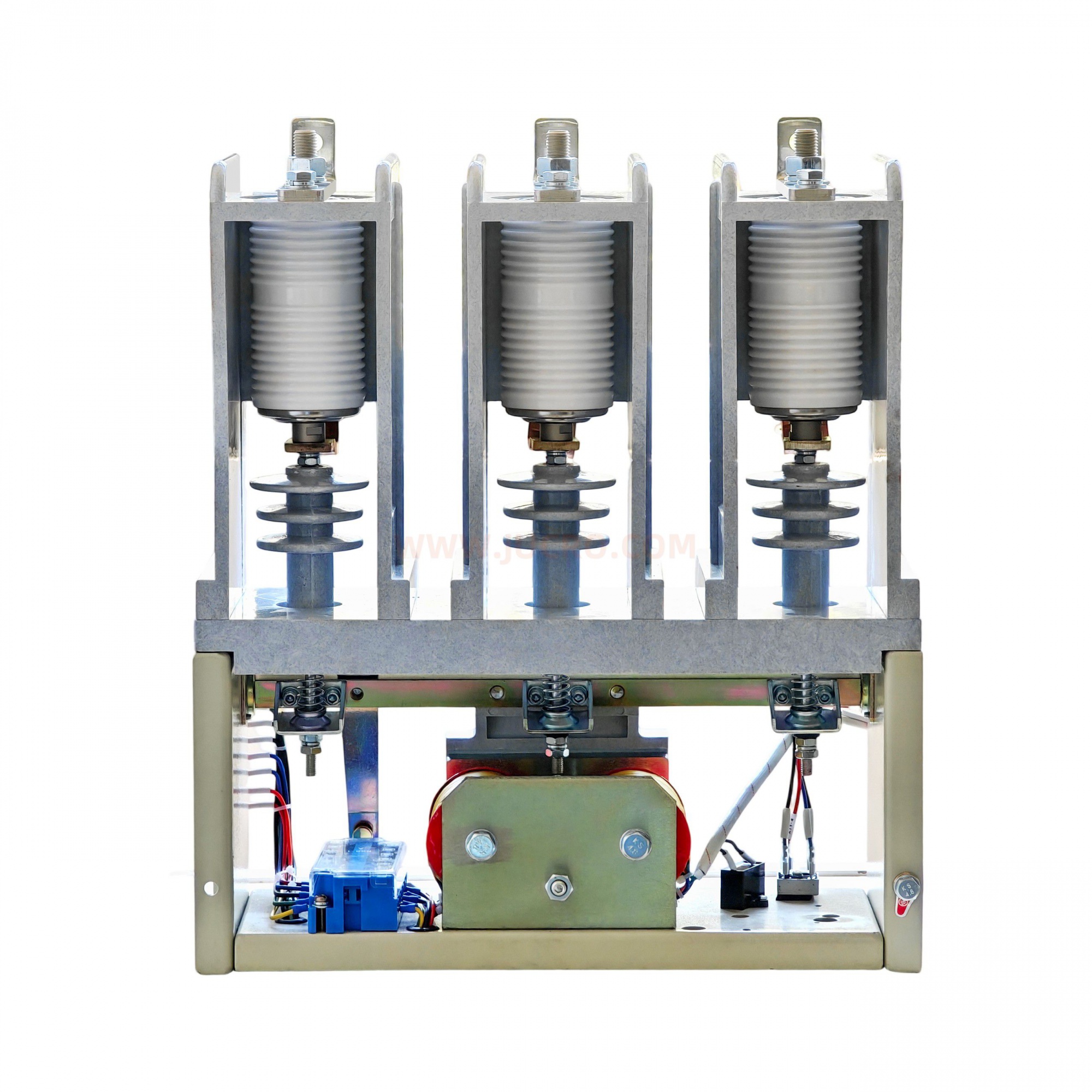

HVJ3-12/160/250/400/630

产品主要参数 Main technical parameters

Model 产品型号	Rated voltage(v) 额定电压 (V)		Rated current （Main circuit）额定电流（主回路）(A)	Parameter of main contaCTs 主触头参数			Power frequency Withstand voltage V (effective value) 工频耐压V(有效值)
	Main Circuit 主回路	Control Circuit 控制回路		Clearance 开距 (mm)	Over travel 超程(mm)	Pressure 终压力 (N)
	Main Circuit 主回路	Control Circuit 控制回路		Clearance 开距 (mm)	Over travel 超程(mm)	Pressure 终压力 (N)	Main circuit	Auxiliary circuit	Control circuit
HVJ3-12/160	12000	220/110/380	160	5±0.5	2±0.2	>85N	42000	2500	2000
HVJ3-12/250	12000	220/110/380	250	5±0.5	2±0.2	>85N	42000	2500	2000
HVJ3-12/400	12000	220/110/380	400	5±0.5	2±0.2	>85N	42000	2500	2000
HVJ3-12/630	12000	220/110/380	630	5±0.5	2±0.2	>85N	42000	2500	2000

Model 产品型号	Making capacity 接通能力	Breaking capacity 分断能力	Limit opening current 极限开断电流(A)	Overload 过载能力	Mechanism life 机械寿命	Weight 重量(kg)
HVJ3-12/160	10Ie,100times	8Ie,25times	10Ie	8Ie,10s	1million times	30
HVJ3-12/250	10Ie,100times	8Ie,25times	10Ie	8Ie,10s	1million times	30
HVJ3-12/400	10Ie,100times	8Ie,25times	10Ie	8Ie,10s	1million times	32
HVJ3-12/630	10Ie,100times	8Ie,25times	10Ie	8Ie,10s	1million times	32
