特征说明 CHARACTERISTICS | |

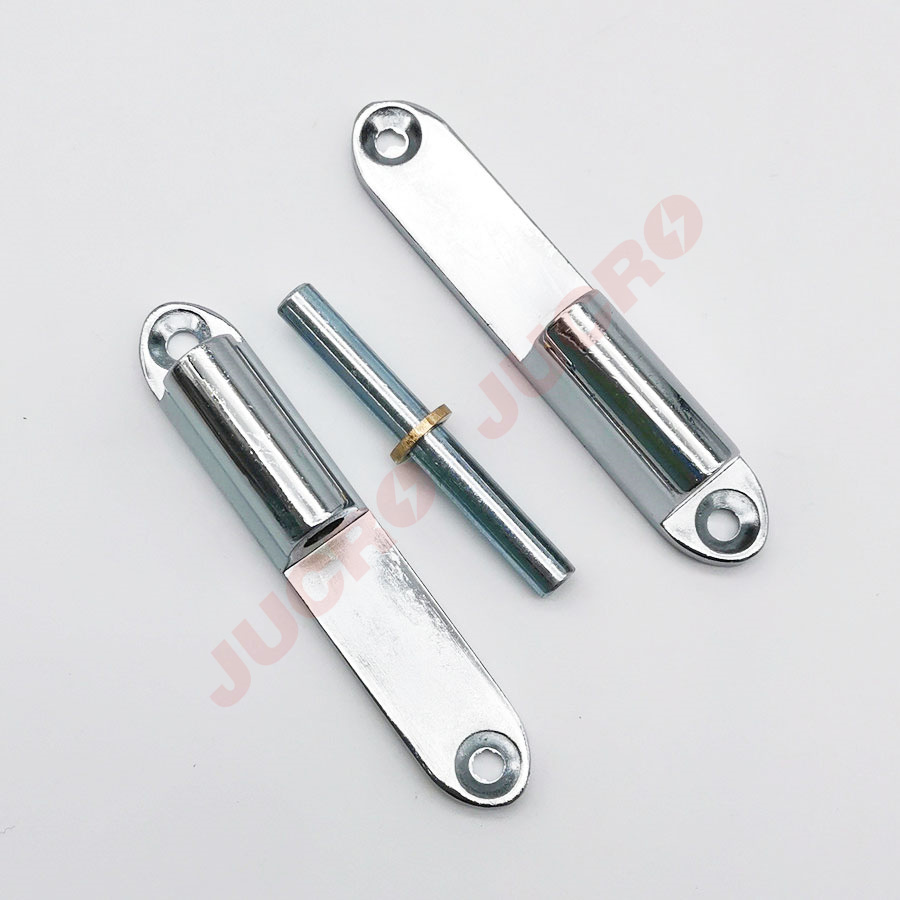

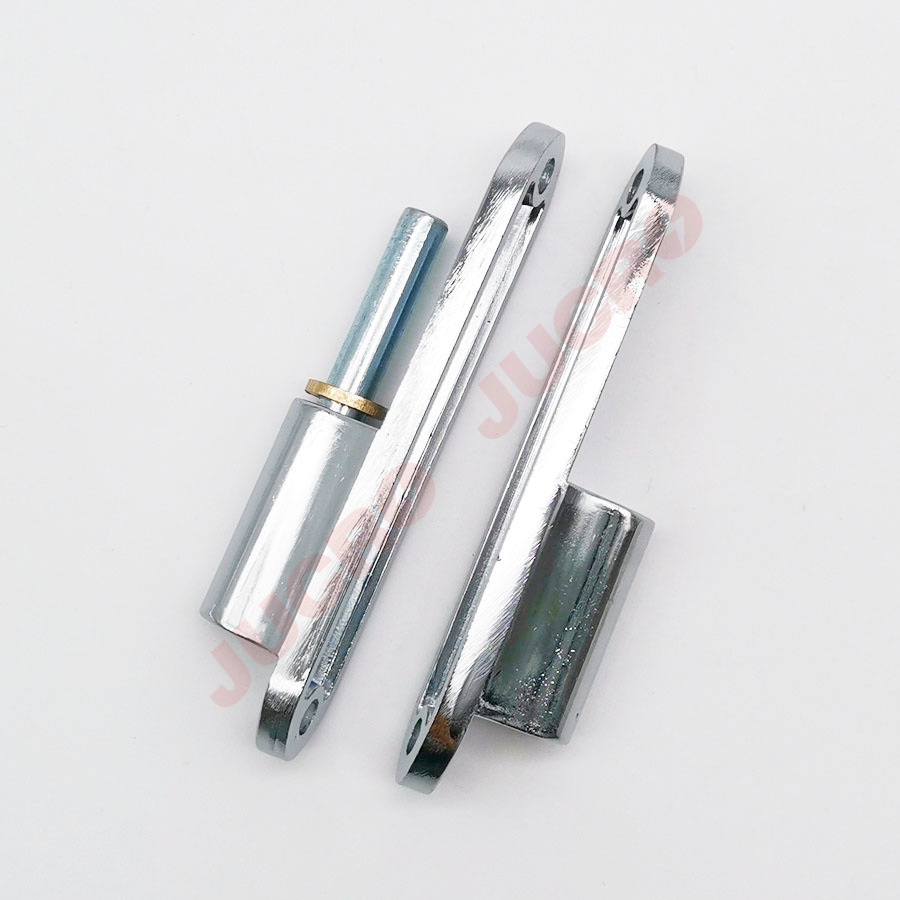

材 质 Material | 锌合金铰链,碳钢销子,铜垫片 Zinc alloy Hinge,carbon steel pin, copper shim |
表面处理 Surface treatment | 镀亮光铬,销子镀蓝白锌 Bright chrome plated, blue white zinc plated for pin |
结构说明 Structure descriPTion | 可开启角度180° Opening angle 180° |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 Maximum static load | 330N |
轴向载荷 Maximum input torque | 760N |

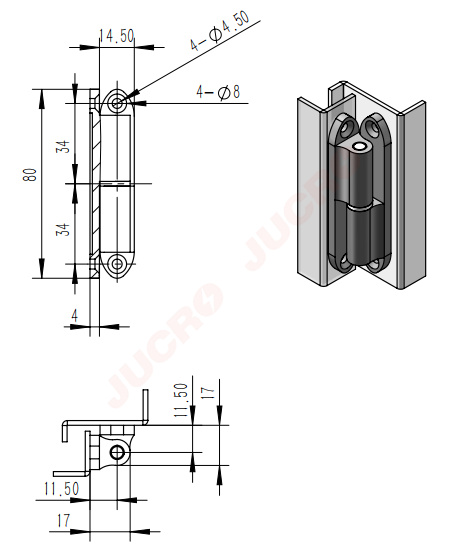

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
