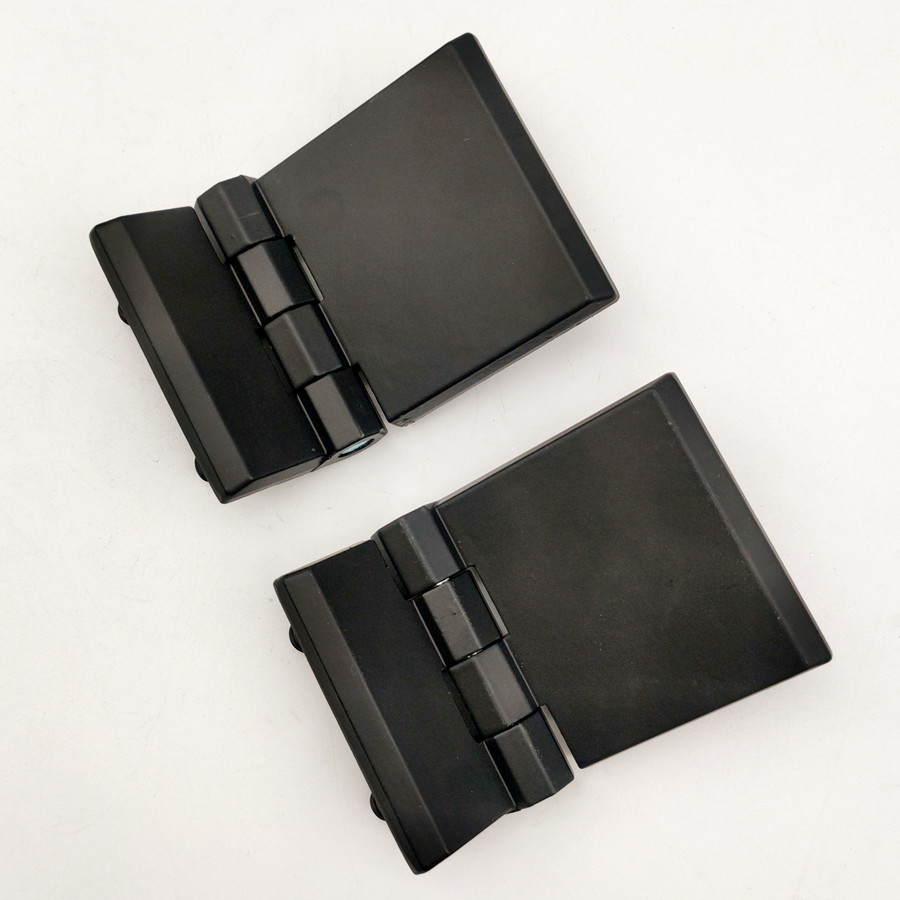

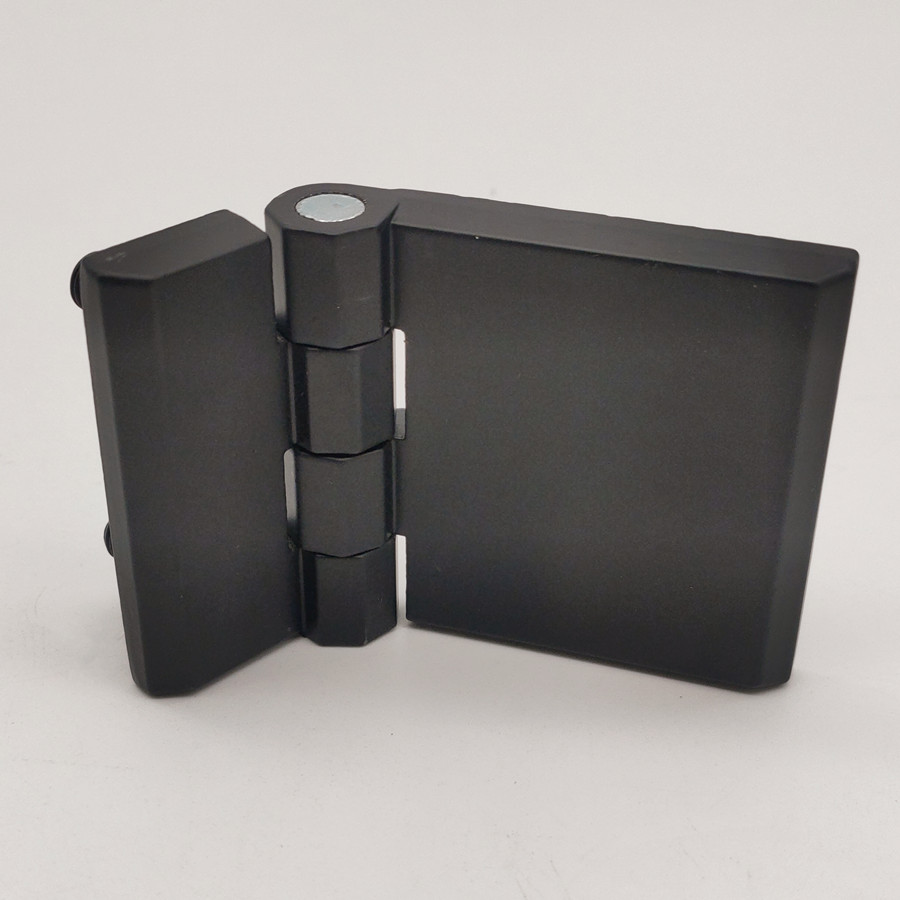

HINGE (JH226-4-1A)
特征说明 CHARACTERISTICS | |
材质 Material | 锌合金铰链，碳钢销子及螺丝 Zinc alloy Hinge, carbon steel pin and screw |
表面处理 Surface treatment | 喷漆黑色 Black spray paint |
结构说明 Structure descriPTion | 可开启角度180° 180 degree rotation |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 Radial load | 1120N |
轴向载荷 Axial load | 1200N |
备注：以上数据为***静载荷。
Remark: The above data is maximum static load.

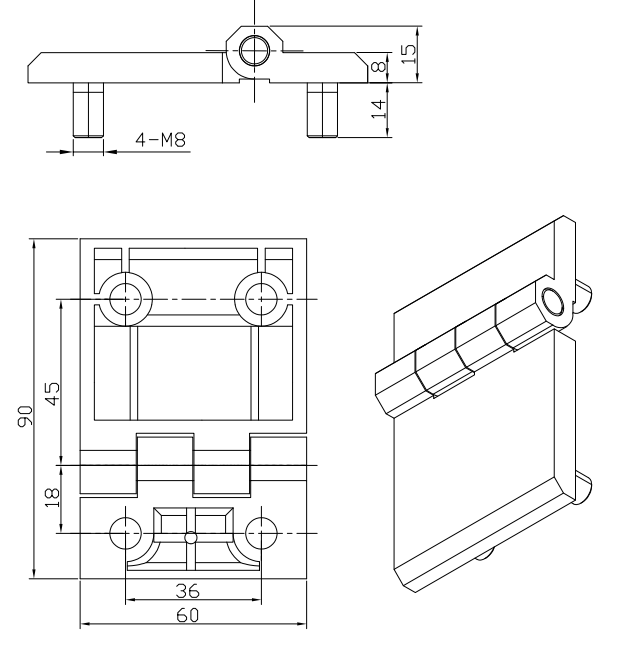

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
