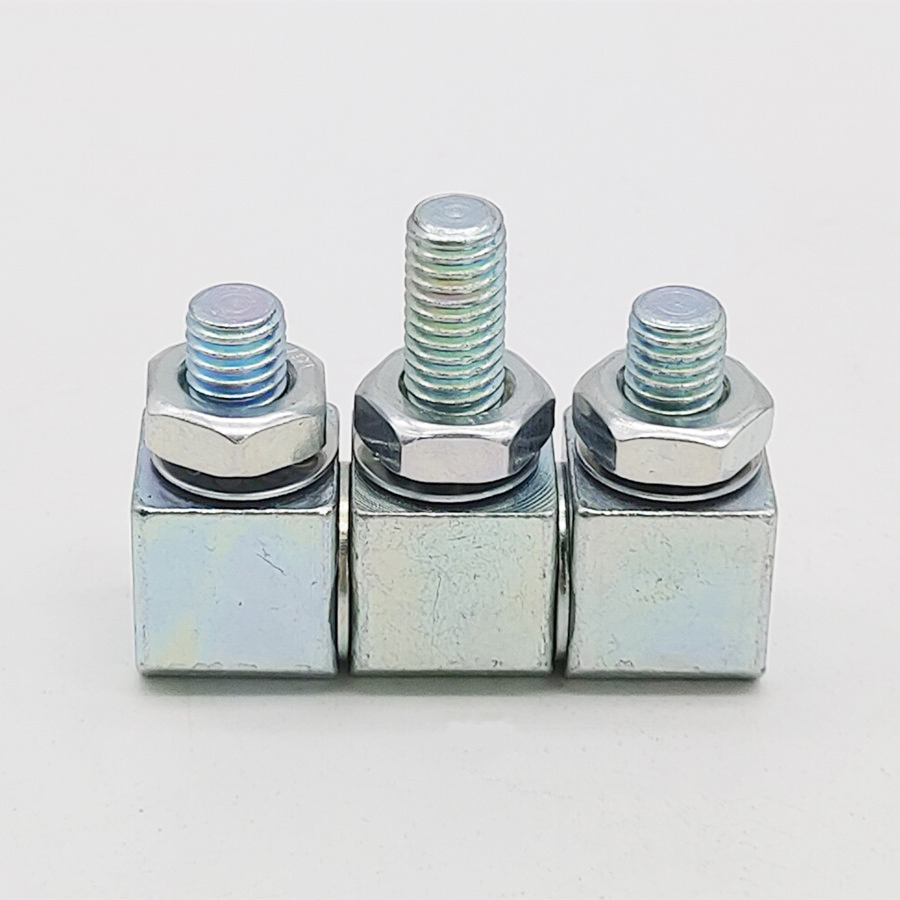

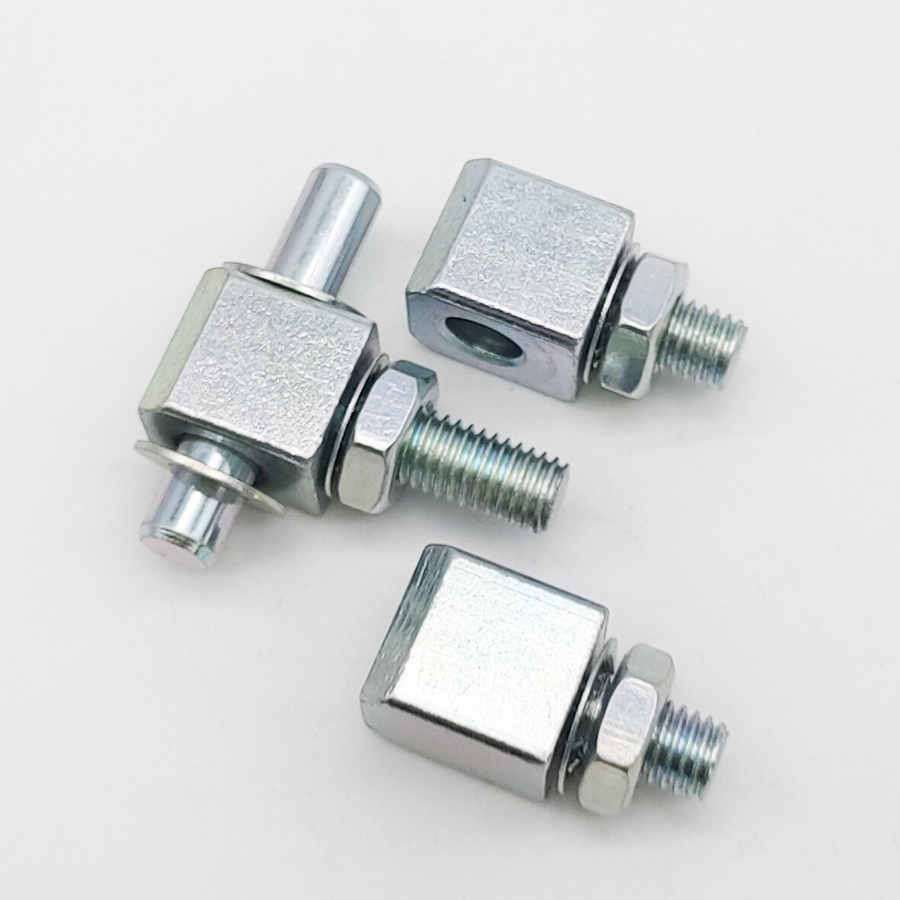

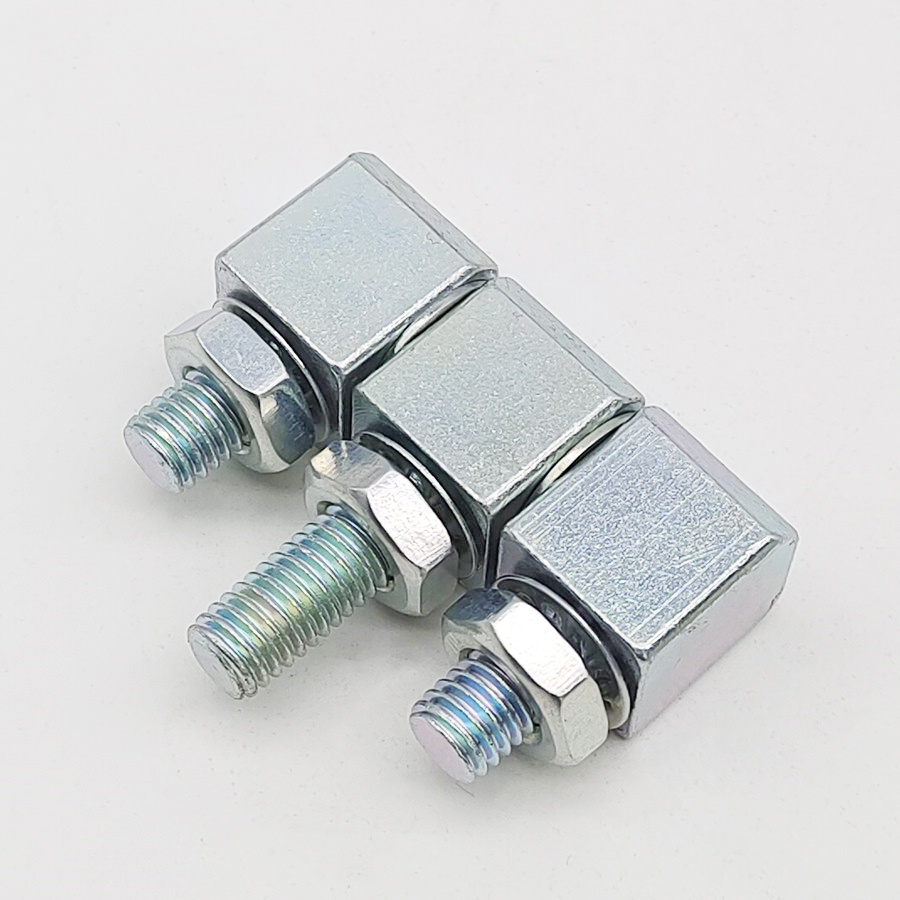

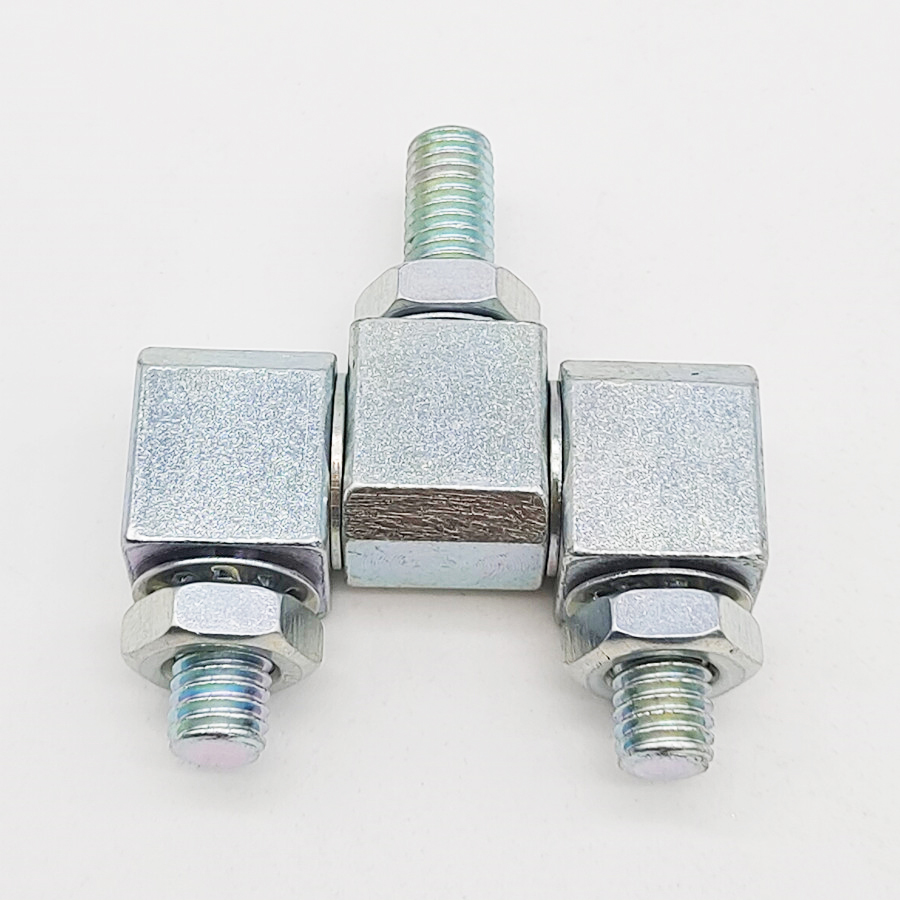

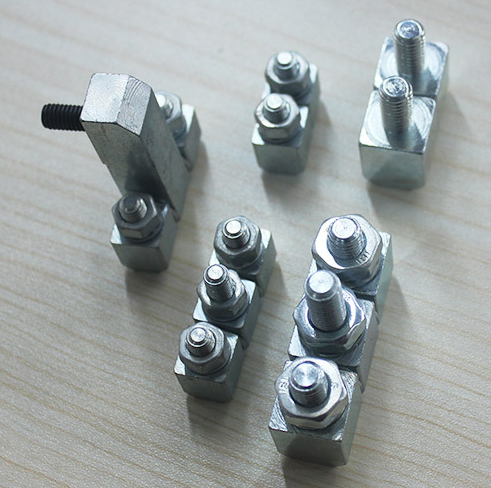

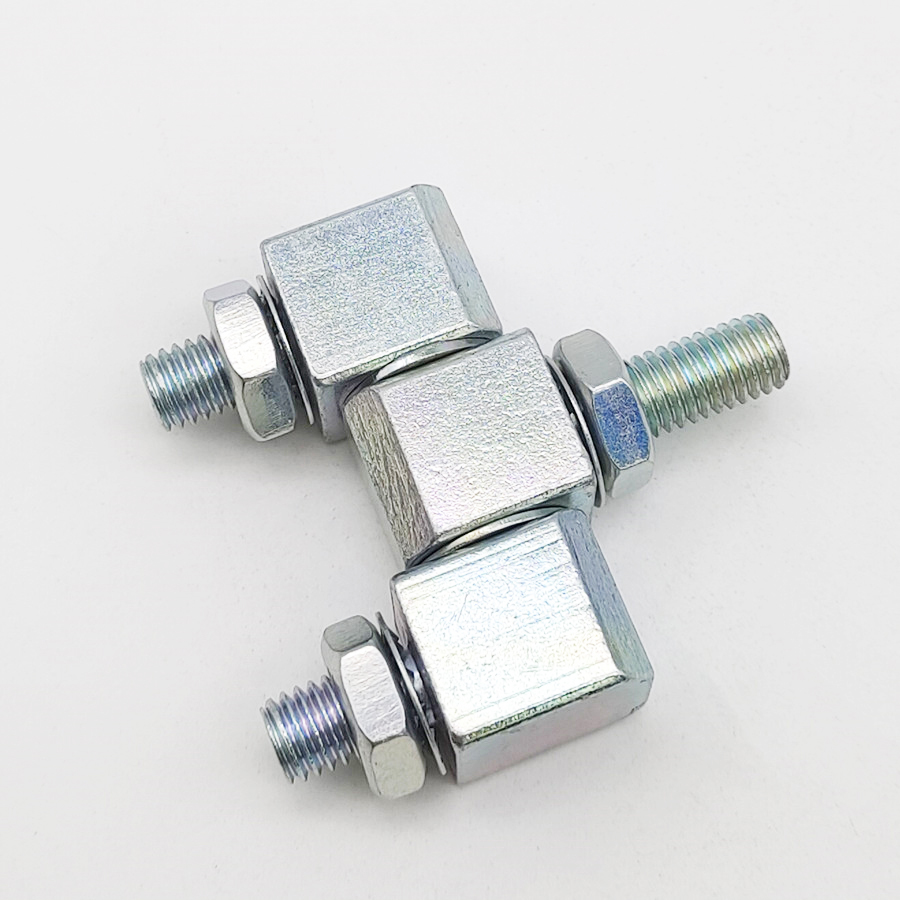

HINGE (JH2206)
特征说明 CHARACTERISTICS | ||
材质 Material | 镀锌钢 Galvanized steel | 不锈钢 |
结构说明 Structure descriPTion | 三件式/两件式 Three-piece/Two piece | |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 Radial load | 2000 N |
轴向载荷 Axial load | 1500 N |
备注：以上数据为***静载荷。
Remark: The above data is maximum static load.

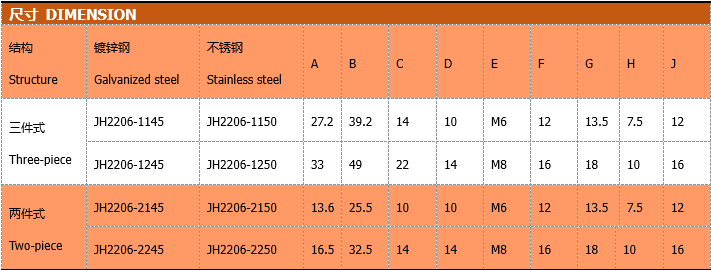

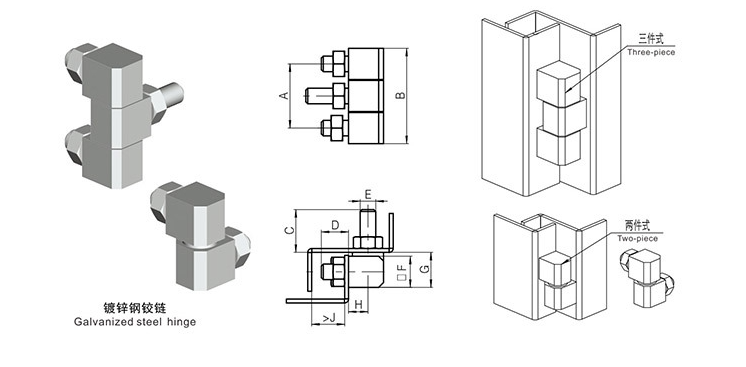

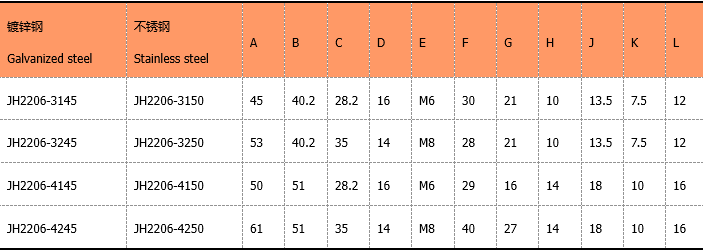

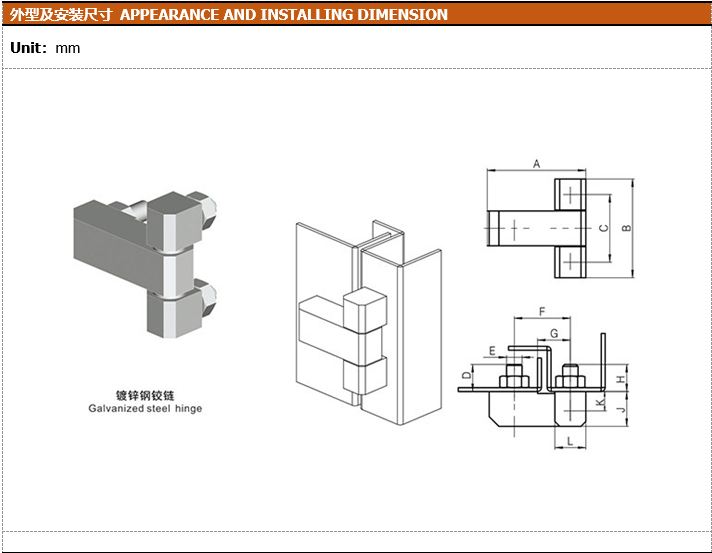

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
