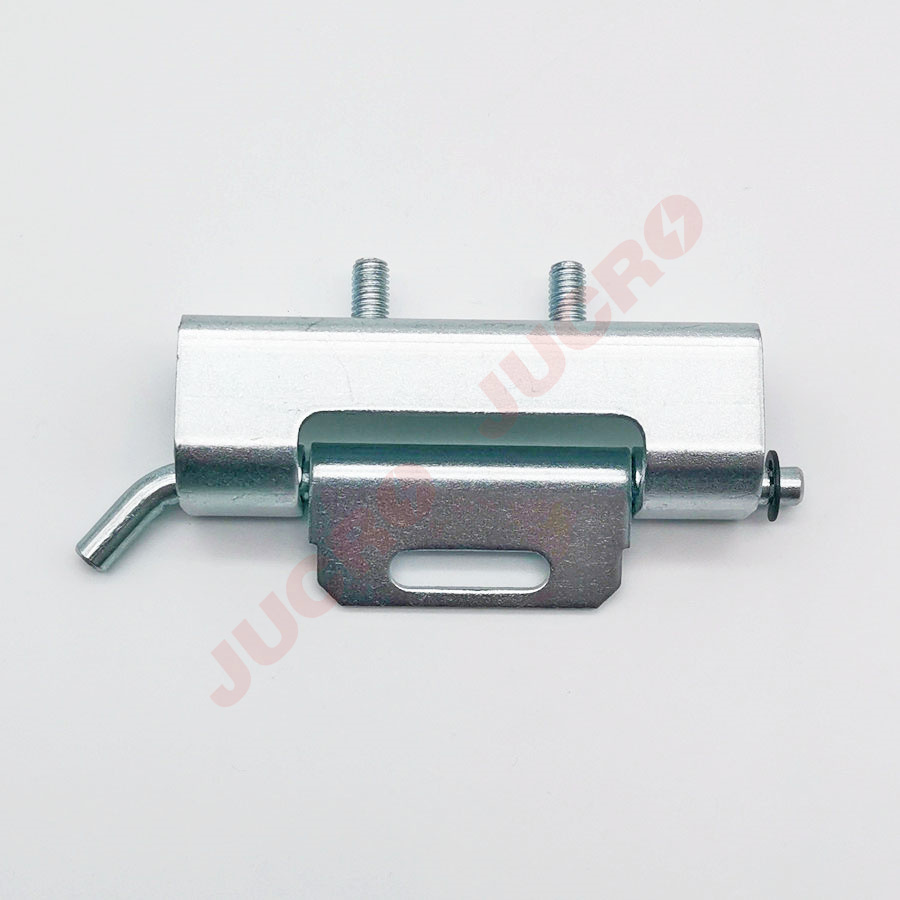

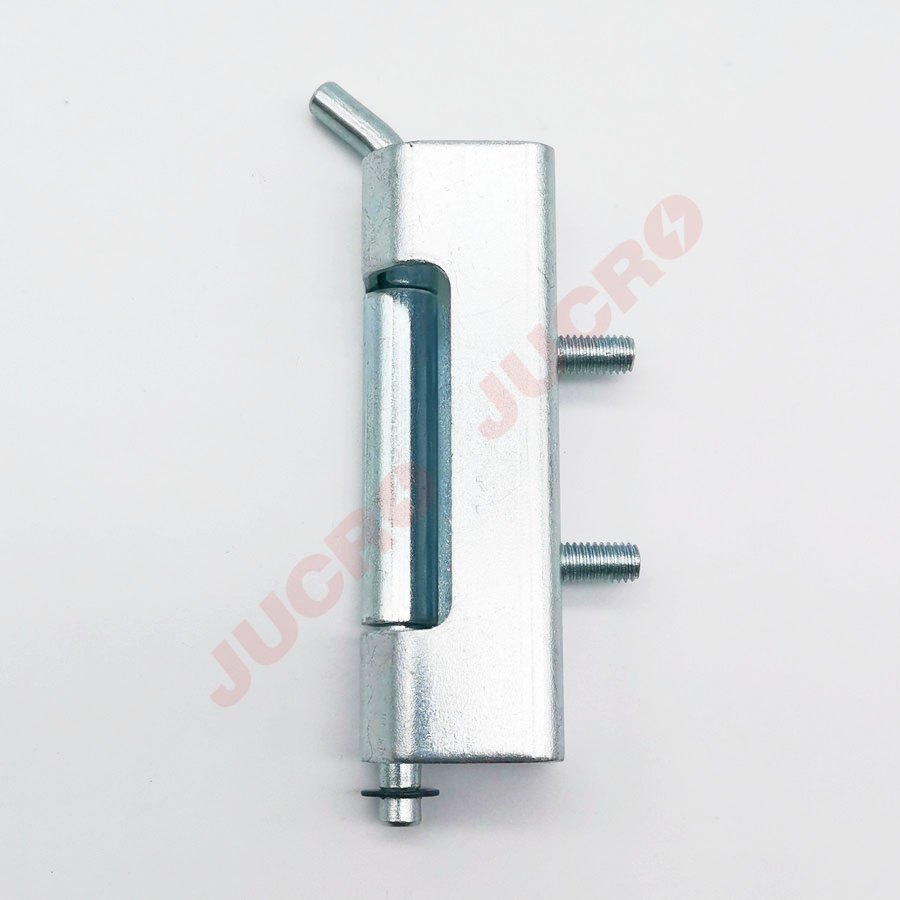

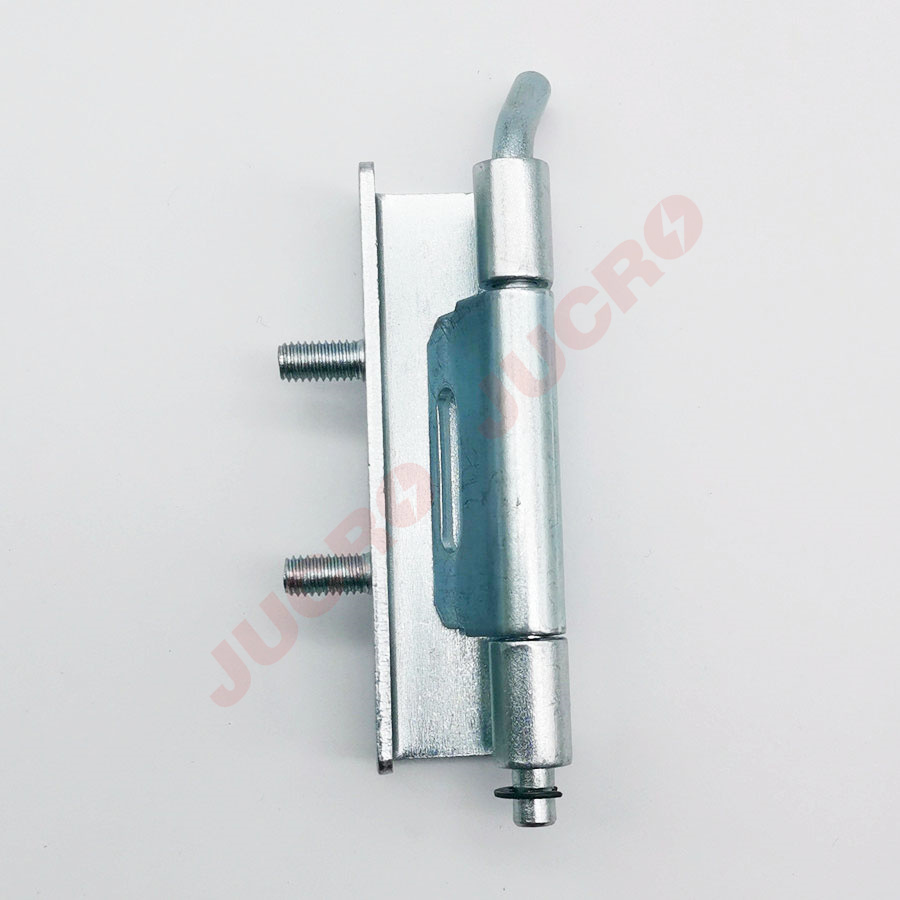

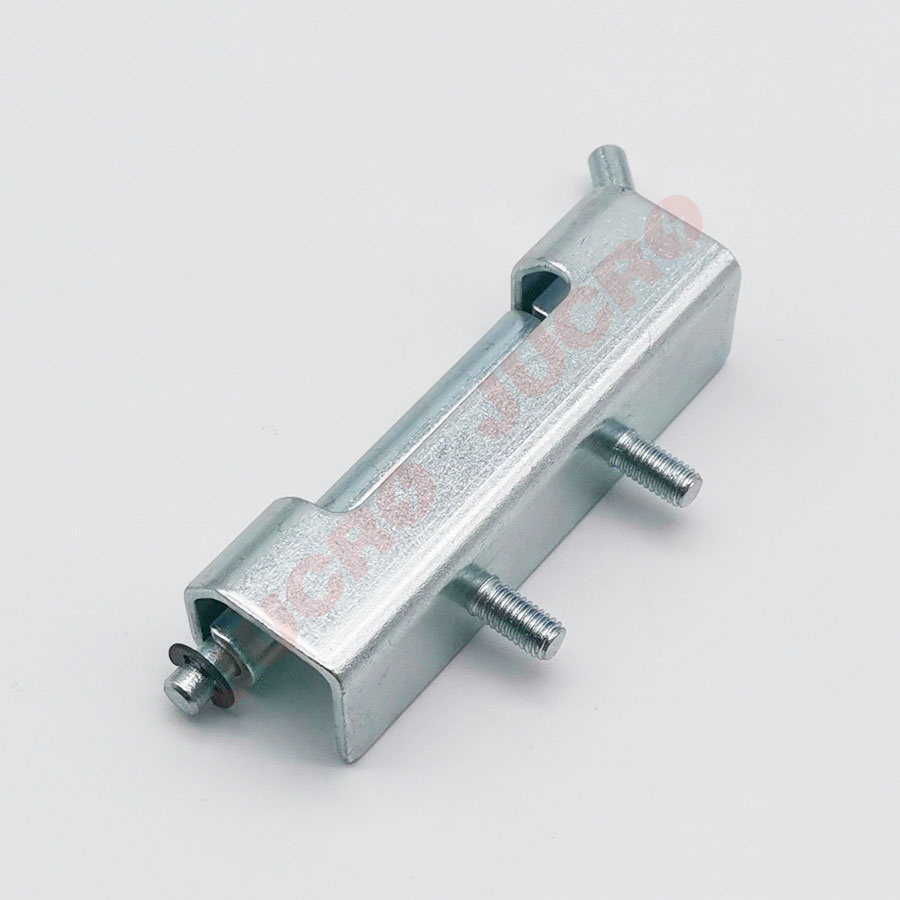

HINGE (JH092-2)

HINGE (JH092-2)

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

碳钢铰链、销子

Carbon steel Hinge and pin

表面处理

Surface treatment

镀蓝白锌

Blue white zinc plated

结构说明

Structure descriPTion

可开启角度140°

Opening angle 140°



性能参数 PERFORMANCE PARAMETERS

径向载荷

Maximum static load

410 N

轴向载荷

Maximum input torque

785 N

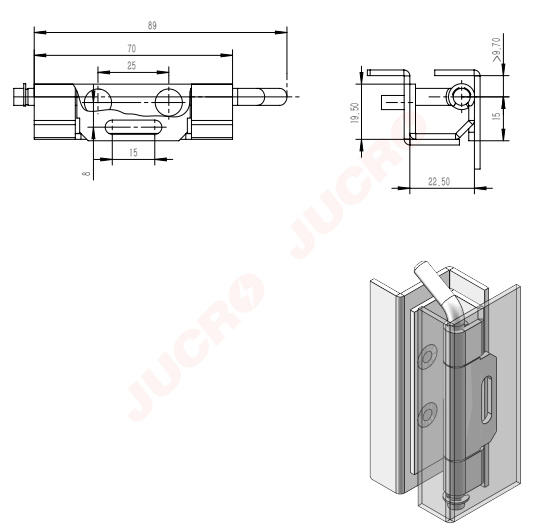

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

碳钢铰链、销子

Carbon steel Hinge and pin

表面处理

Surface treatment

镀蓝白锌

Blue white zinc plated

结构说明

Structure descriPTion

可开启角度140°

Opening angle 140°



性能参数 PERFORMANCE PARAMETERS

径向载荷

Maximum static load

410 N

轴向载荷

Maximum input torque

785 N



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
