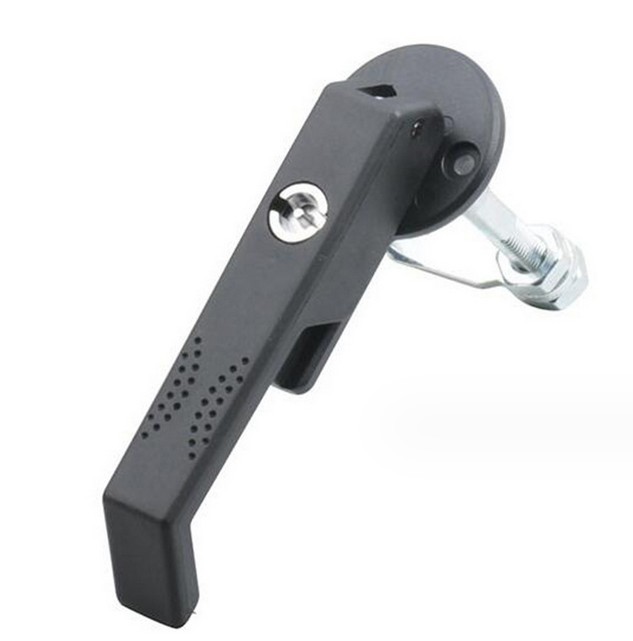

HANDLE LOCK (DL859)

特征说明 CHARACTERISTICS

Material

PA把手,锌合金基座,锁芯,碳钢转轴

PA handle, zinc alloy base and cylinder, carbon steel shaft

表面处理

Surface treatment

喷塑(黑麻面)基座,亮光铬锁芯,镀白锌转轴

Pitted black painted base, bright chrome plated cylinder, white zinc plated shaft

结构说明

Structure descriPTion

把手360°旋转,具有锁紧功能

Handle 360° rotation, with compression function

Remark


性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

220N

***输入扭矩

Maximum input torque

20Nm

手柄承载拉力

Handle load tension capability

105N

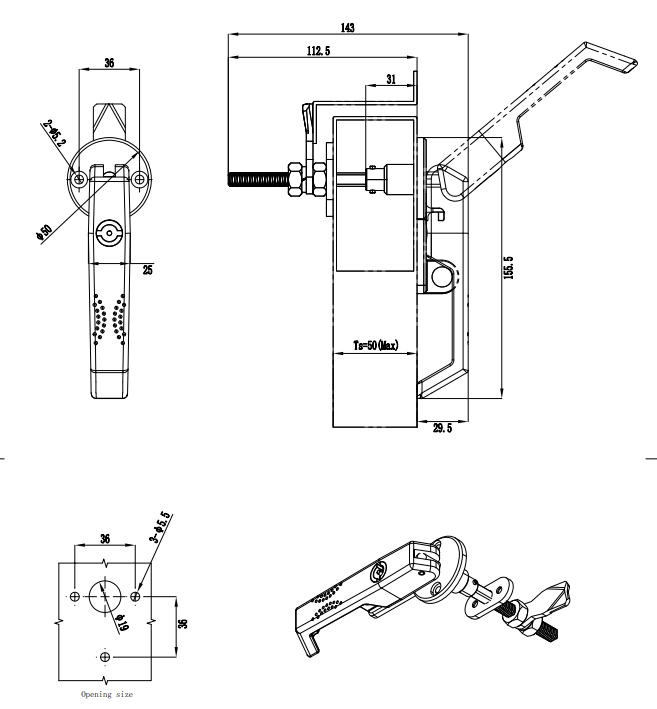

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

HANDLE LOCK (DL859)
