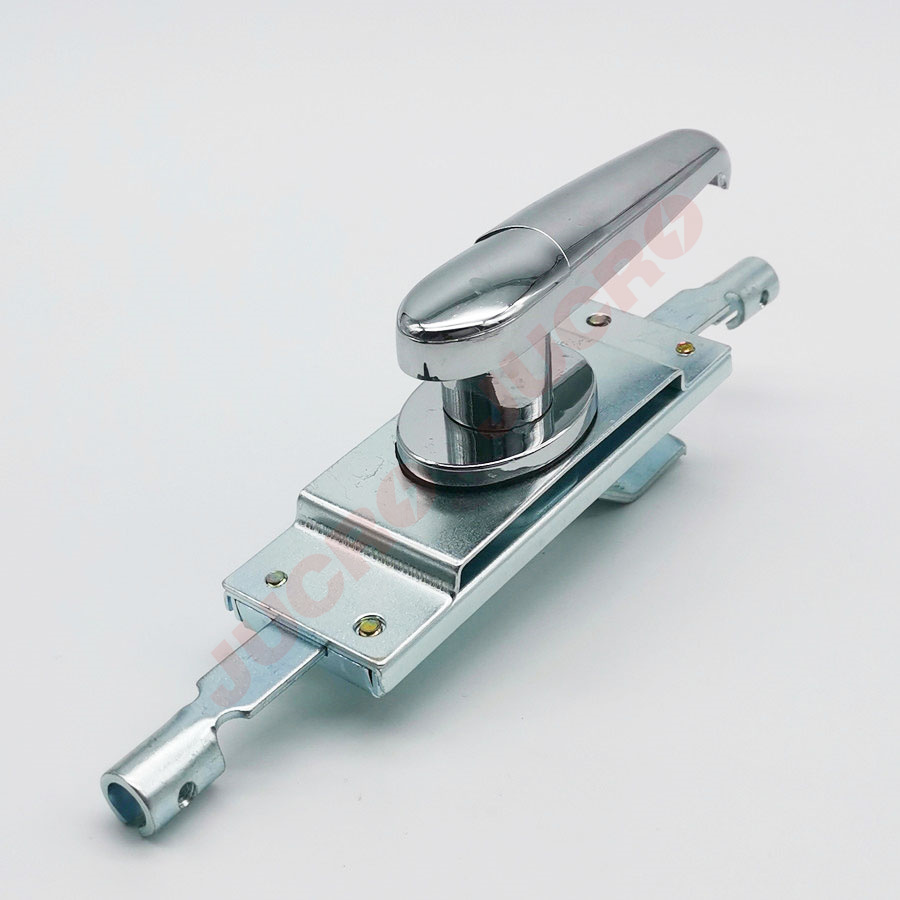

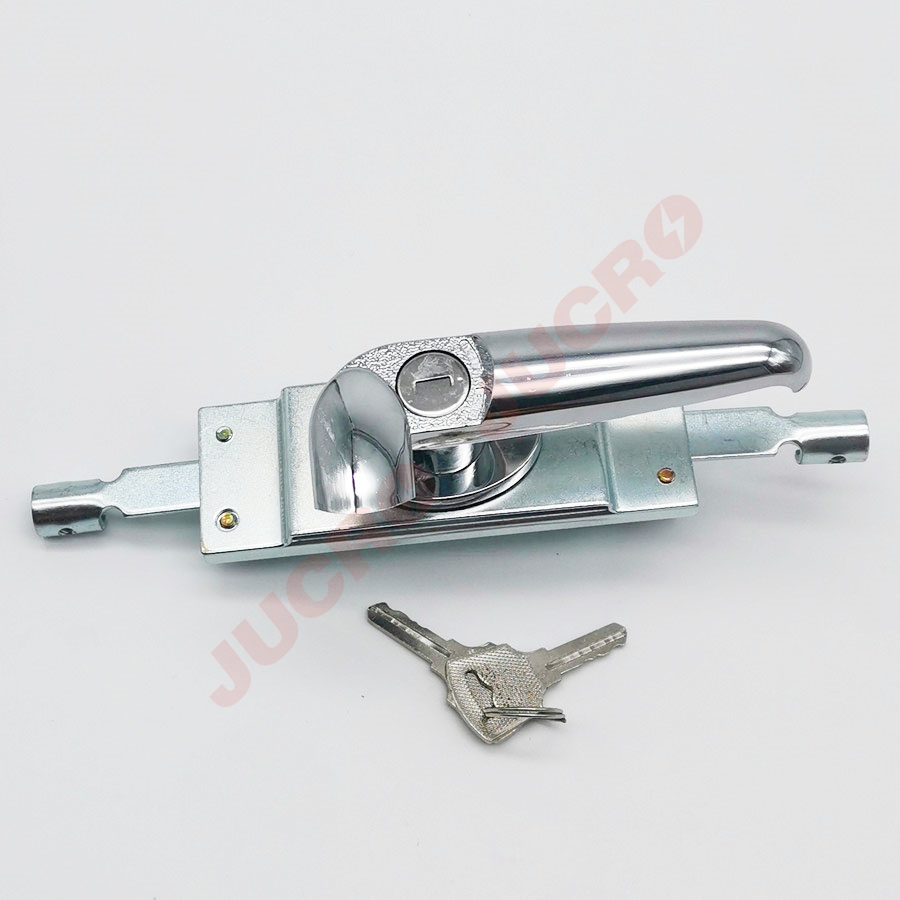

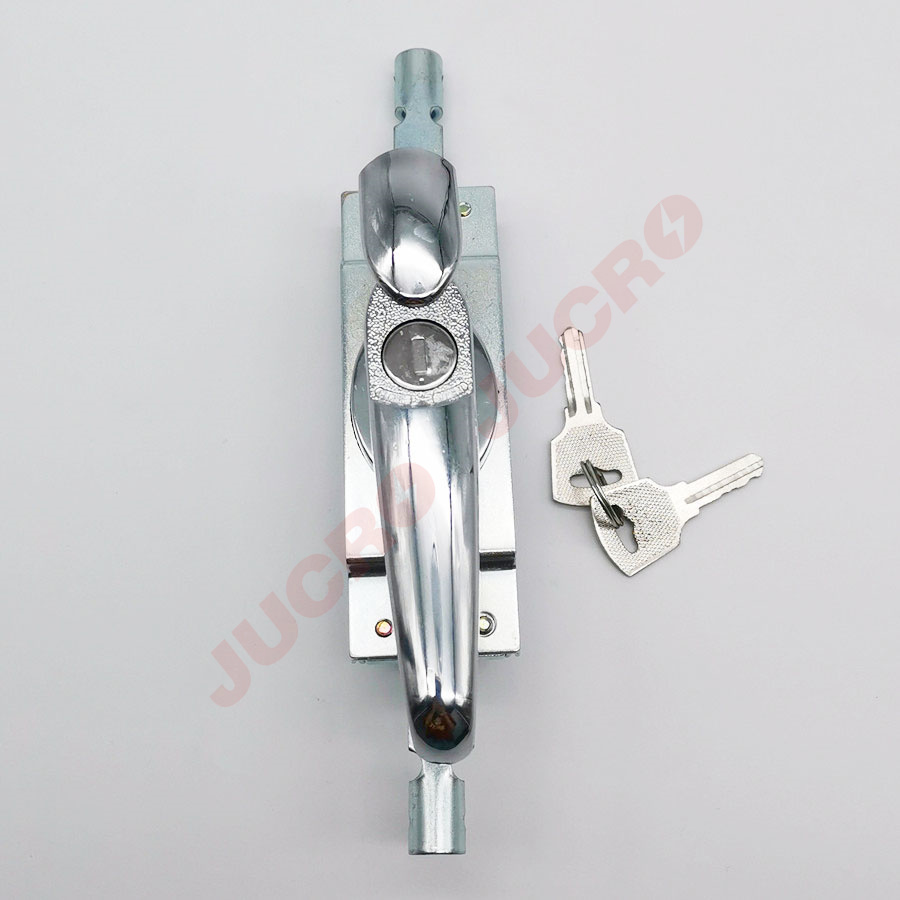

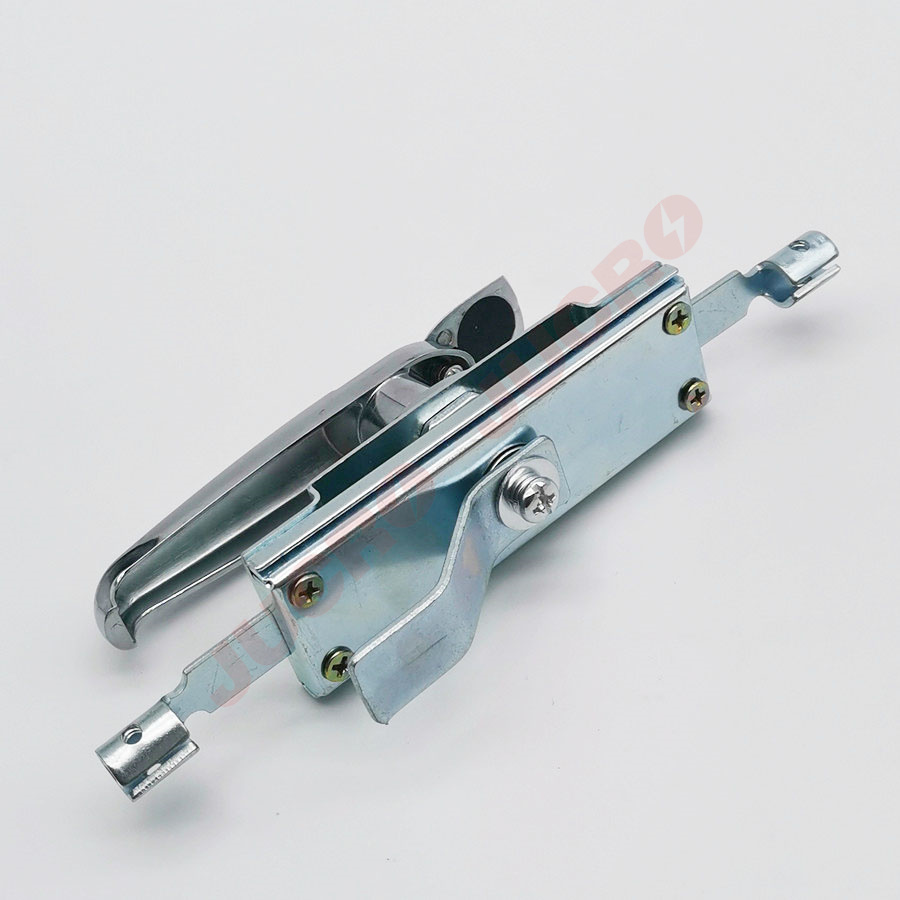

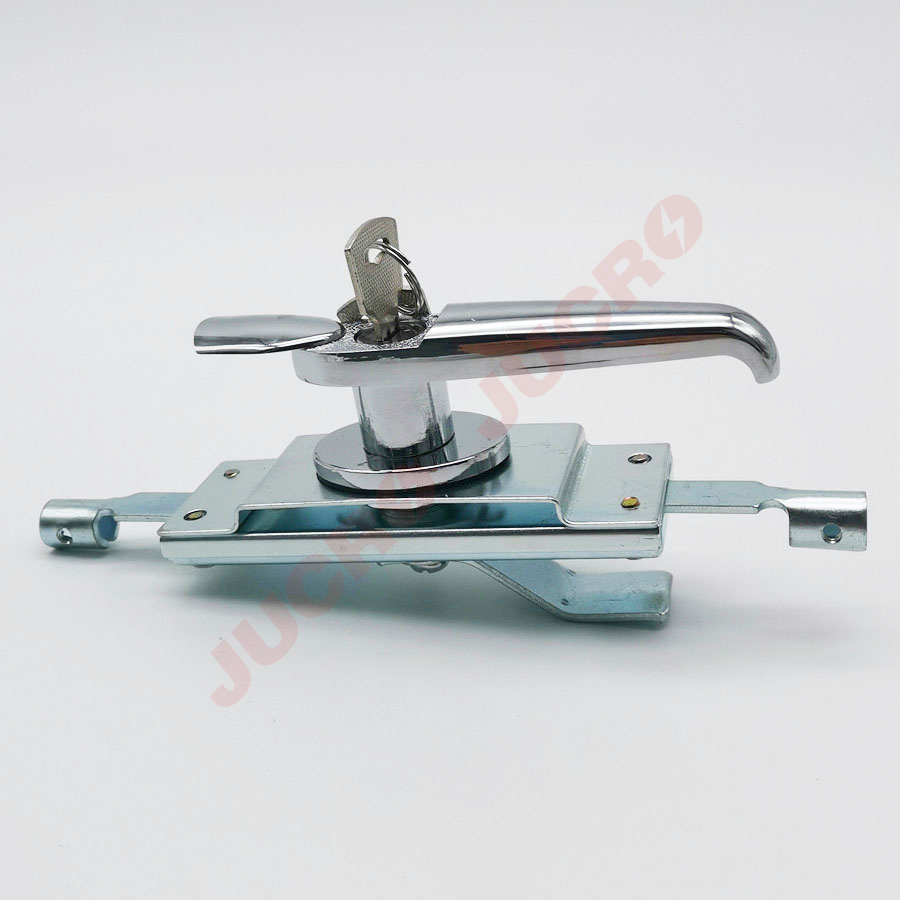

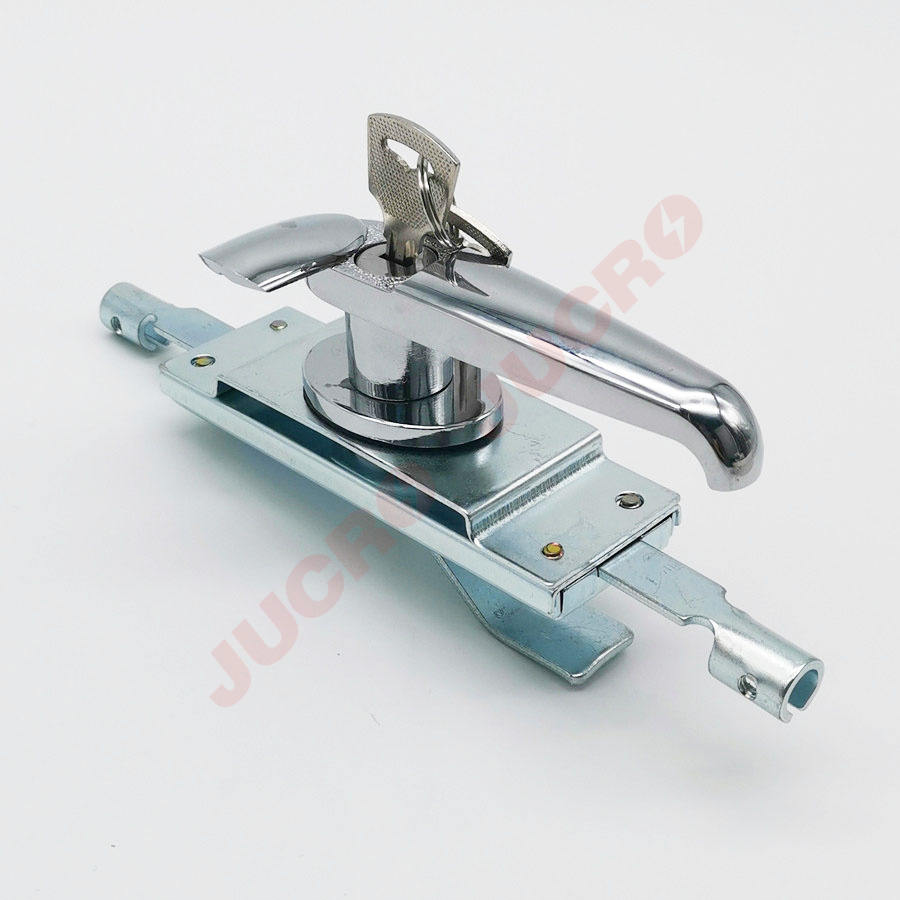

HANDLE LOCK (DL308-4)

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄、防尘盖,碳钢钢栓、传动组件

Zinc alloy base, handle and dust-proof cap, carbon steel bolt and rod machine

表面处理

Surface treatment

基座、手柄及防尘盖镀亮铬,钢栓及传动组件镀蓝白锌

Bright chrome plated base, handle and dust-proof cap, blue-white zinc plating for steel bolt and rod machine

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn Lock/un-lock

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

最大输入扭矩

Maximum input torque

15Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

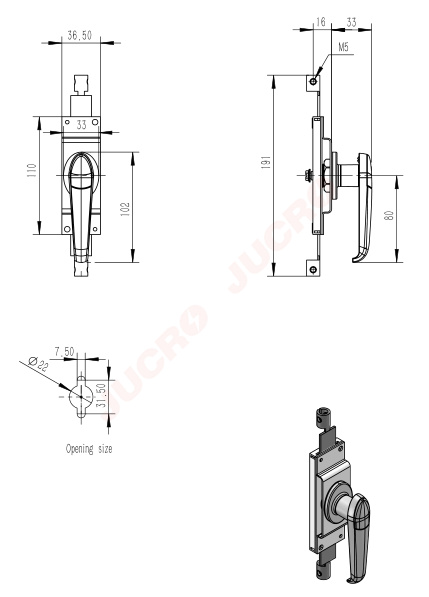

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

HANDLE LOCK (DL308-4)
