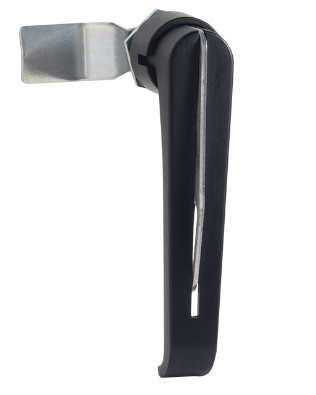

HANDLE LOCK (DL2057)


特征说明 CHARACTERISTICS

材 质

Material

锌合金锁体, 碳钢钢栓，不锈钢挂锁扣

Zinc alloy housing, carbon steel bolt, stianless steel padLock buckle

表面处理

Surface treatment

喷黑漆，镀锌锁片

Black spray painted, galvanized locking plate

结构说明

Structure descriPTion

把手90°旋转实现打开及锁闭

Quarter-turn lock/un-lock

备 注

Remark

带挂锁功能

With padlock function


性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

***输入扭矩

Maximum input torque

25N•m

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20N•m

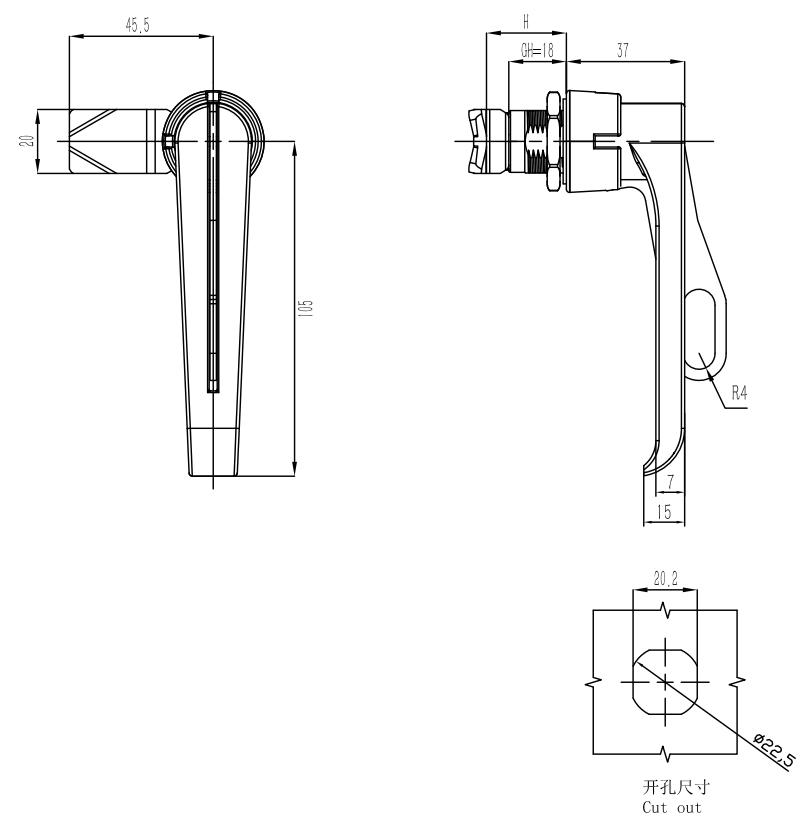

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unit：mm



HANDLE LOCK (DL2057)
