特征说明 CHARACTERISTICS | |
材 质 Material | 不锈钢 Stainless steel |
表面处理 Surface treatment | 拉丝 Wiredrawing |
备注 Remark | 螺母型/螺杆型 Nut type/Screw type |
型号 MODEL | |

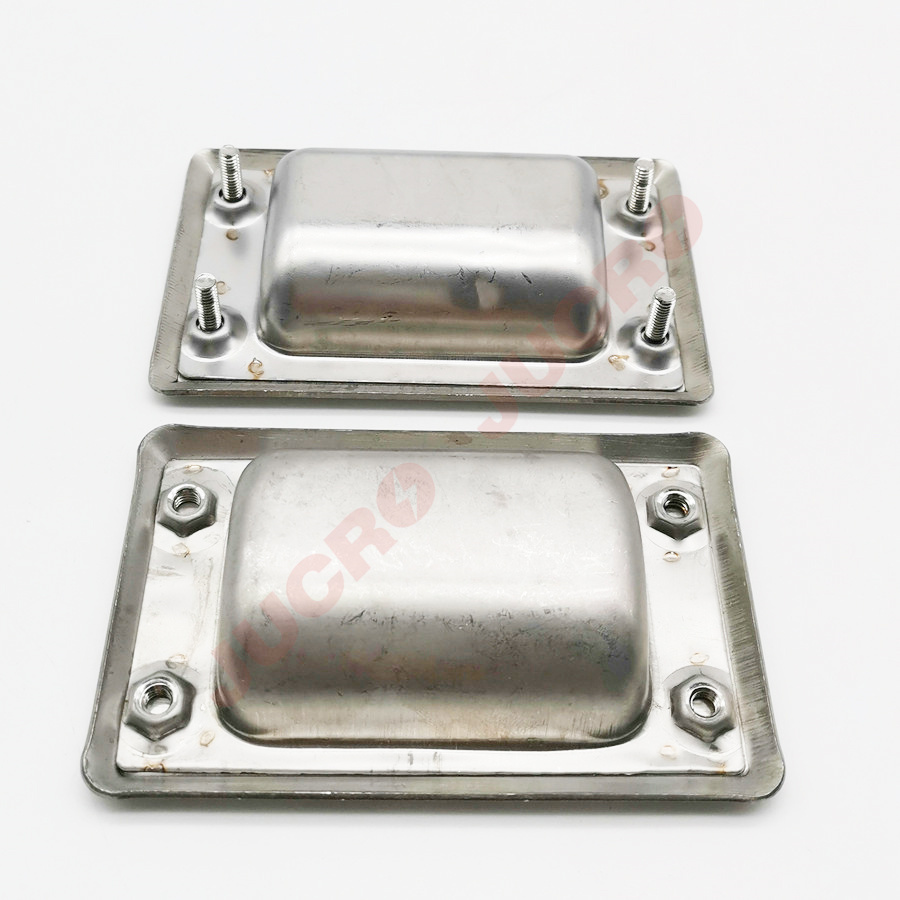

螺母型 Nut type | 螺杆型 Screw type |
94*60 | 94*60 |
109*63 | 109*63 |
119*69 | 119*69 |
138*89 | 138*89 |

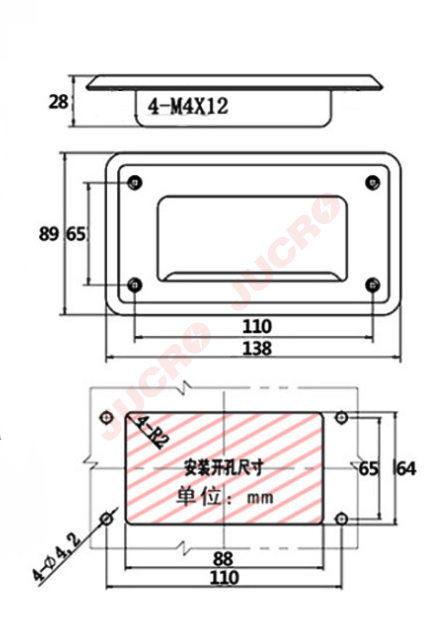

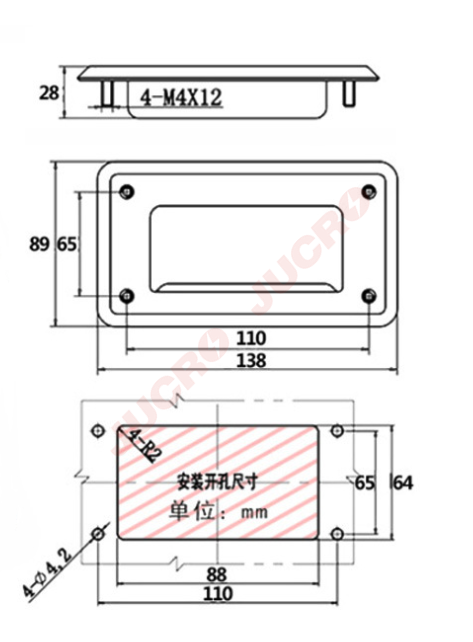

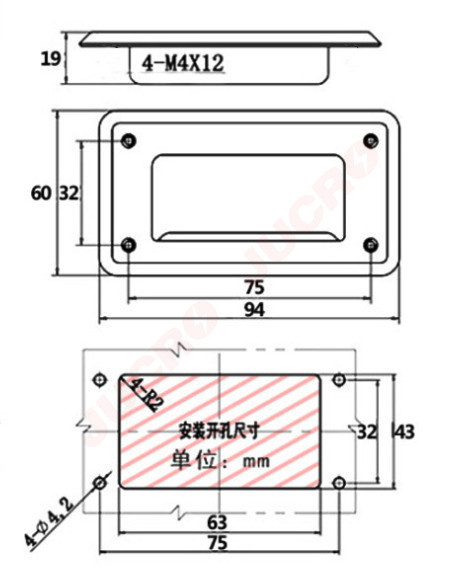

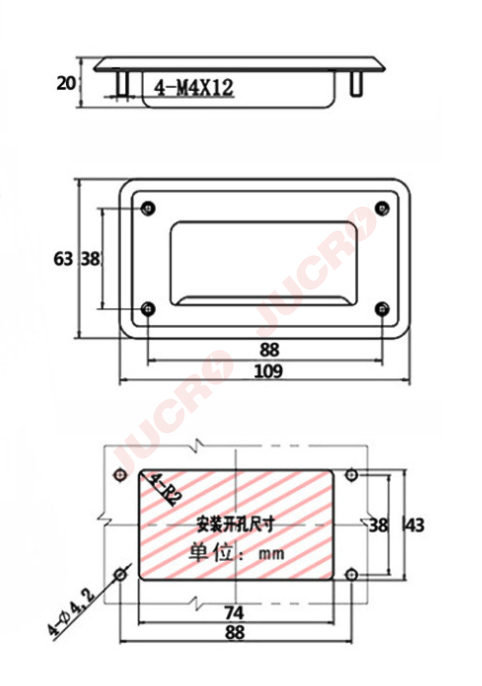

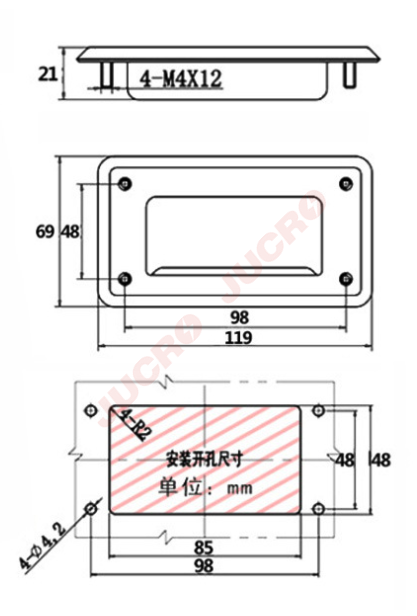

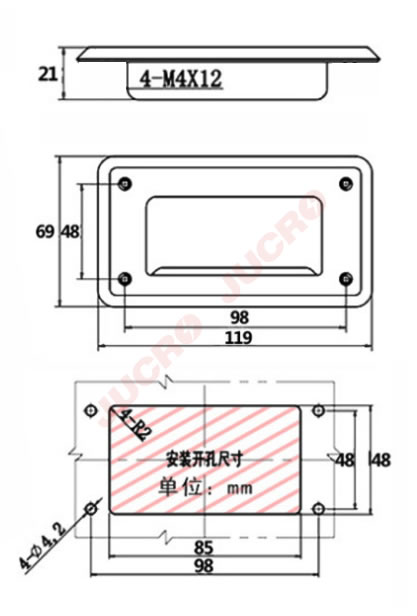

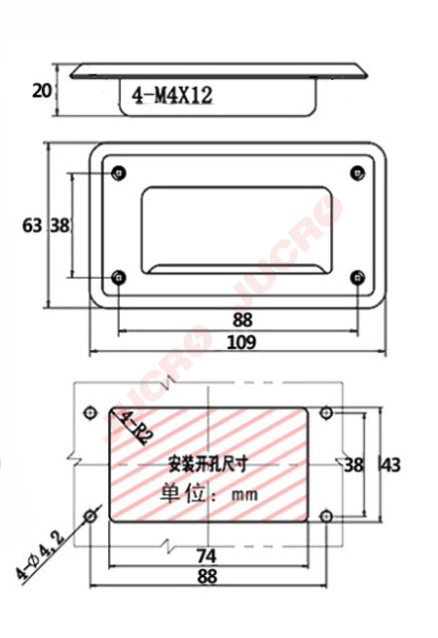

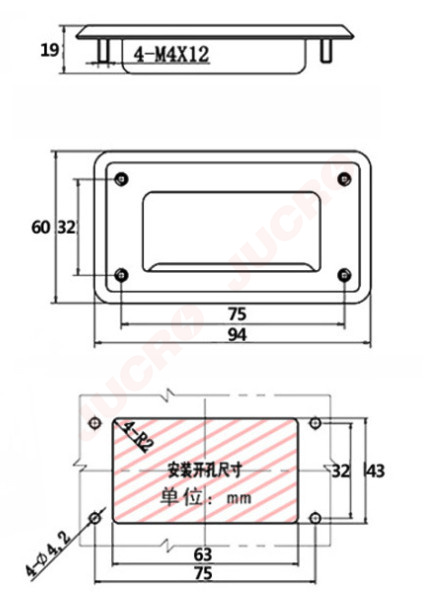

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
