Electromagnetic lock EML-A3

特征说明 CHARACTERISTICS

材质

Material

壳体采用钢板成型/内部零件为碳钢精铸而成

The shell is made of steel plate / the internal parts are made of carbon steel

工作方式

Working method

自锁功能

Self-detecting function

电气参数

Electrical  parameters

DC12V 2A

机械寿命

Mechanical life

设计荷载条件下,>50万次

Under design load conditions, > 500,000 times

表面处理

Surface treatment

镀电泳漆(中性烟雾实验过500小时以上)

 Electrophoretic paint (neutral smoke test for more than 500 hours)

安全性

Safety

锁钩可承受150kg拉力不产生明显永久性变形;具有防震, 防撬性能

The Lock hook can withstand 150kg pulling force without obvious permanent deformation; it has shock-proof and anti-prying properties

自弹式设计

Self-elastic design

弹力可调, 可适用于0.5~4KG重的门自弹

Adjustable elastic force, suitable for door self-elasticity with a weight of 0.5~4KG

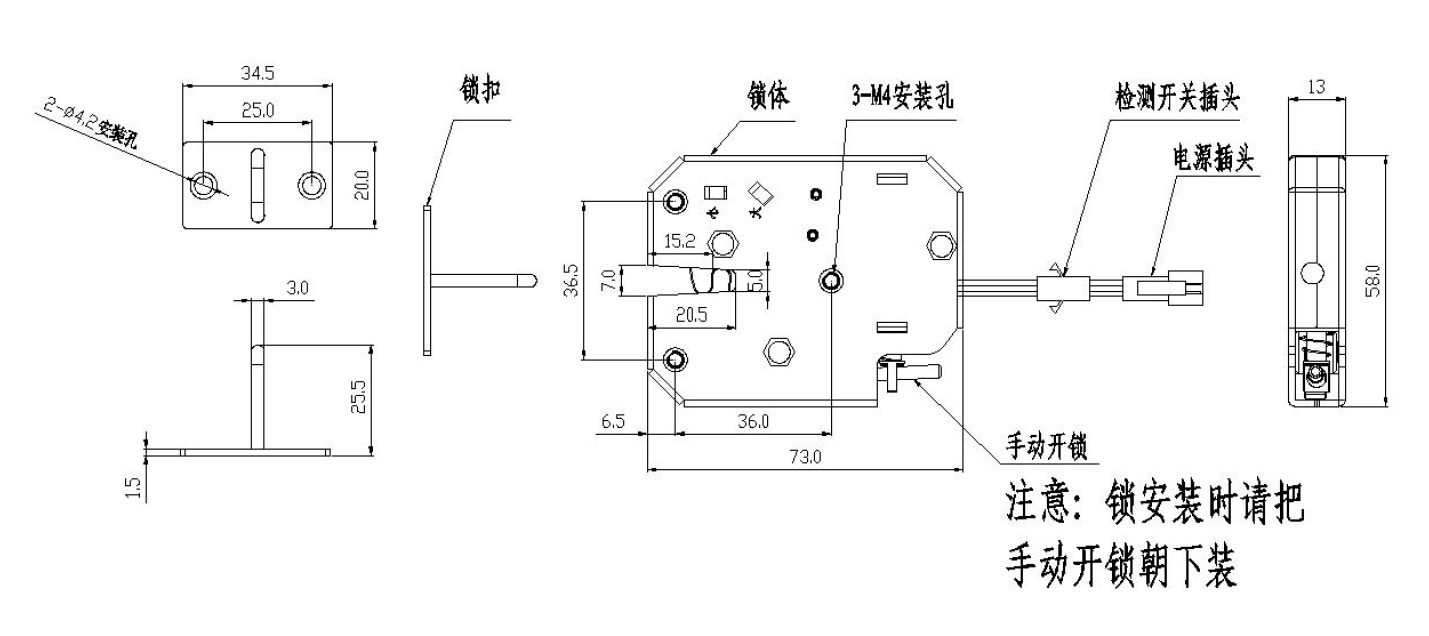

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm



Electromagnetic lock EML-A3
