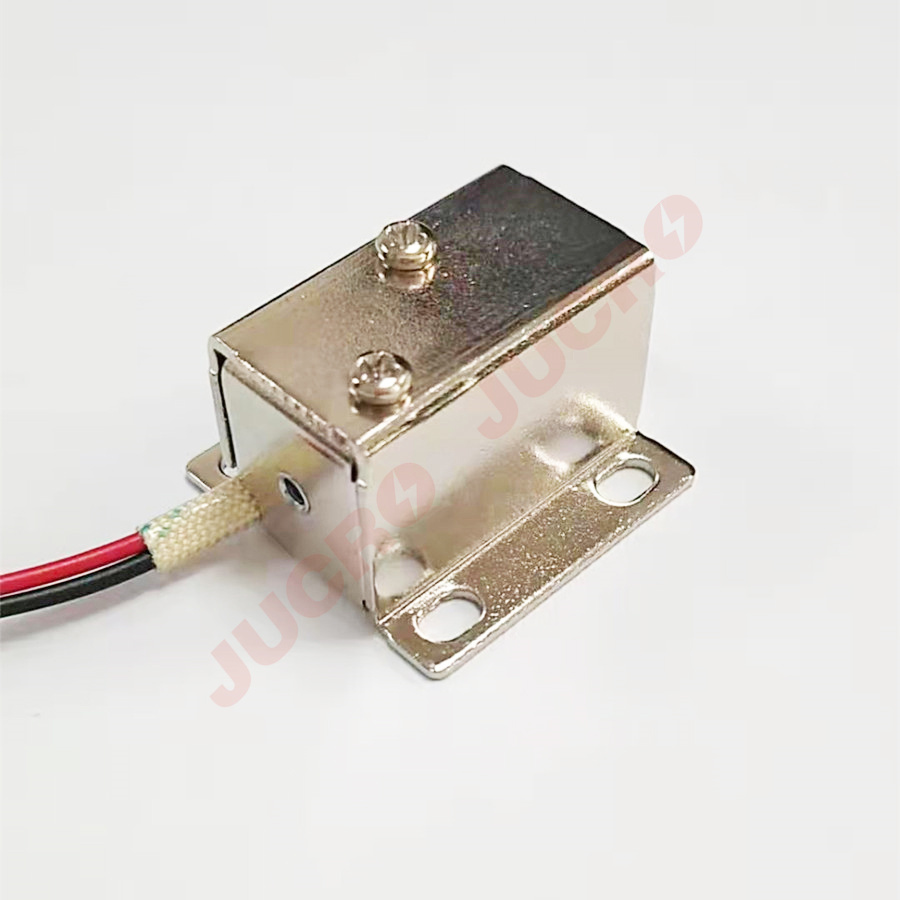

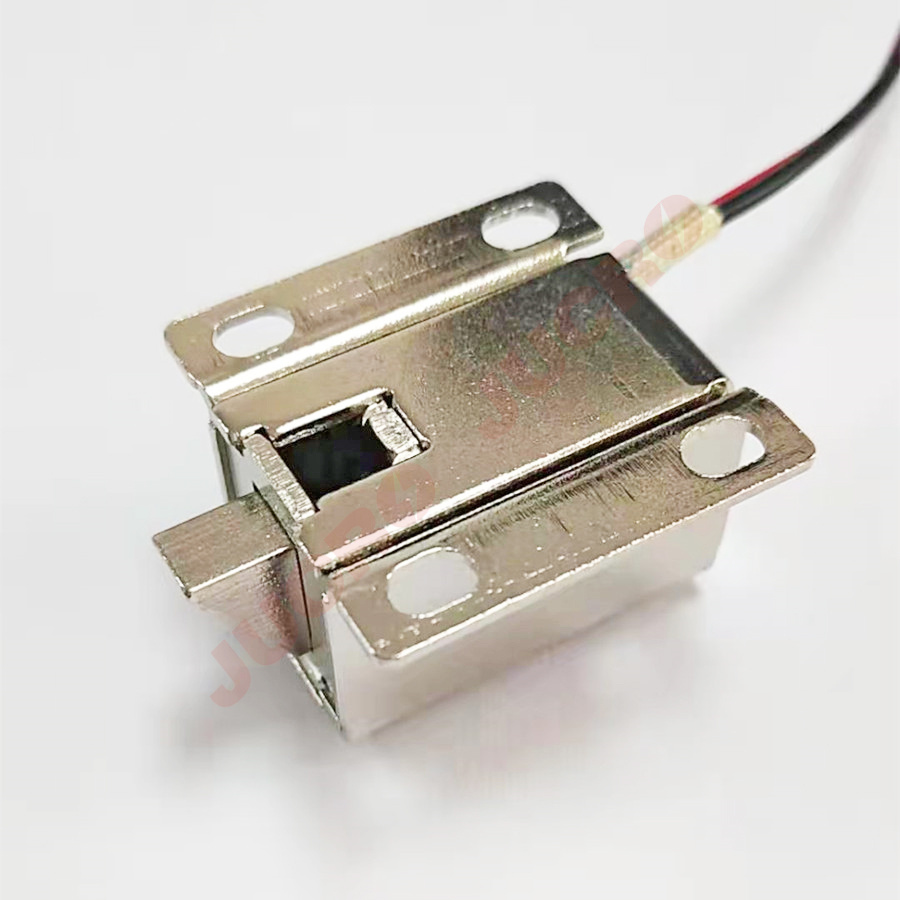

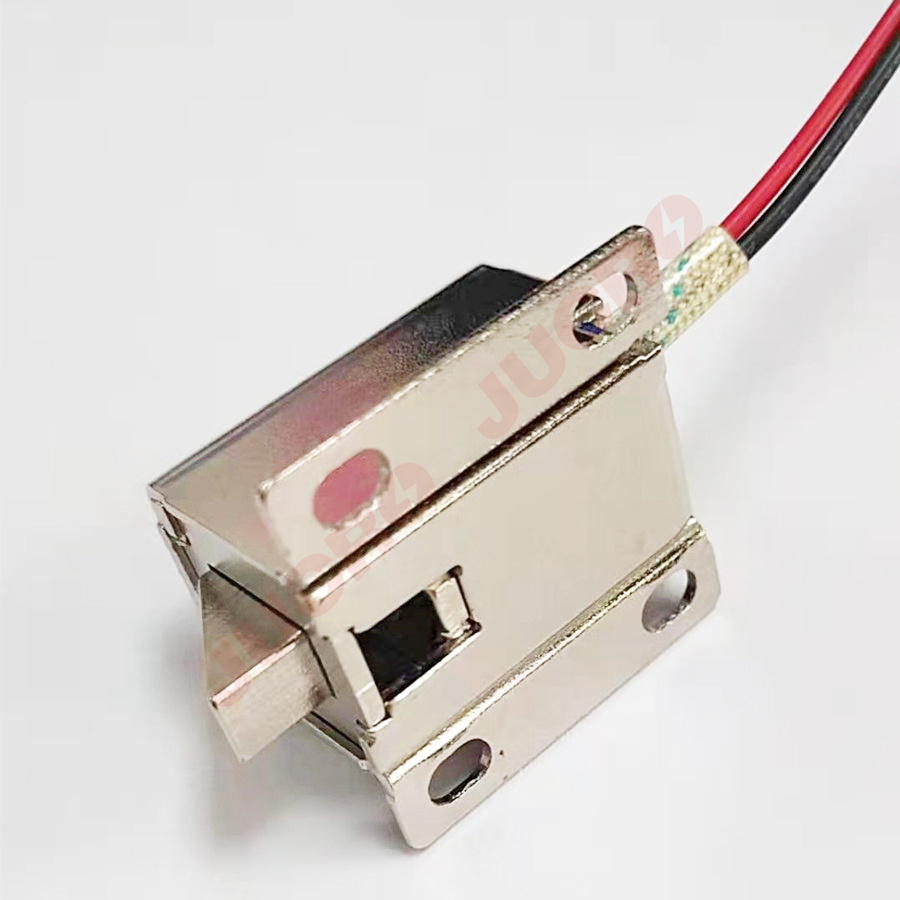

Electromagnetic Lock (EML-A1)

材 质

Material

碳钢镀亮铬

Bright chrome plated carbon steel

工作电压

Working voltage

DC6V/DC12V/DC24V

工作方式

Working mode

通电打开，断电释放；适用于间歇性工作场合

Power-on state for unLocking, and power-off state for locking; suitable for intermittent work situations.

备注

Remark

1.     红、黑线为电磁锁的电源线，不分正负极;

The red and black wires are the power cables of the magnetic lock, regardless of the positive and negative poles.

2.     ***启动电压3.7V

Minimum starting voltage is 3.7V

EML-A1 6V

DC6V

1A

4.4mm

0.07KG

2 minutes

EML-A1 12V

DC12V

0.43A

4.4mm

0.08KG

3 minutes

EML-A1 24V

DC24V

0.53A

4.4mm

0.15KG

10 minutes

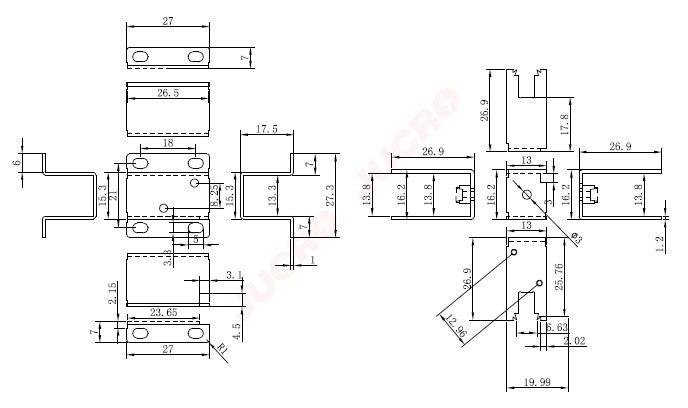

Unit：mm
