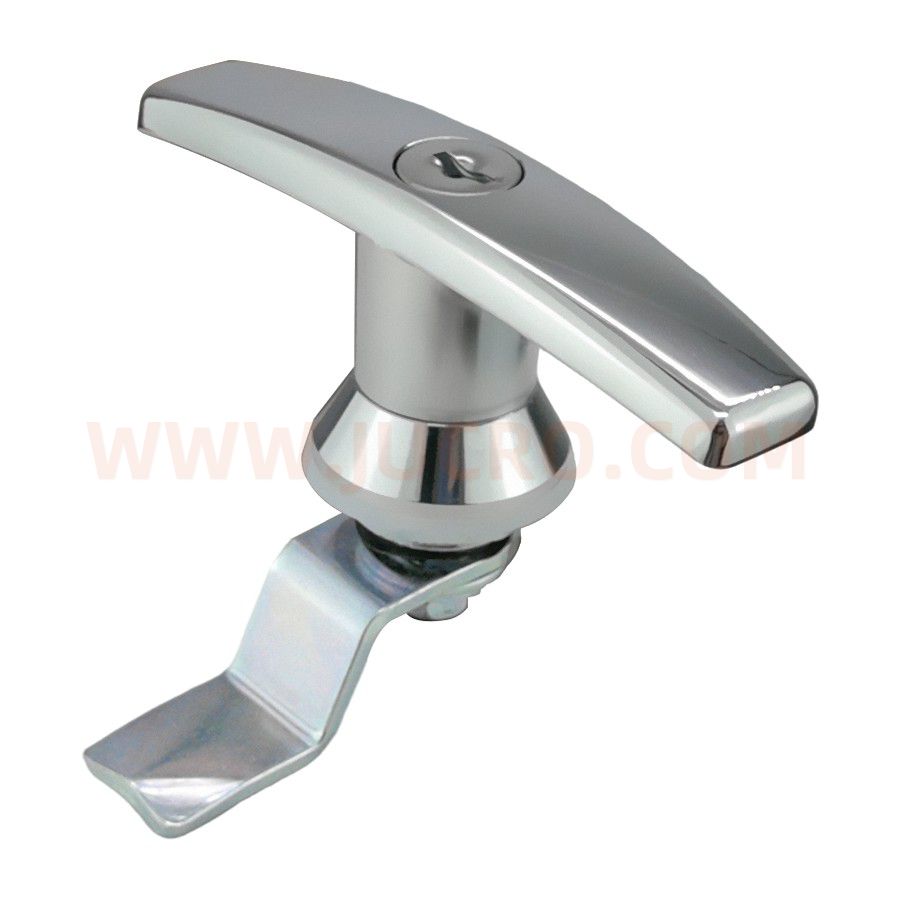

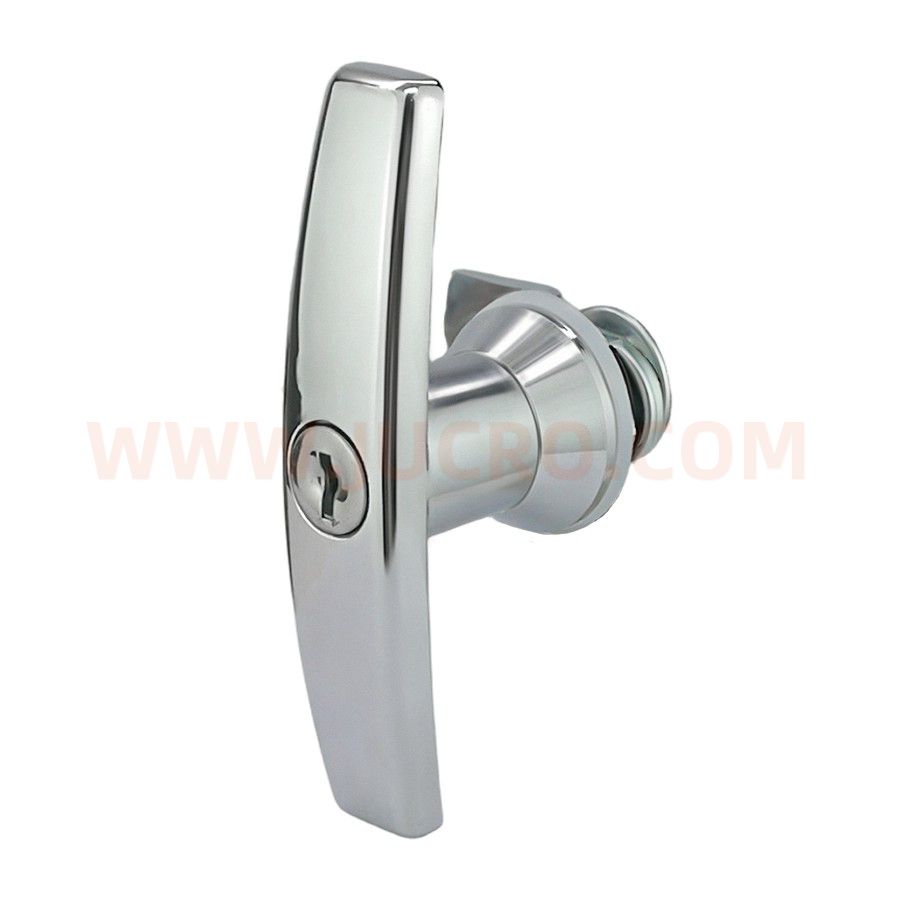

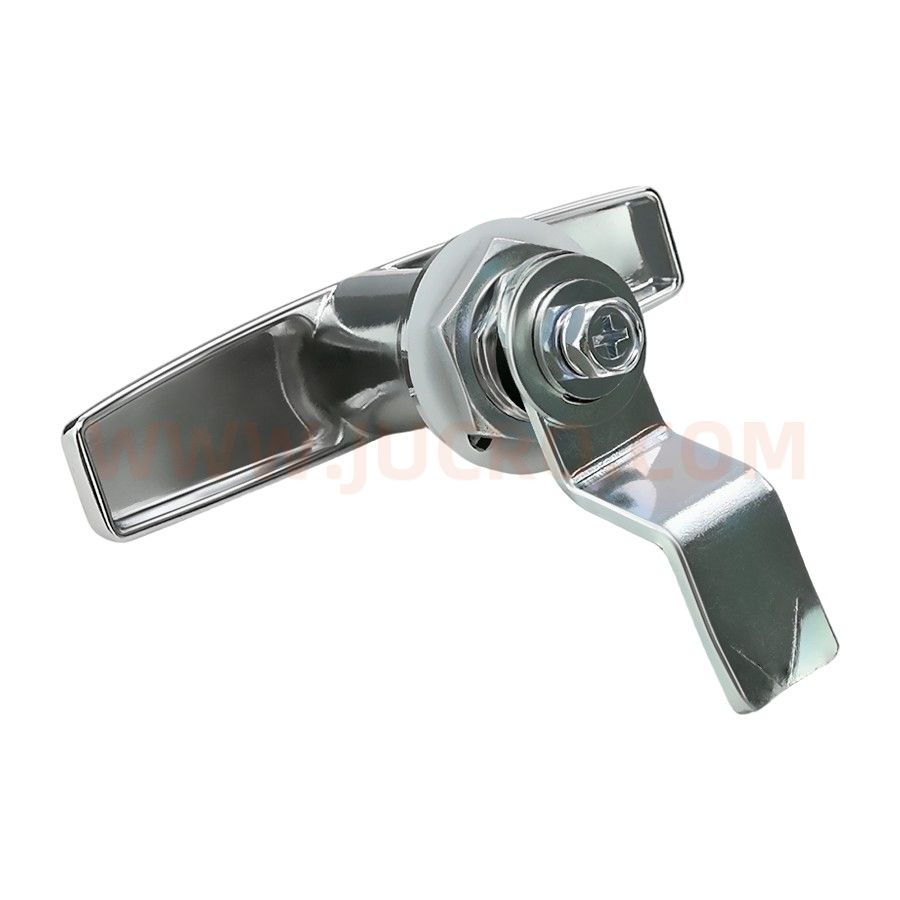

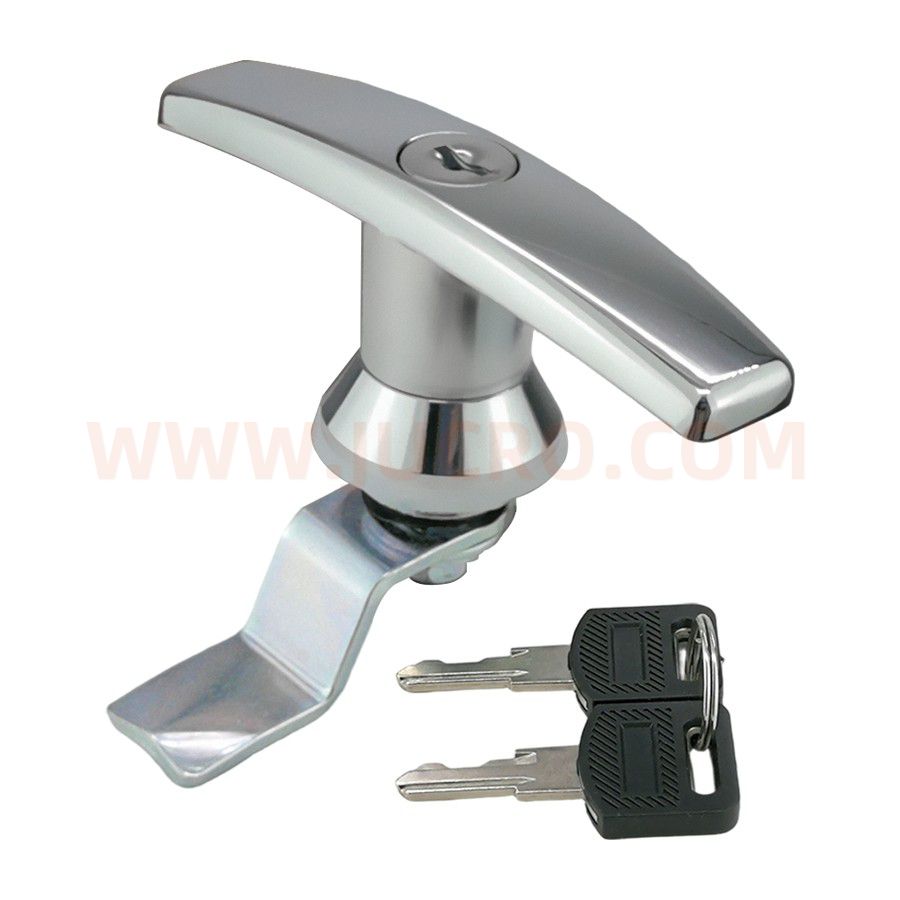

HANDLE LOCK (DL302-2)

Product Detail

特征说明 CHARACTERISTICS

材质

Material

锌合金锁体、手柄，碳钢钢栓

Zinc alloy housing and handle, carbon steel Lock cam

表面处理

Surface treatment

锁体及手柄镀亮铬，钢栓镀彩锌

Bright chrome plated housing and handle, color-zinc plating for steel cam

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock

备注

Remark

带钥匙功能

With key function

性能参数 PERFORMANCE PARAMETERS
***静载荷 Maximum static load	270N
***输入扭矩 Maximum input torque	20N•m
固定螺母的推荐拧紧力矩 Recommended nut tightening torque	20N•m

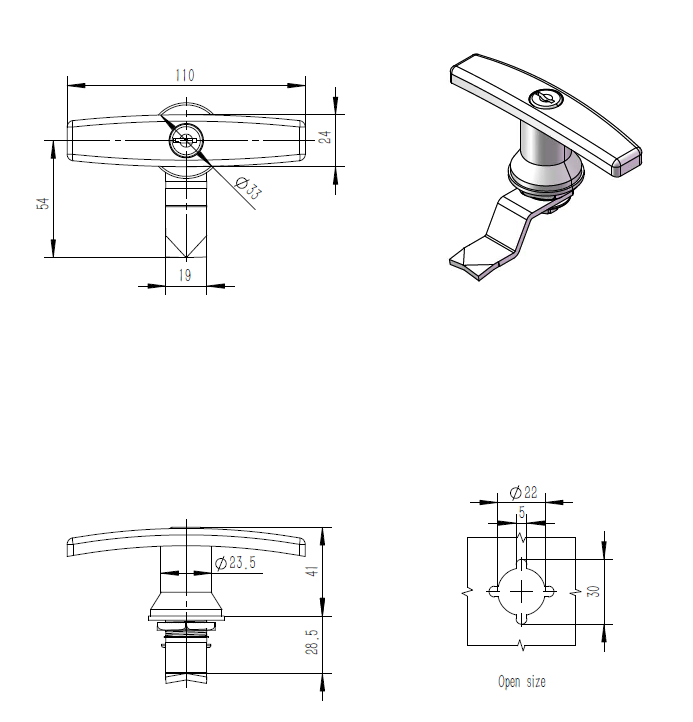

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unit：mm
