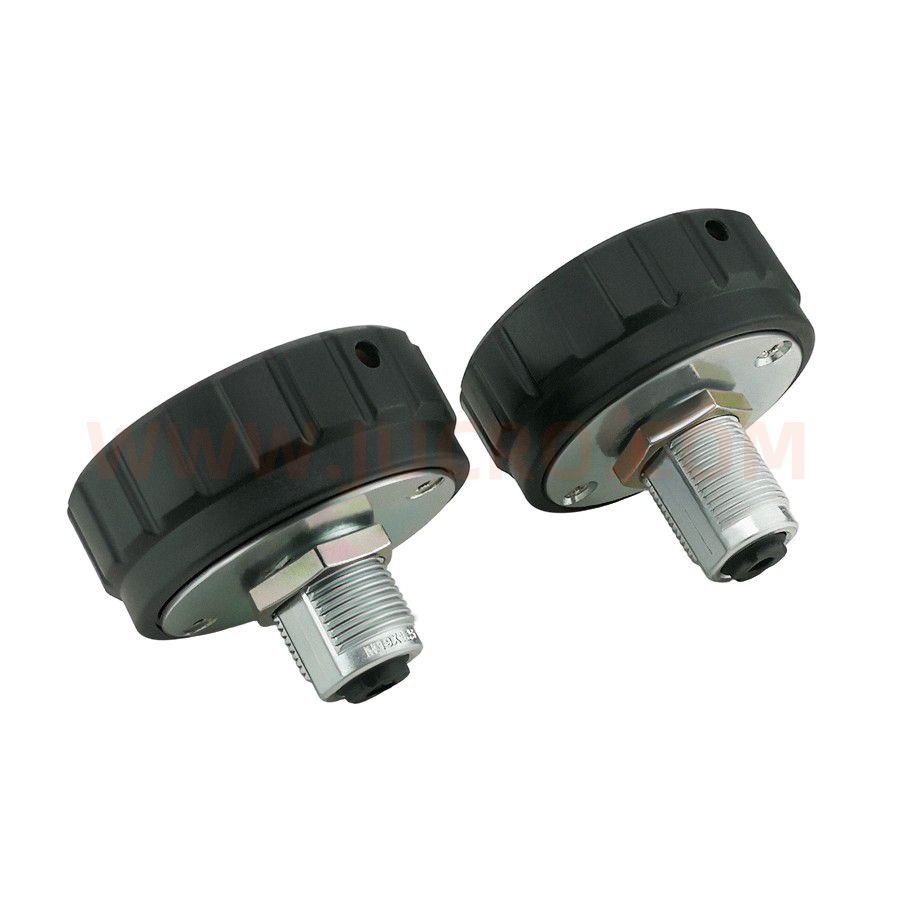

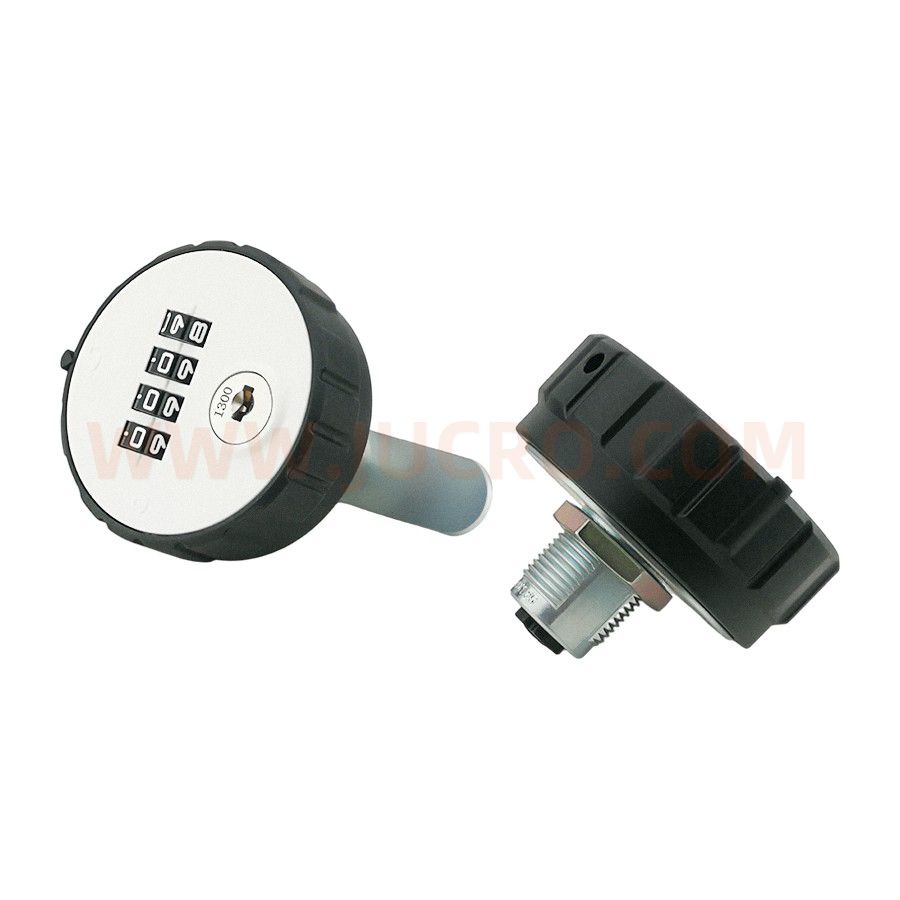

DIGIT CODE CAM LOCK (DL921W)

特征说明 CHARACTERISTICS

Material

PC外壳、碳钢锁芯及钢栓

PC Lock housing, carbon steel lock cylinder and lock cam

表面处理

Surface treatment

电镀

Electroplating

结构说明

Structure descriPTion

旋转90°实现开启或锁闭(选配:通开钥匙)

Quarter-turn lock/un-lock (Optional: key)

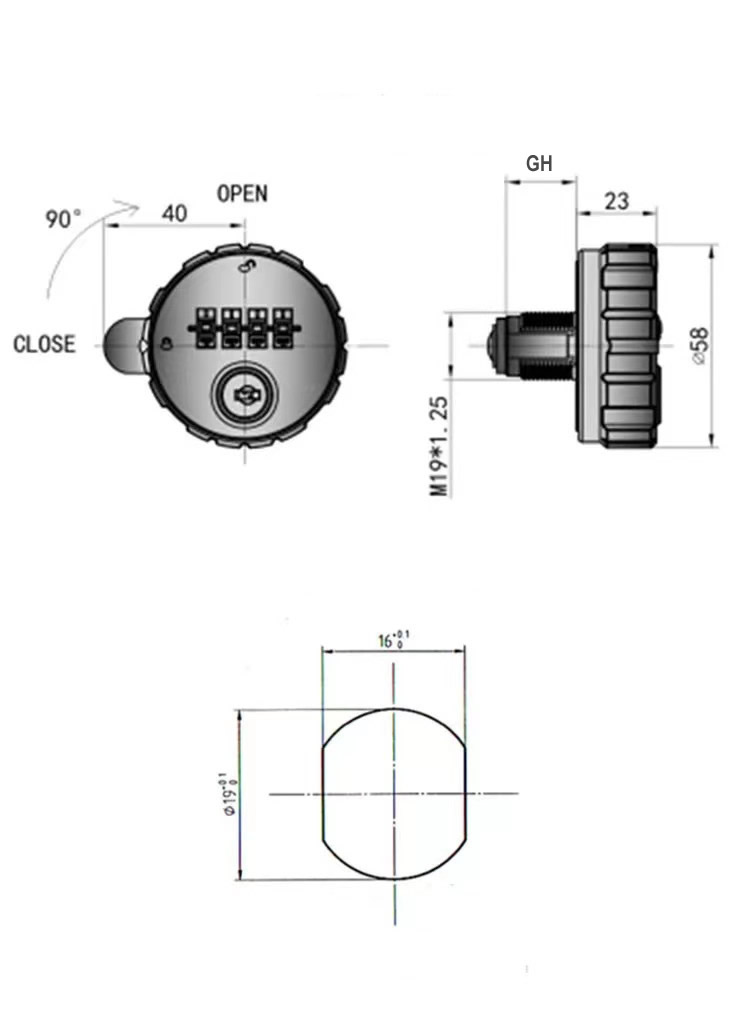

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION






尺寸 DIMENSION

产品型号

Model No.

GH

(mm)

门板厚度

Suitable for door thickness

开孔直径

Cut out diameter

DL921W

20

≤11

19

DL921W

26

≤22

19
