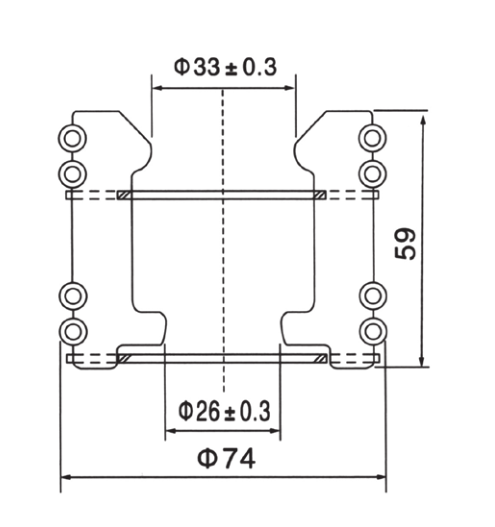

DCT-630A\1000A Tulip Contact Moveable Contact for vacuum circuit breaker
VCB Tulip Contact Jaw Contact
DCT-630A 1000A Tulip Contact Jaw Contact Moved Contact Female Contact Movable Contact
Model | DCT-630A/1000A |
Ordering number | JUC-202 |
Contact finger number | 12 pieces |
Material | Red copper / Strainless steel spring |
HS Code | 853890000 |
Copper grade | T2 |
Conductivity IACS % | 99.8% |
Hardness | 89.7 |
Chemical composition | Cu+Ag≥99.98 |
Silver coating thickness | 8-17.5μm |
Ambient temperature | -50℃~ +150℃ |
Contact surface roughness | ≤Ra:3.2 |
Spring material | Non-magnetic Ring-shaped, avoid the eddy |
