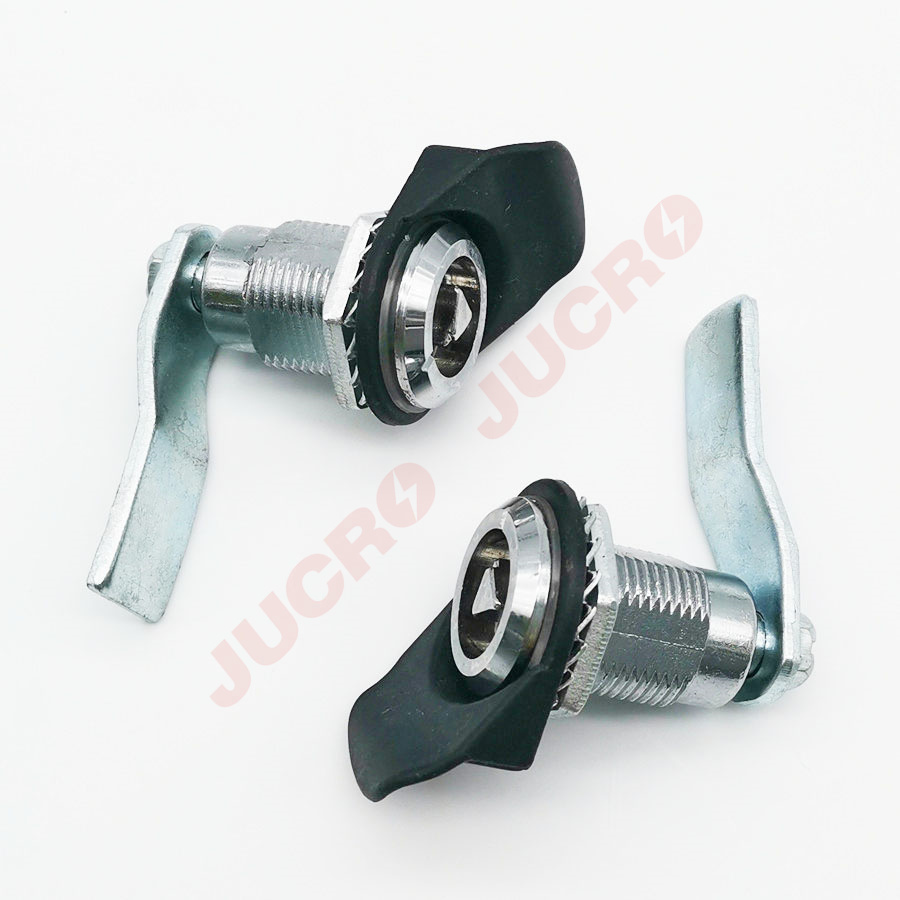

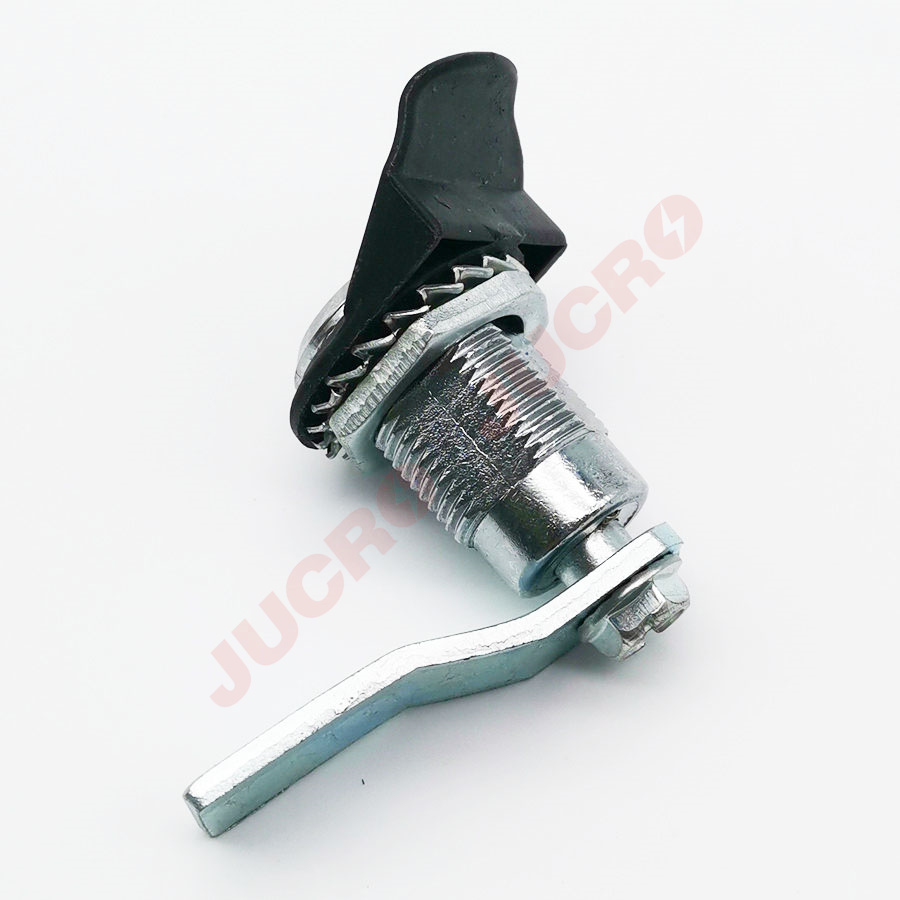

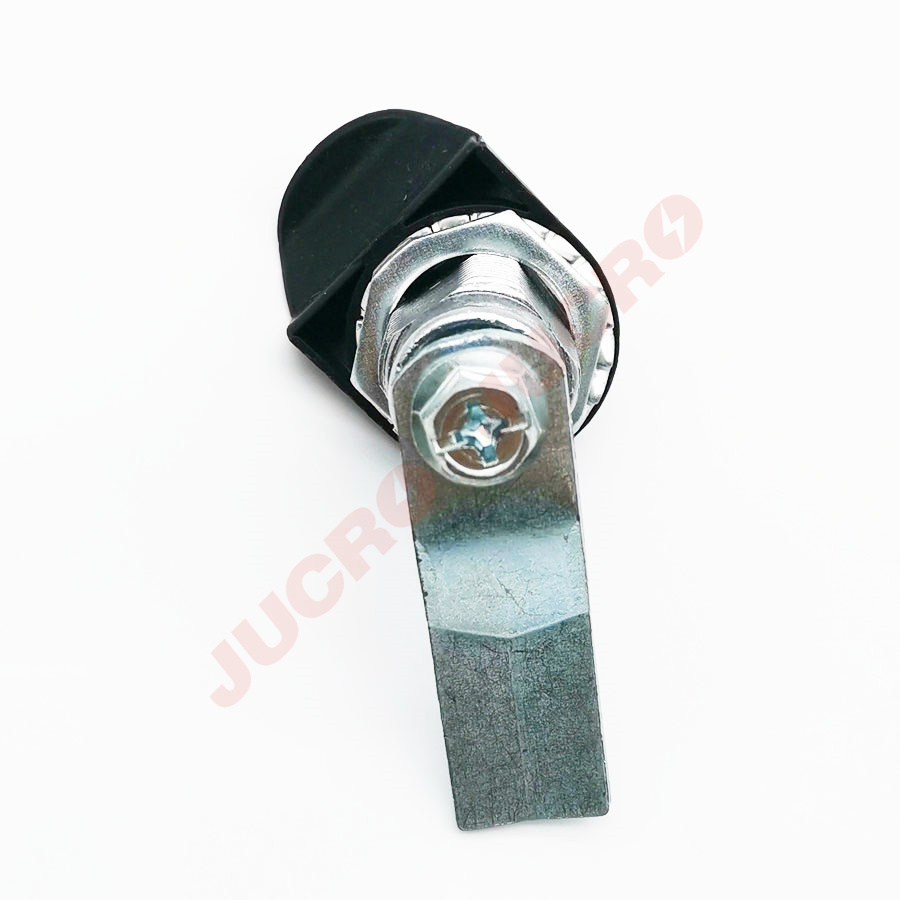

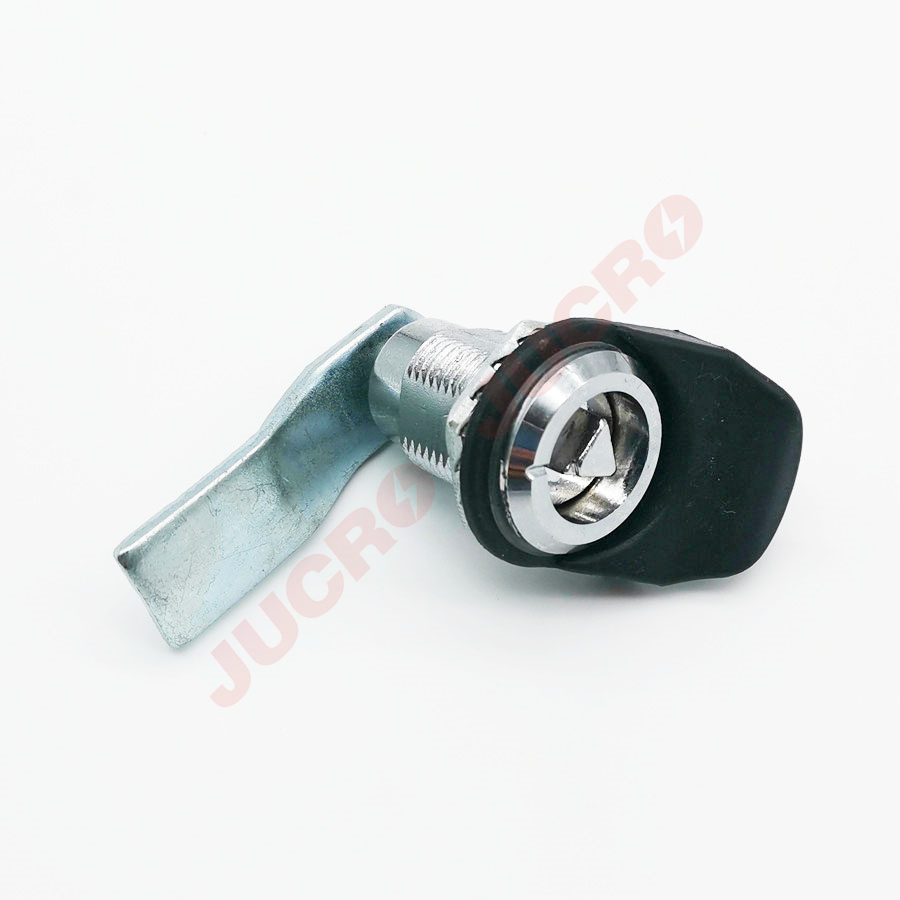

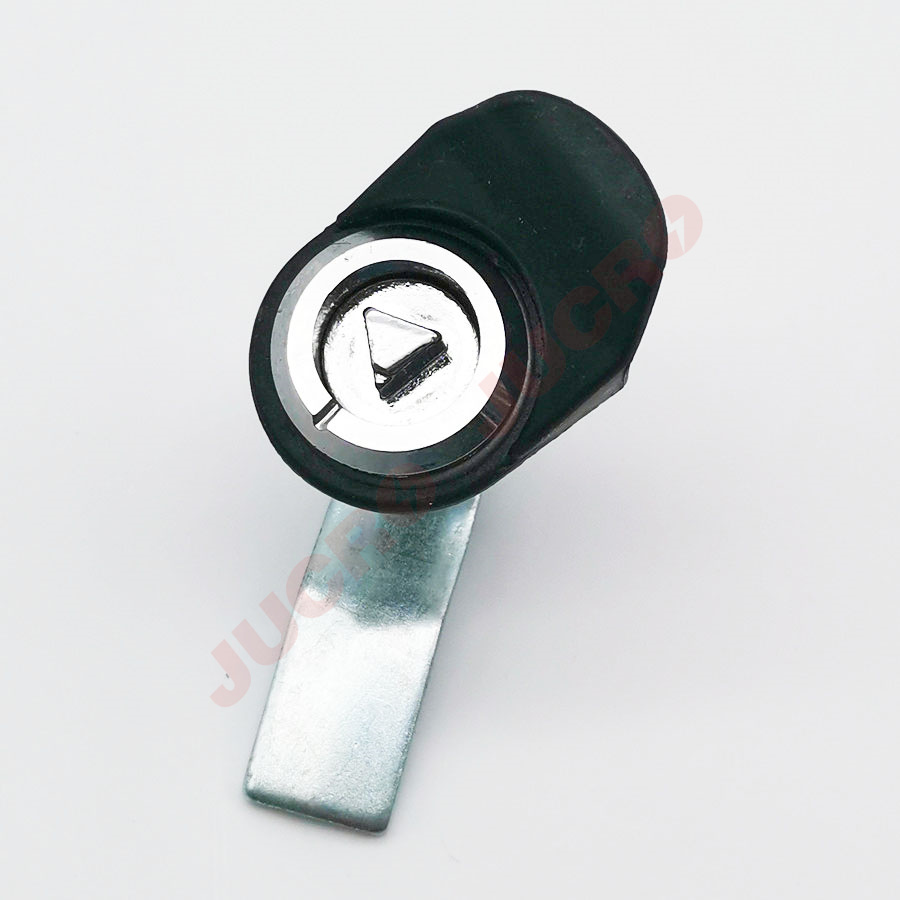

Cam Lock DL816-1 bright

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓,PA拉攀

Zinc alloy housing and Lock core, carbon steel boltPA handle pull

表面处理

Surface treatment

镀亮铬基座、锁芯,钢栓镀白锌

Bright chrome plated housing and lock core, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭,具有锁紧功能

Turn the handle 90 degree to open or lock, with the function of axial tight locking

备 注

Remark

选配钥匙

Key for selection



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

300N

***输入扭矩

Maximum input torque

11Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

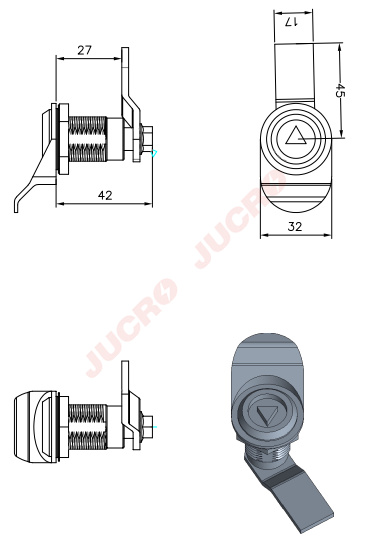

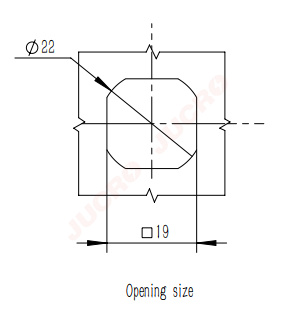

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm


Cam Lock DL816-1 bright
