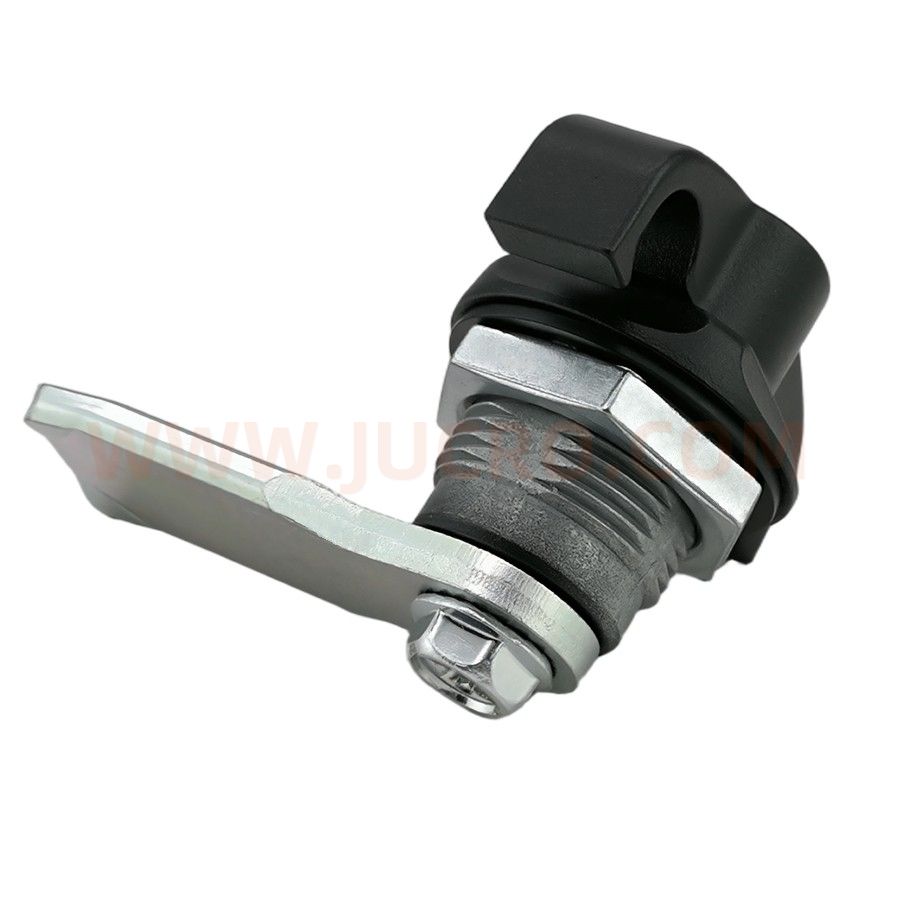

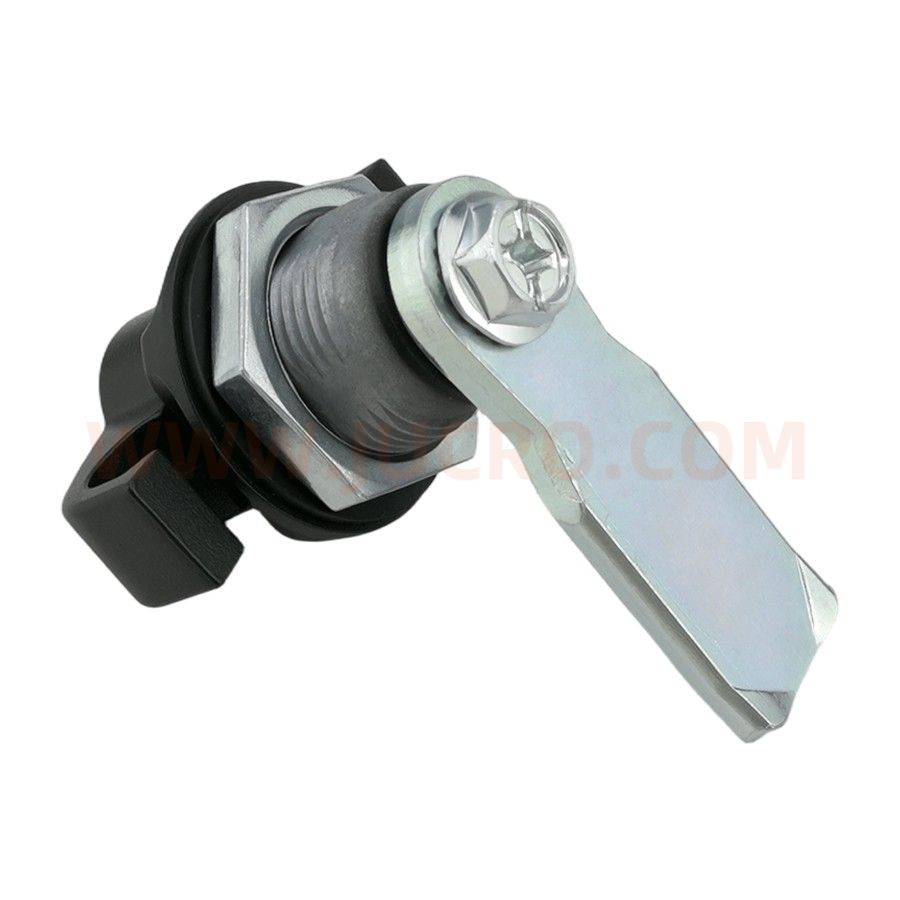

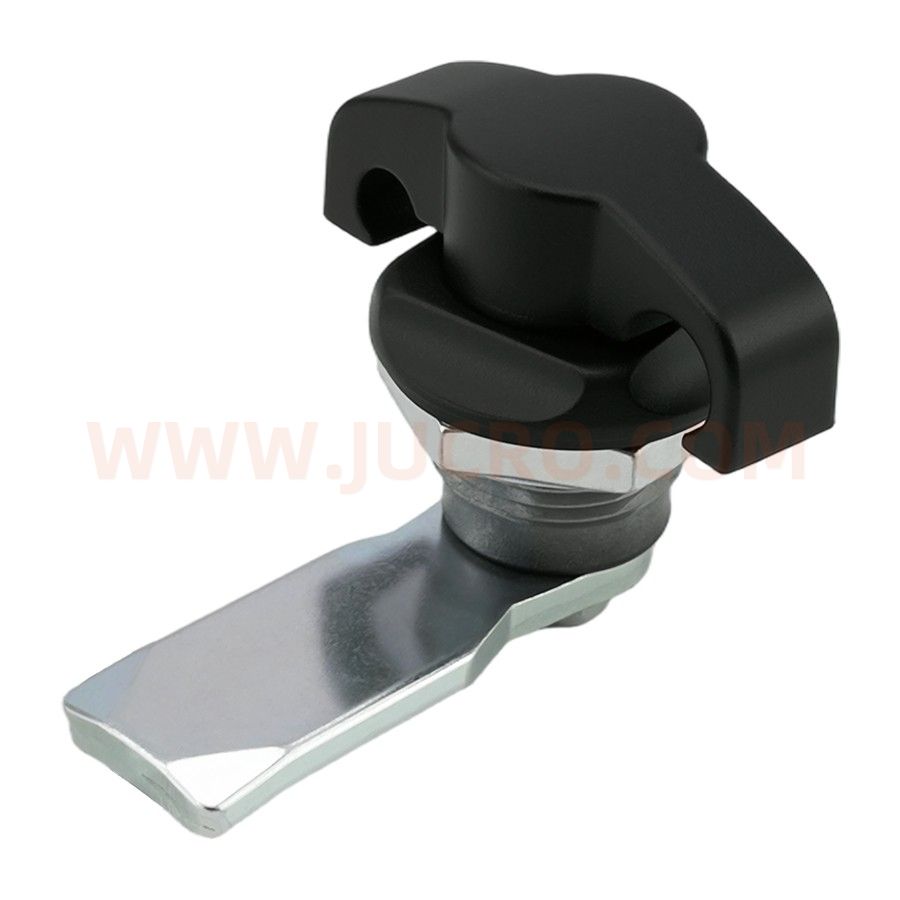

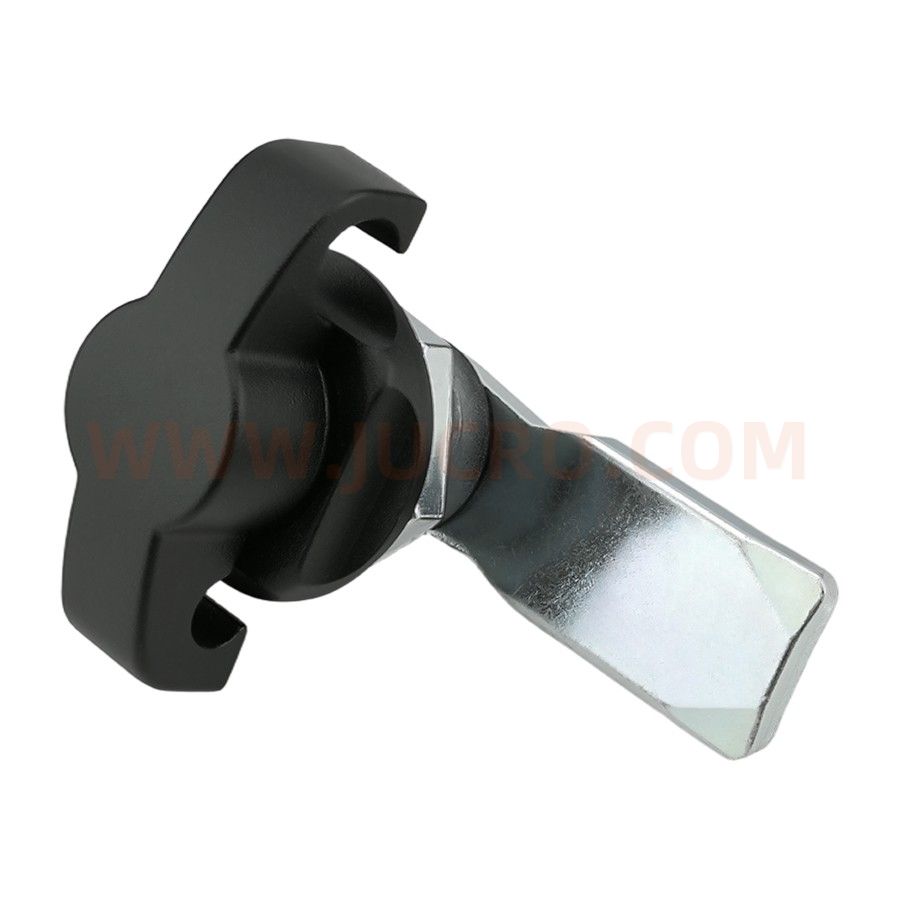

Cam Lock DL714-3

Cam Lock  DL714-3

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、手柄,碳钢钢栓

Zinc alloy housing and handle, carbon steel bolt

表面处理

Surface treatment

喷塑(黑麻面)基座、手柄, 镀白锌钢栓

Black painted housing and handle, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或闭锁

Quarter-turn Lock/un-lock



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

250N

***输入扭矩

Maximum input torque

18Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

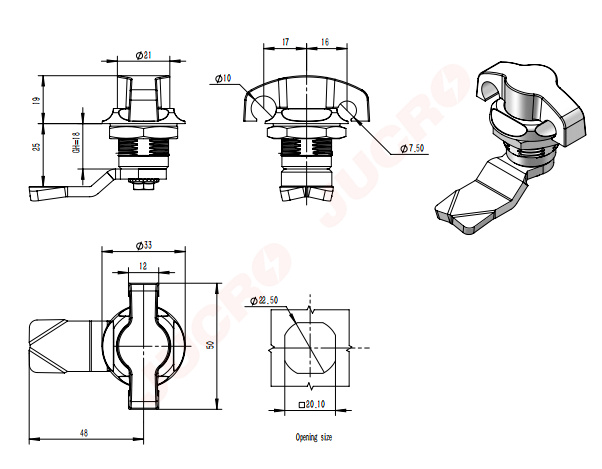

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、手柄,碳钢钢栓

Zinc alloy housing and handle, carbon steel bolt

表面处理

Surface treatment

喷塑(黑麻面)基座、手柄, 镀白锌钢栓

Black painted housing and handle, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或闭锁

Quarter-turn Lock/un-lock



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

250N

***输入扭矩

Maximum input torque

18Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
