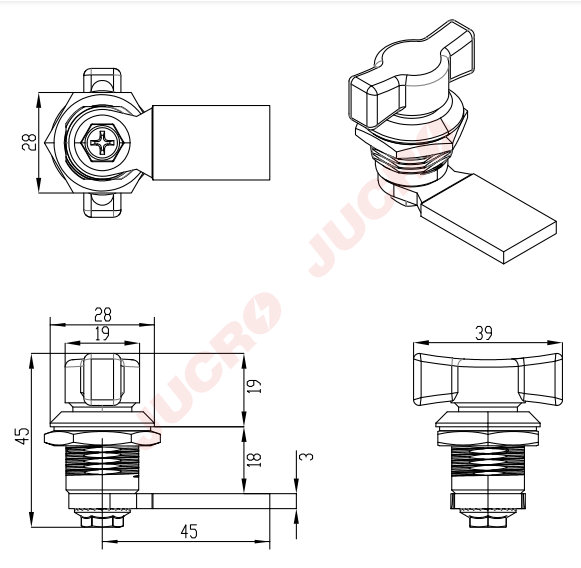

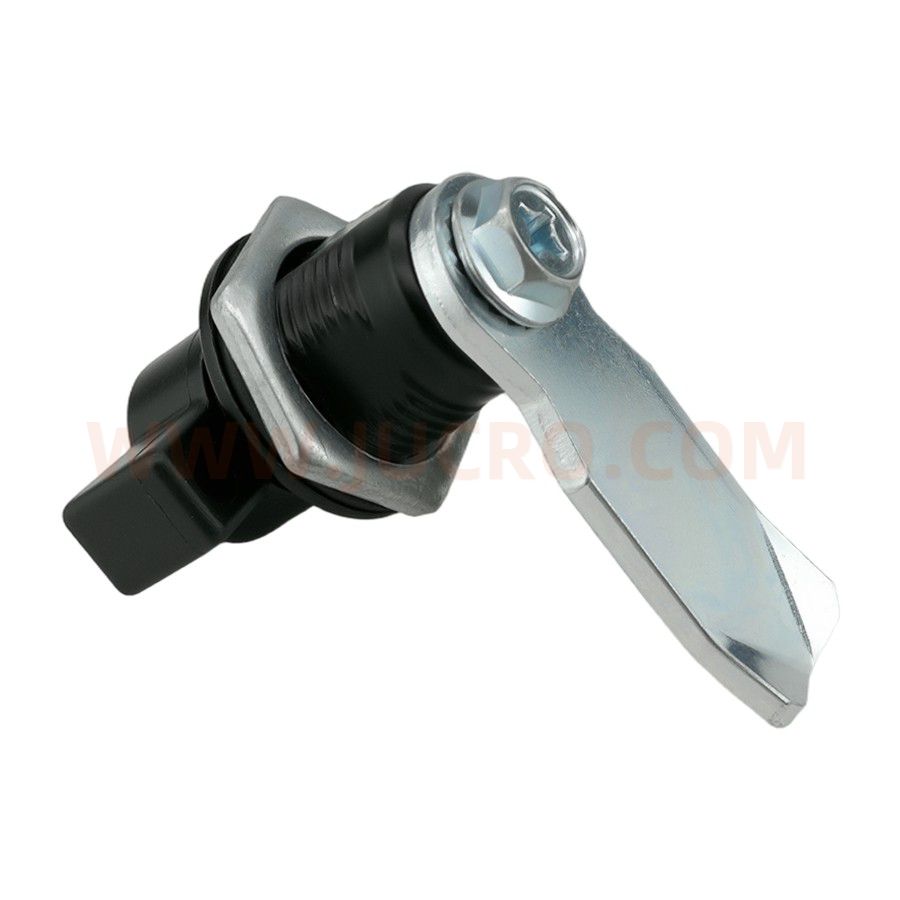

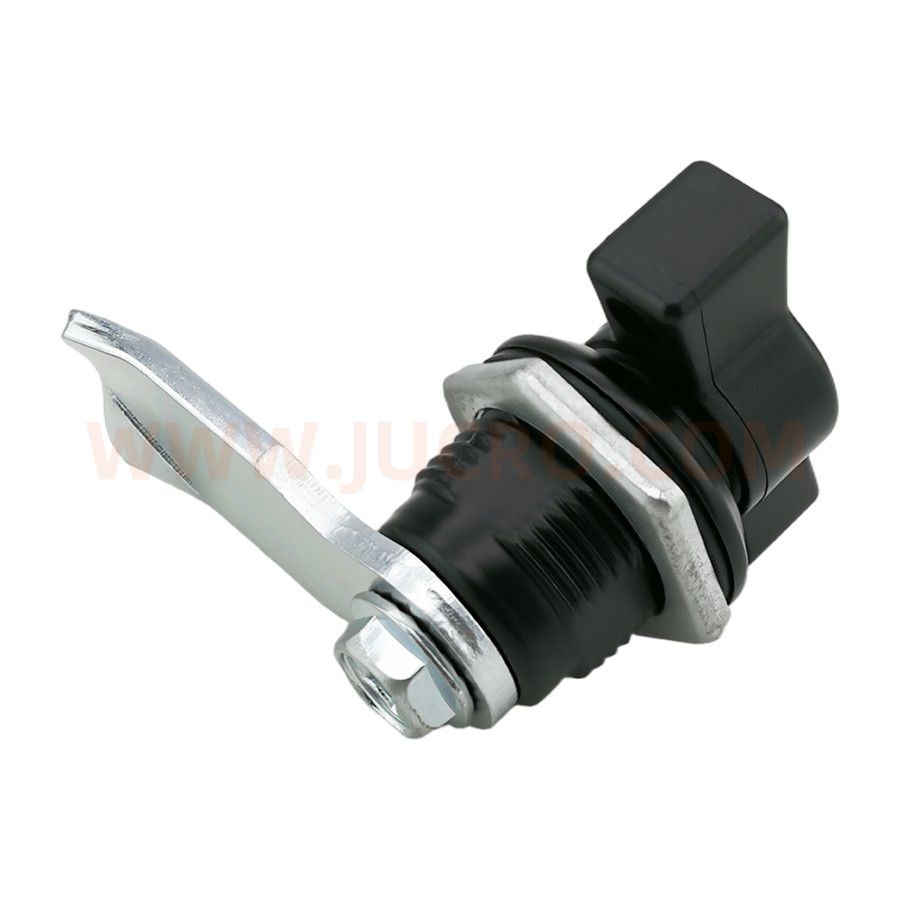

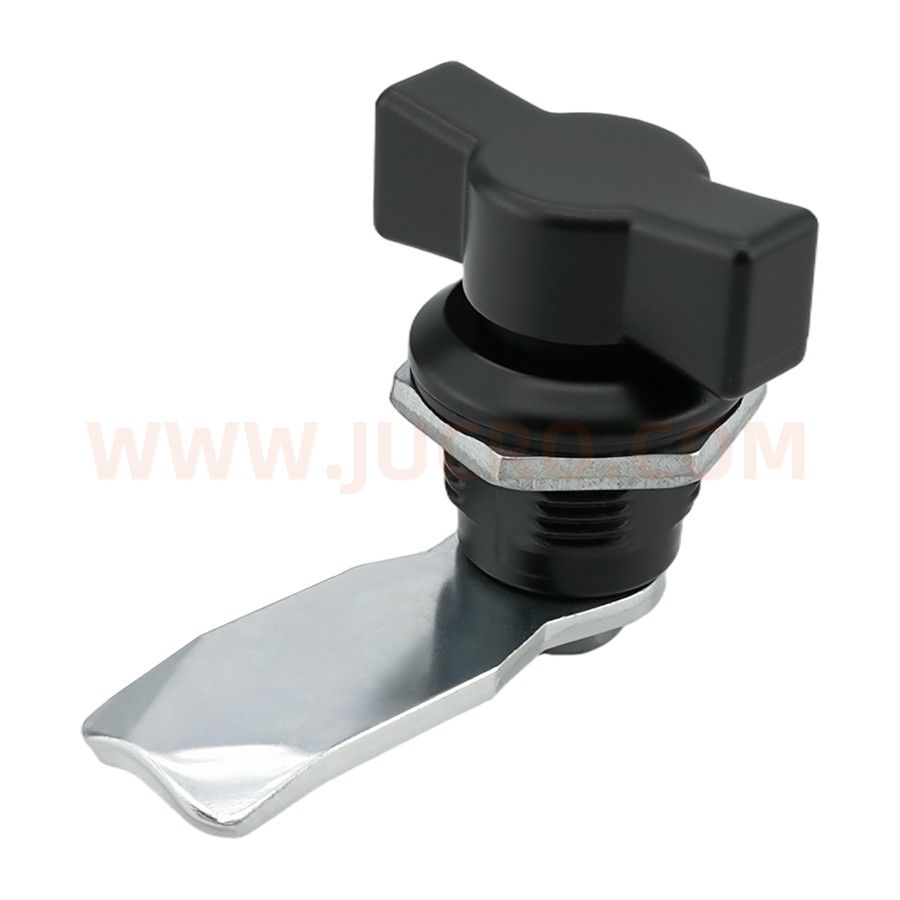

Cam Lock DL714-2

Cam Lock DL714-2

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座,PA手柄,碳钢钢栓

Zinc alloy housing, PA handle, carbon steel bolt

表面处理

Surface treatment

黑漆基座, 镀白锌钢栓

Black spray painted housing and handle, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或闭锁

Quarter-turn Lock/un-lock



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

220N

***输入扭矩

Maximum input torque

9Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm
