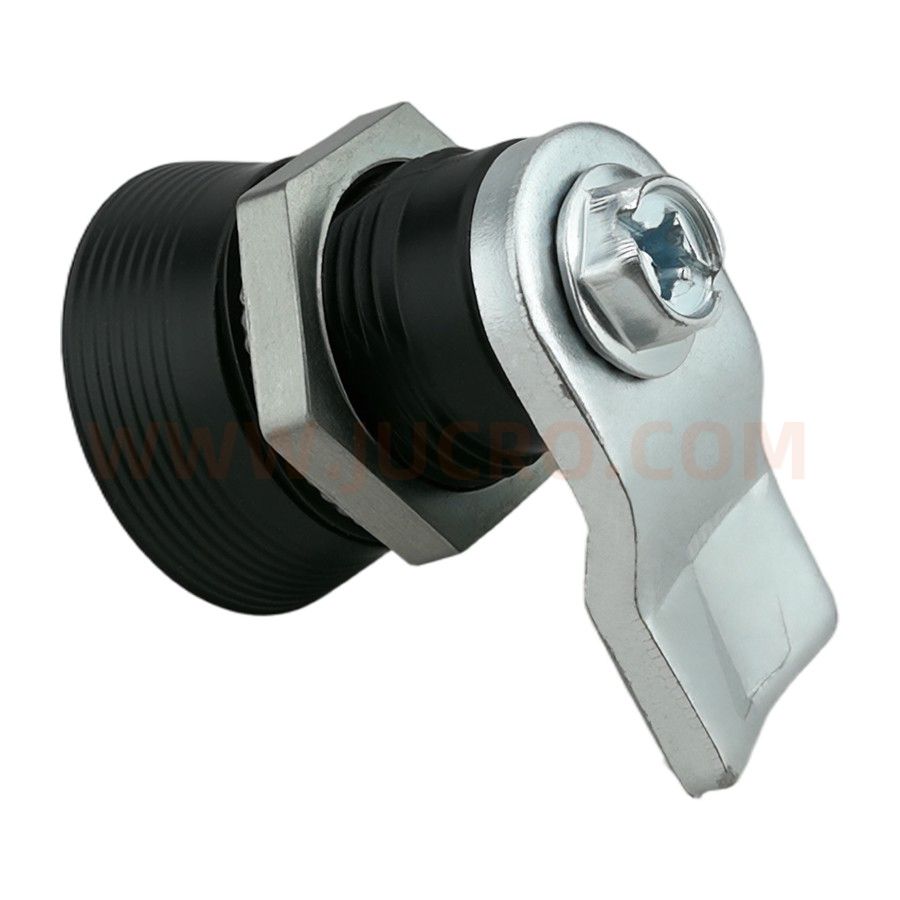

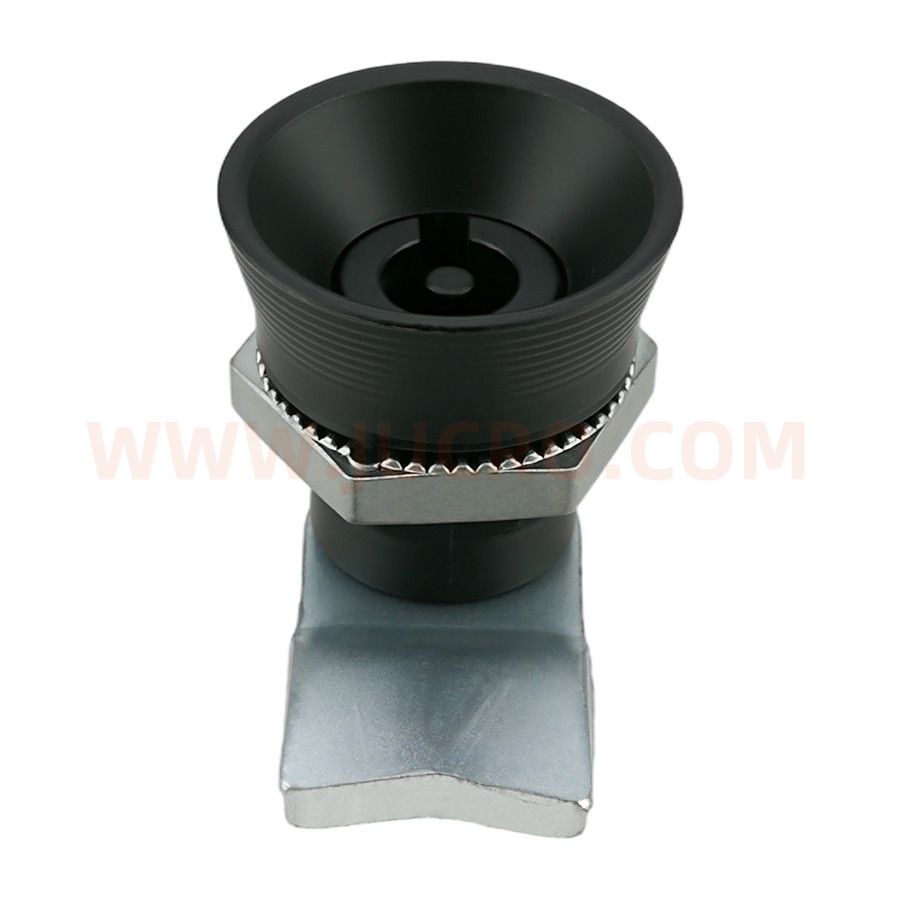

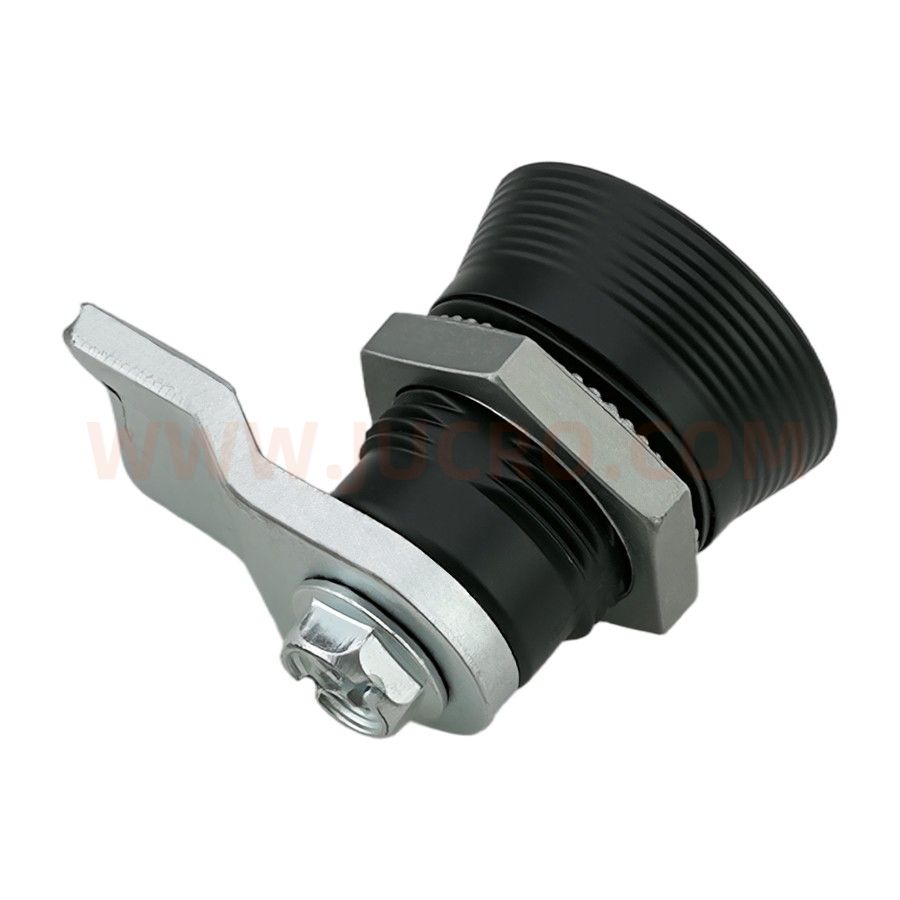

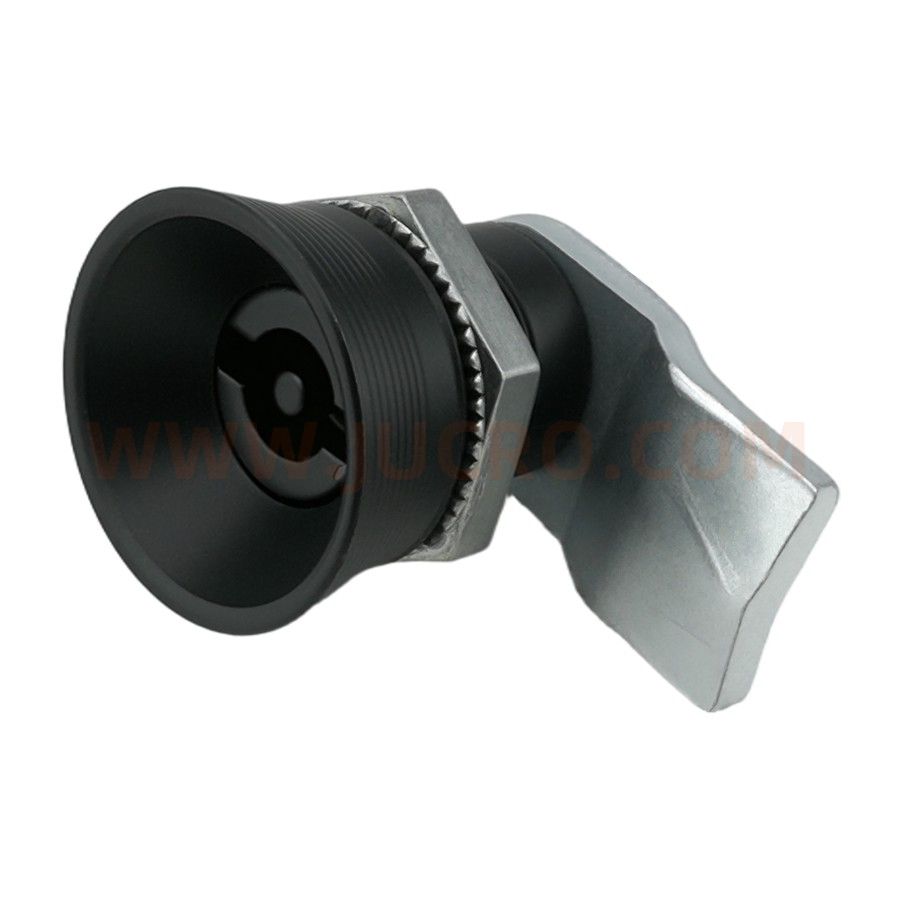

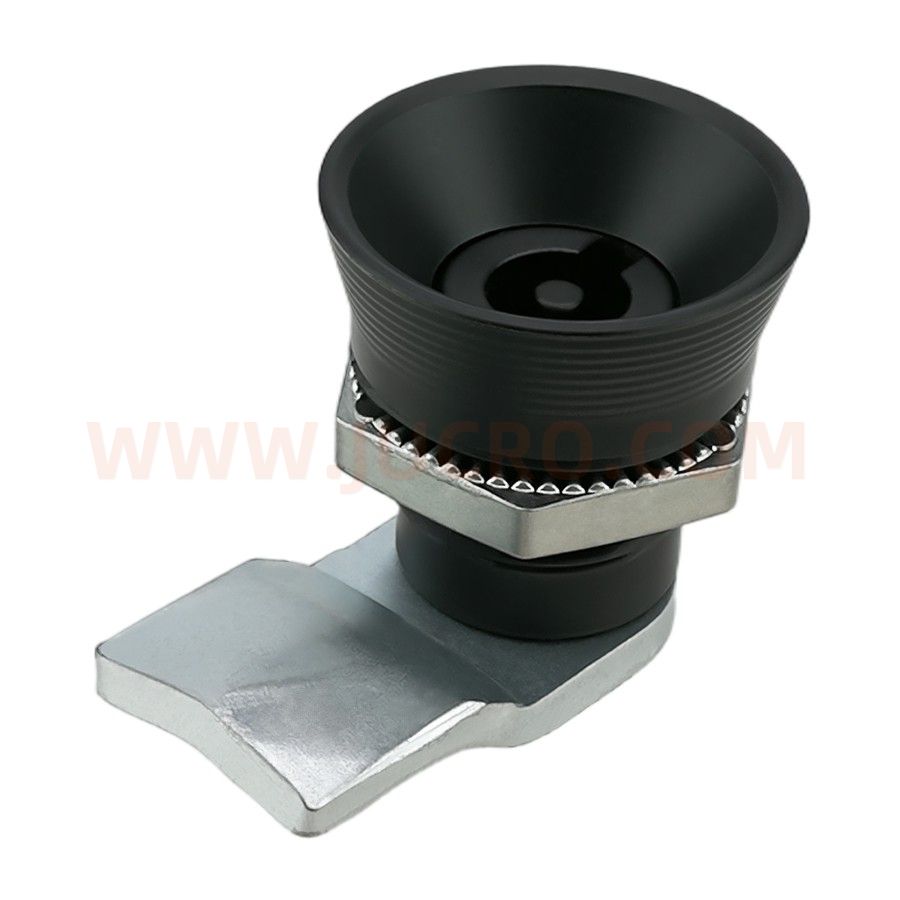

Cam Lock DL705-K02
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、锁芯，碳钢钢栓 Zinc alloy housing and Lock core, carbon steel bolt |
表面处理 Surface treatment | 喷漆基座、锁芯, 镀白锌钢栓 Black painted housing and lock core, white zinc plated steel bolt |
结构说明 Structure descriPTion | 旋转90°实现开启或闭锁 Quarter-turn lock/un-lock |
备注 Remark | 选配钥匙 Optional Key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 210N |
***输入扭矩 Maximum input torque | 9N•m |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 20N•m |

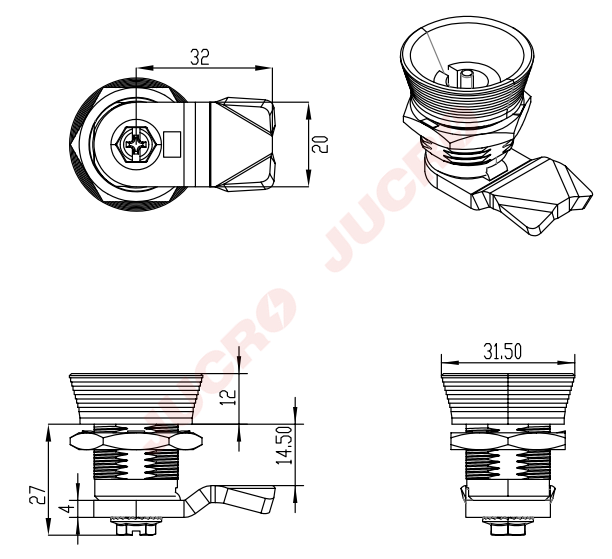

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
