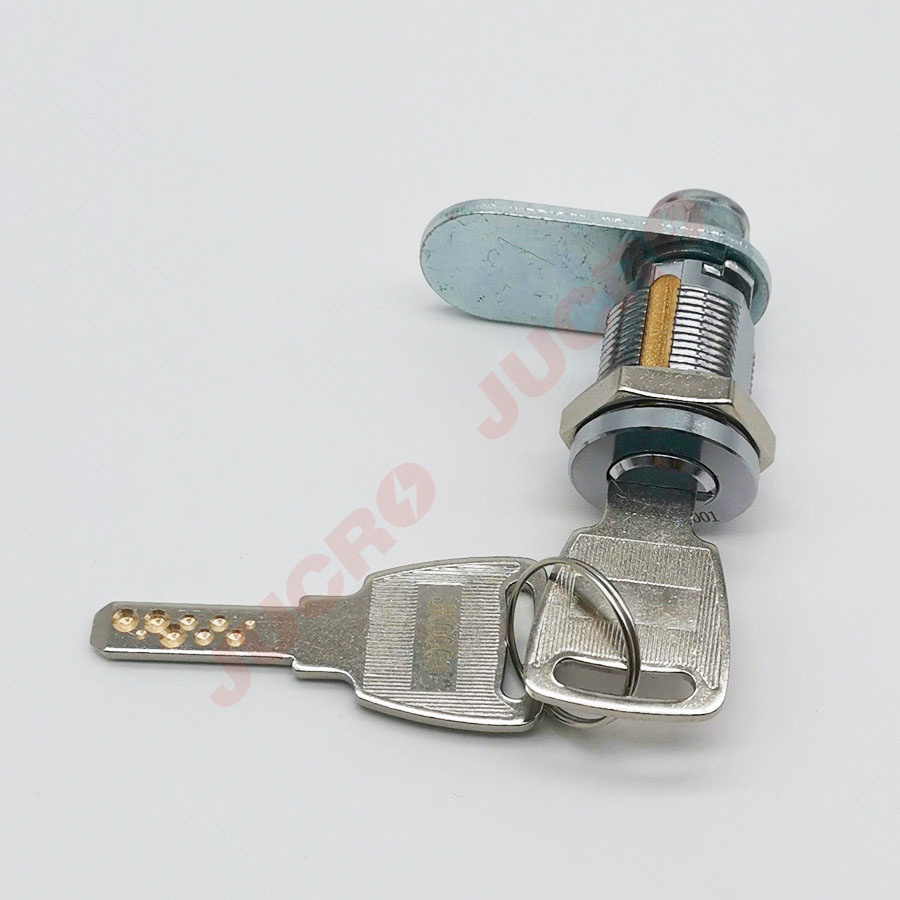

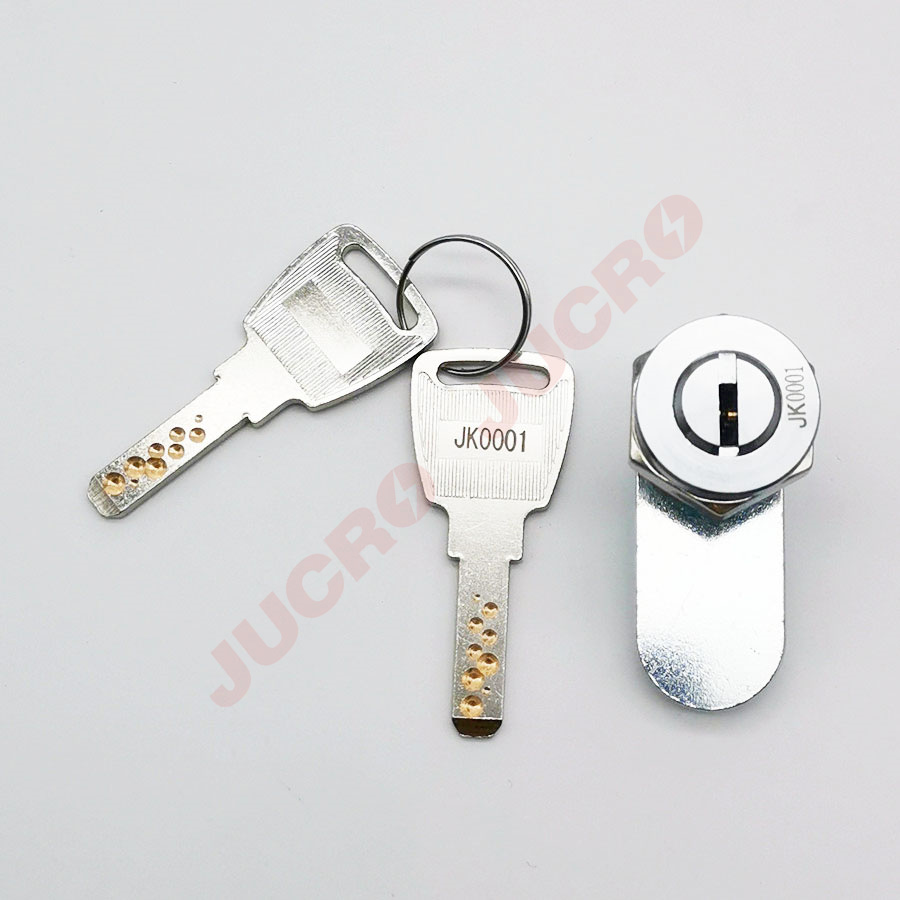

Cam Lock (DL531 High Security Lock)

Cam Lock (DL531 High Security Lock)

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy housing and Lock core, carbon steel bolt

表面处理

Surface treatment

基座镀亮光铬,钢栓镀白锌

Bright chrome plated housing, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

230N

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

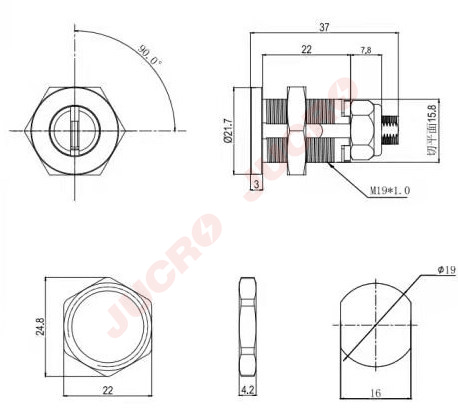

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm



No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy housing and Lock core, carbon steel bolt

表面处理

Surface treatment

基座镀亮光铬,钢栓镀白锌

Bright chrome plated housing, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

230N

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
