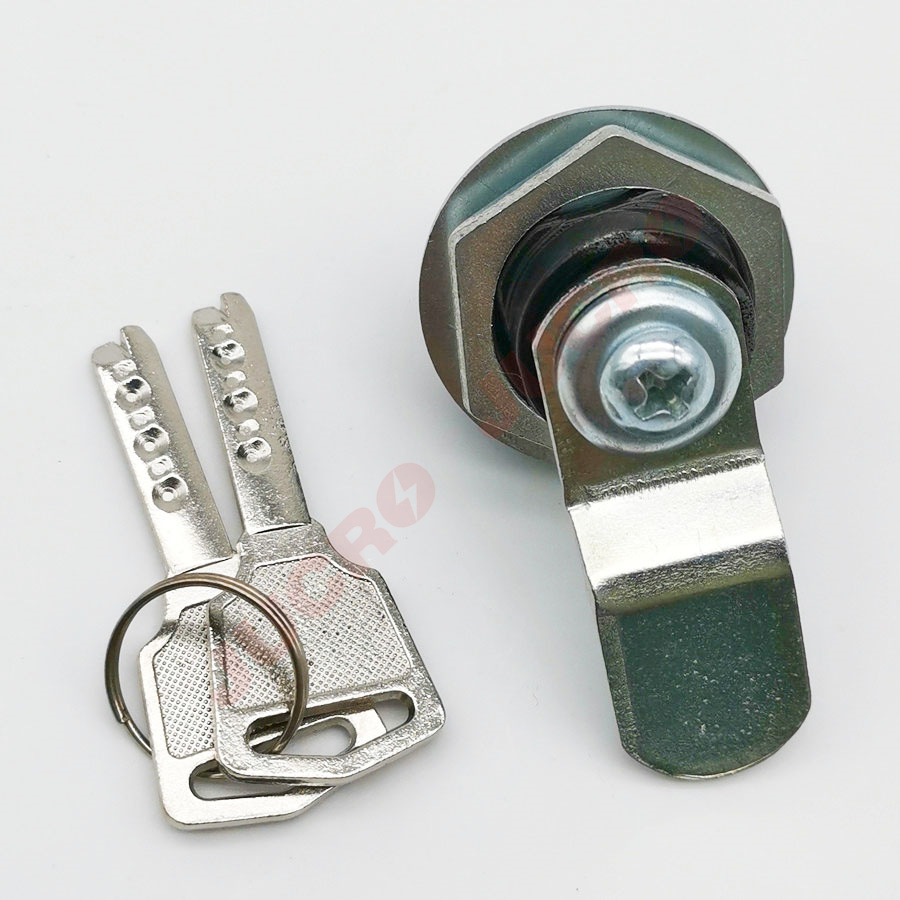

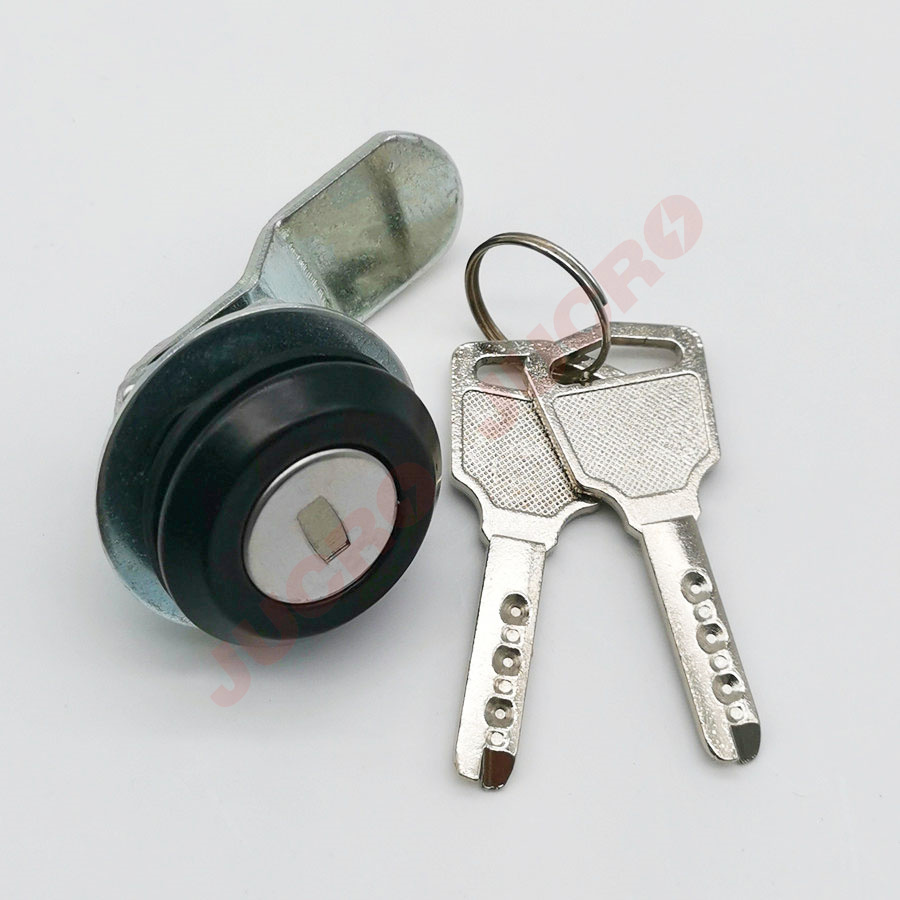

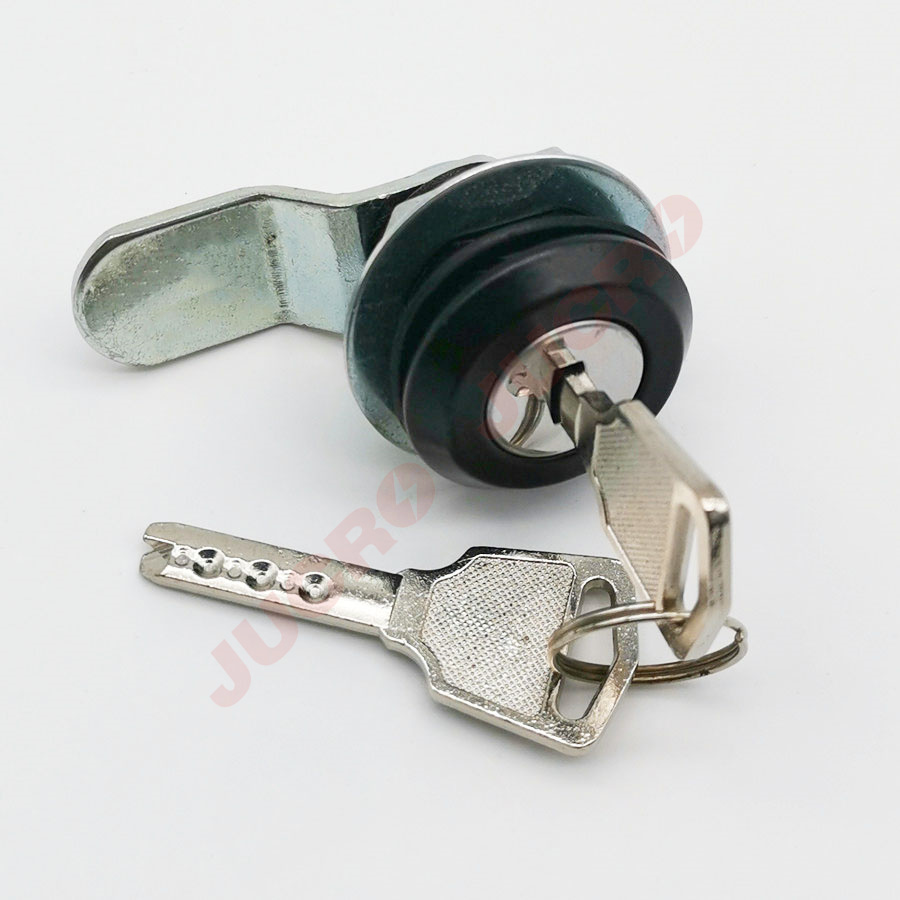

Cabinet cam lock DL407

Cabinet cam lock DL407

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base and Lock cylinder, Carbon steel bolt

表面处理

Surface treatment

基座喷漆黑色,钢栓镀白锌

Black spray paint for base, white zinc plating for steel bolt.

结构说明

Structure descriPTion

旋转180°实现开启或锁闭

Quarter-turn lock/un-lock

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

***输入扭矩

Maximum input torque

20Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

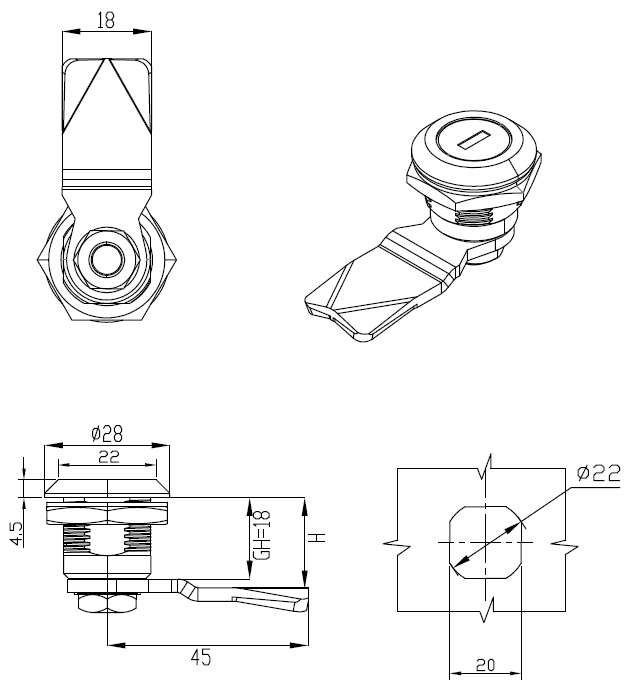

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm


No comment

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base and Lock cylinder, Carbon steel bolt

表面处理

Surface treatment

基座喷漆黑色,钢栓镀白锌

Black spray paint for base, white zinc plating for steel bolt.

结构说明

Structure descriPTion

旋转180°实现开启或锁闭

Quarter-turn lock/un-lock

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

***输入扭矩

Maximum input torque

20Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
