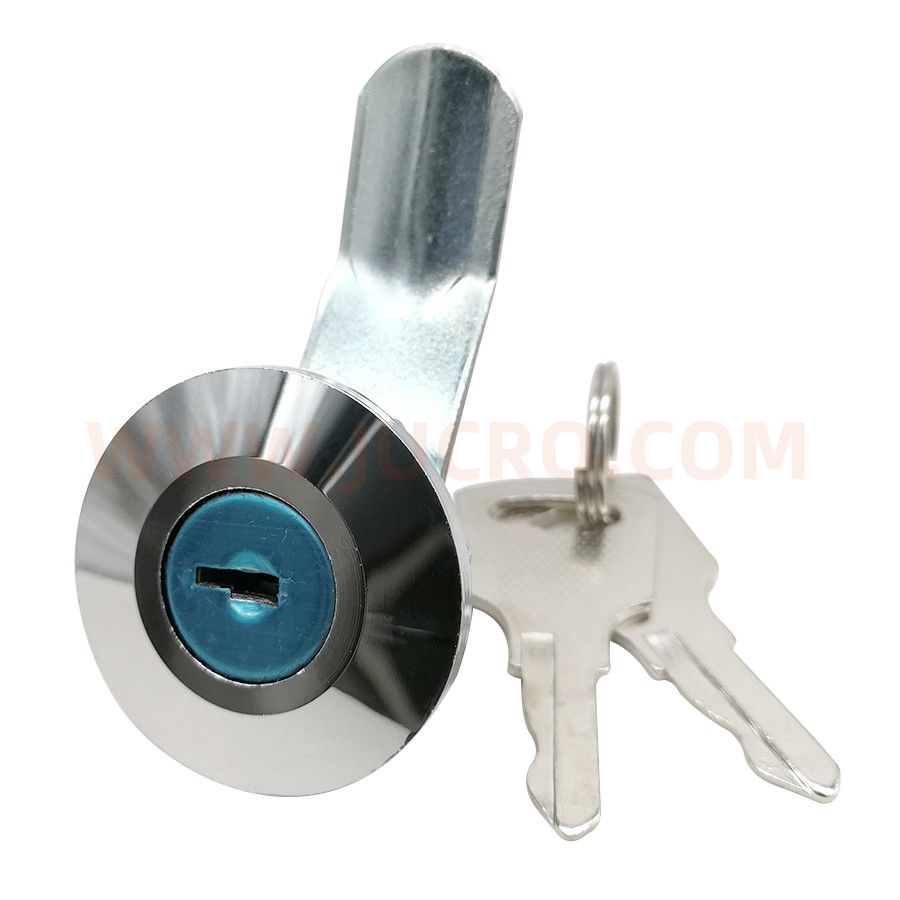

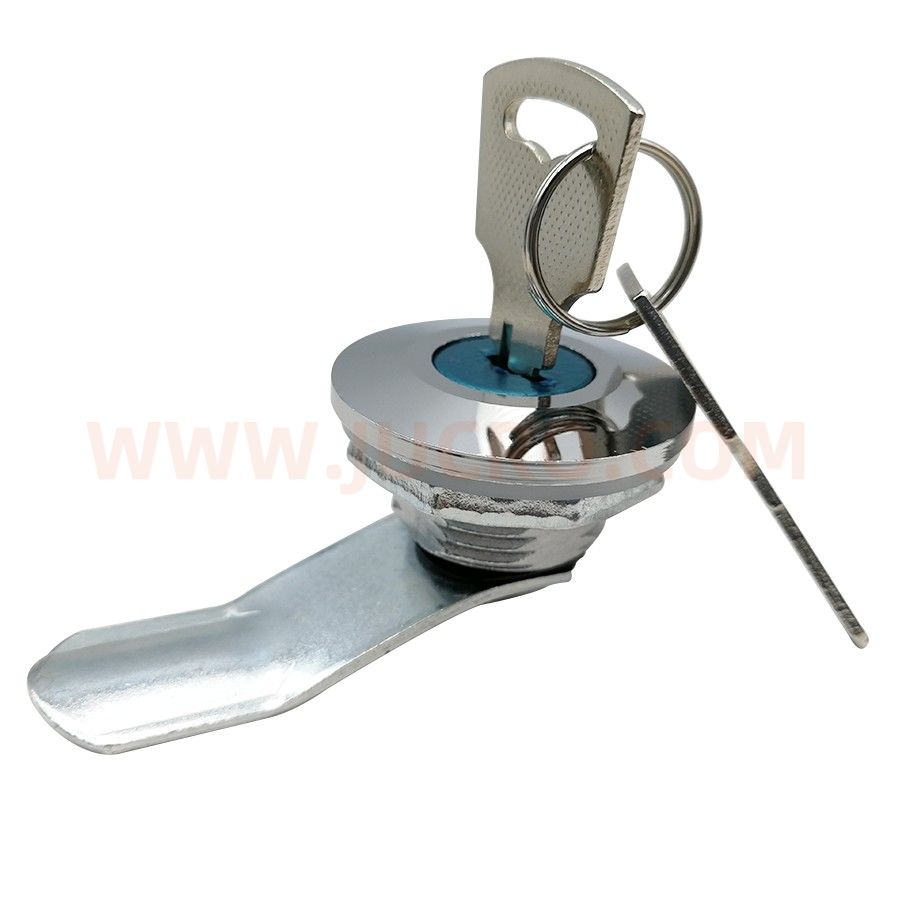

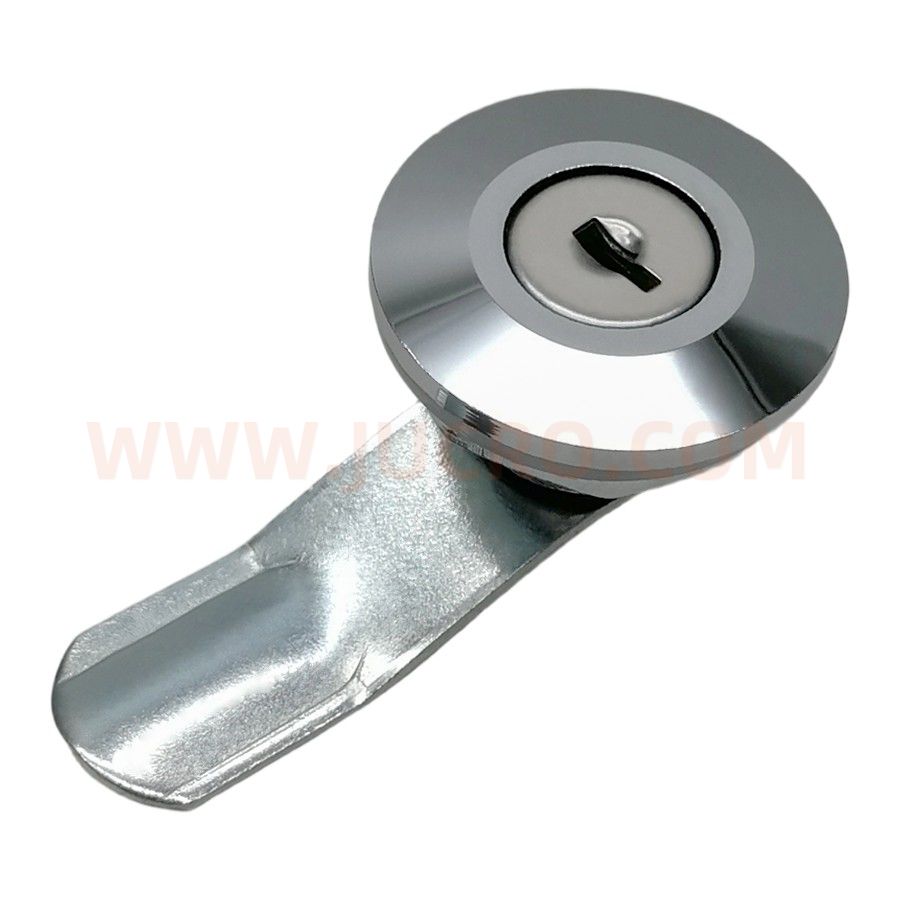

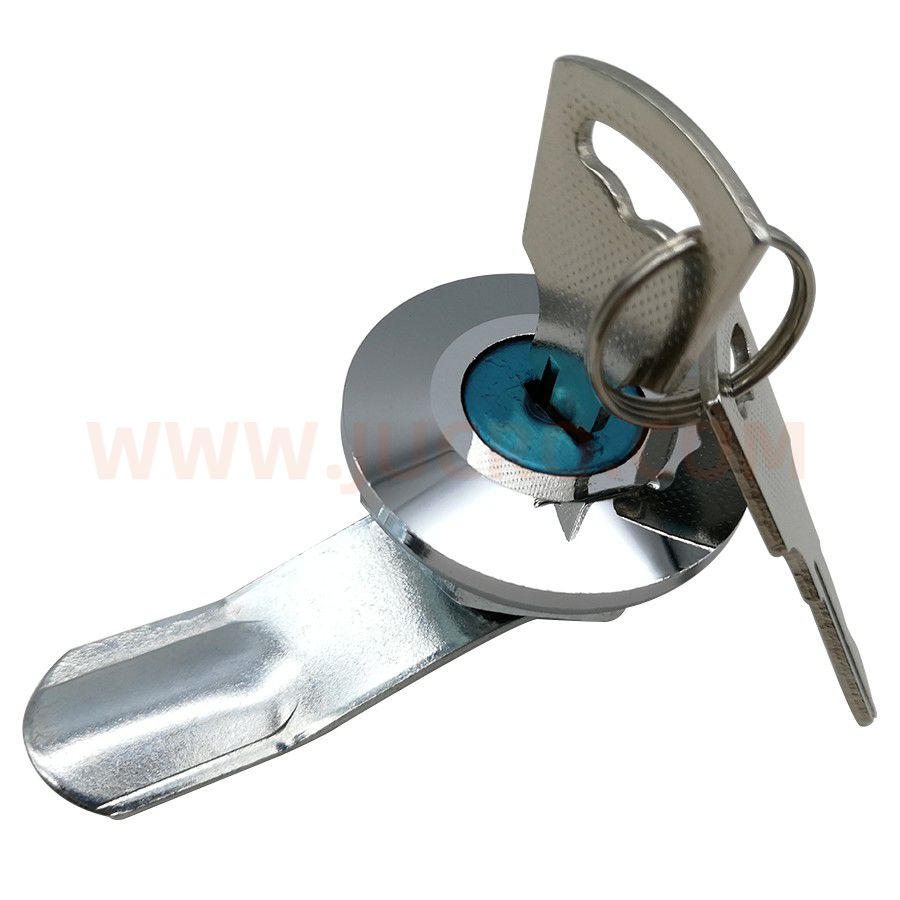

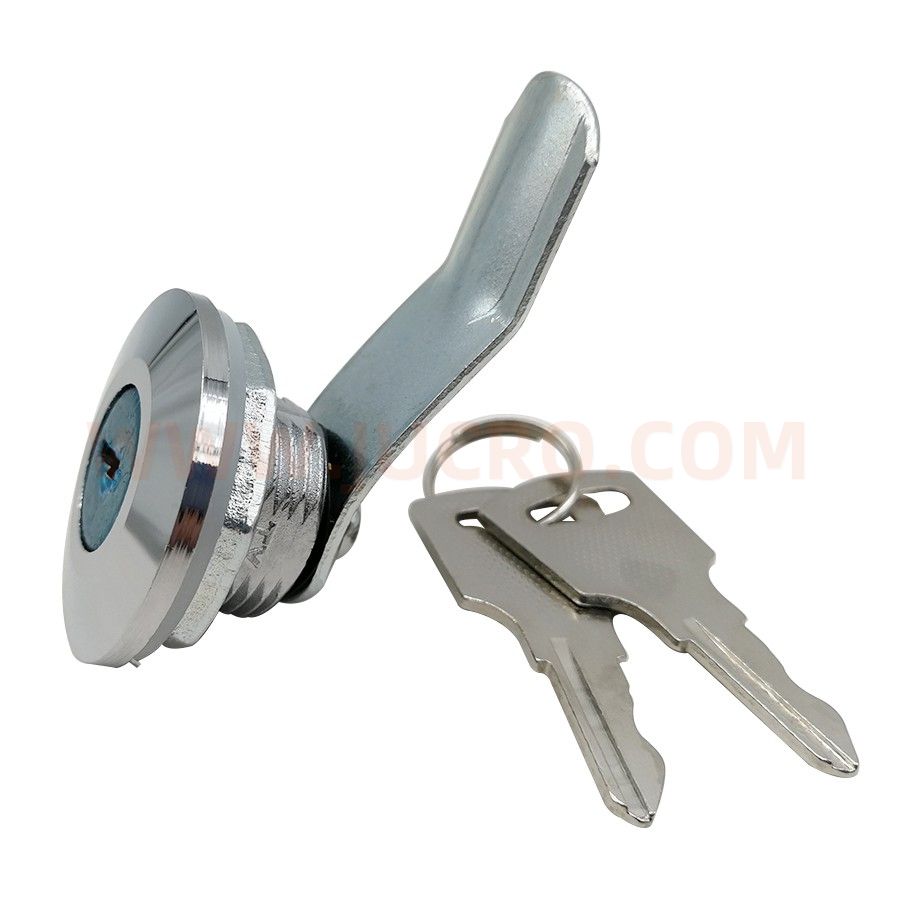

Cabinet cam lock DL401-1

Cabinet cam lock DL401-1

Product Detail

特征说明 CHARACTERISTICS


Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base and Lock cylinder, Carbon steel bolt


表面处理

Surface treatment

基座及锁芯镀亮铬,钢栓镀白锌

Bright chrome plated for base and lock cylinder, white zinc plating for steel bolt.


结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock


Remark

选配钥匙

Optional key


性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

100N

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

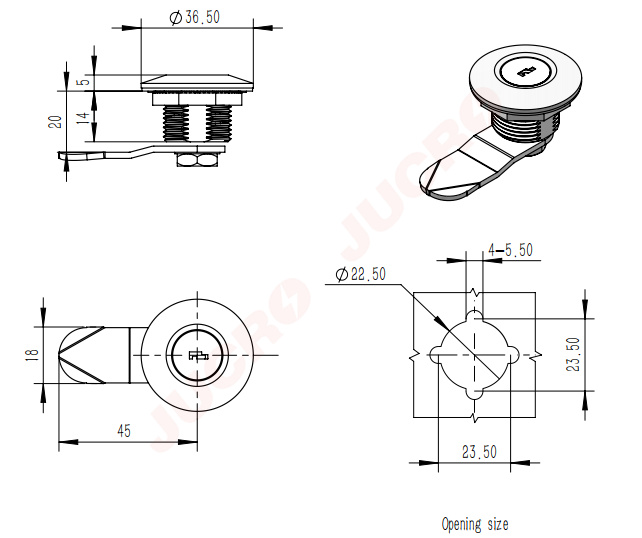

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS


Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base and Lock cylinder, Carbon steel bolt


表面处理

Surface treatment

基座及锁芯镀亮铬,钢栓镀白锌

Bright chrome plated for base and lock cylinder, white zinc plating for steel bolt.


结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock


Remark

选配钥匙

Optional key


性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

100N

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
