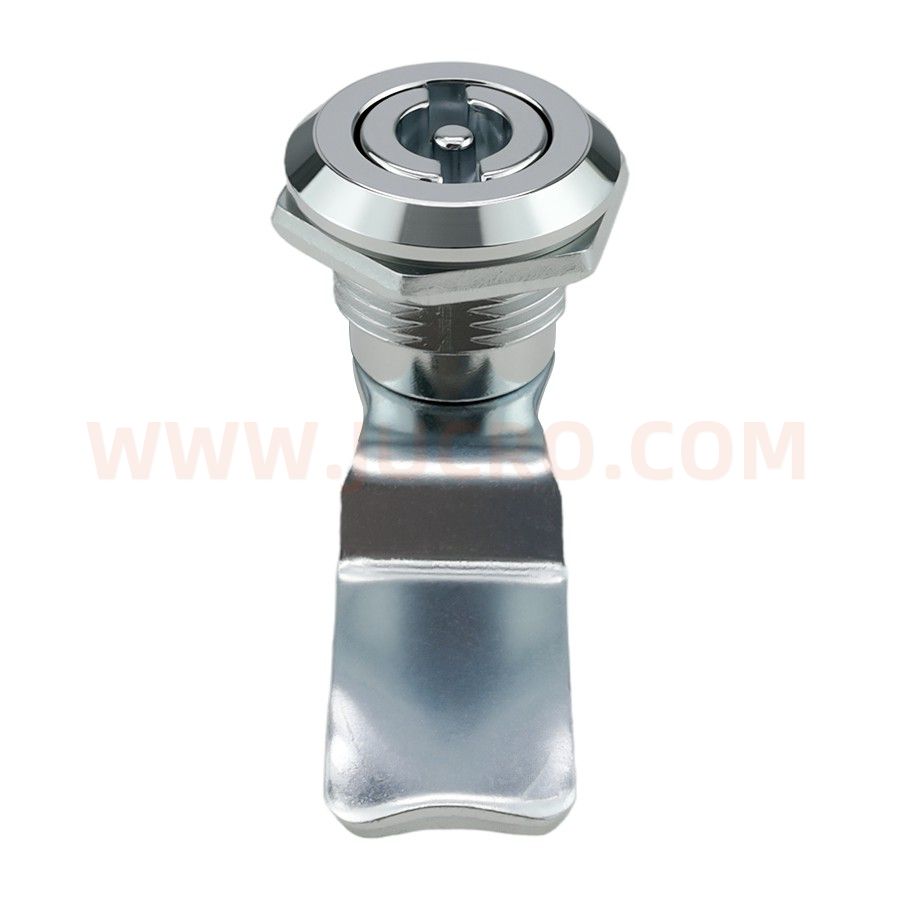

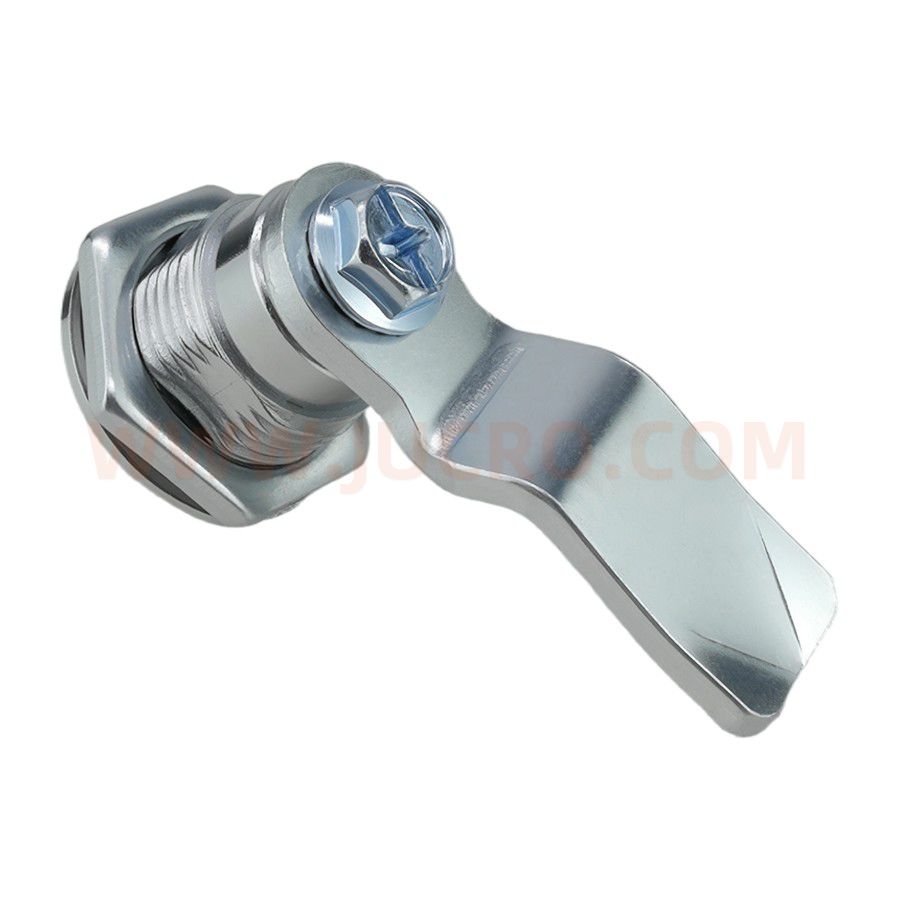

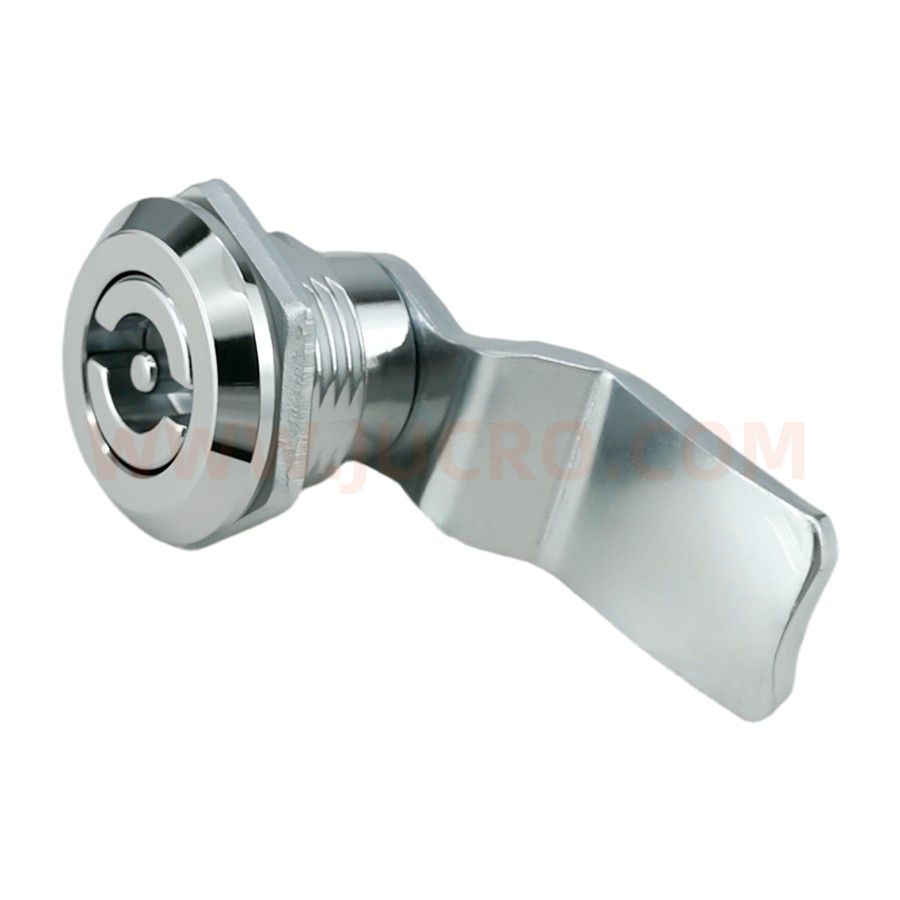

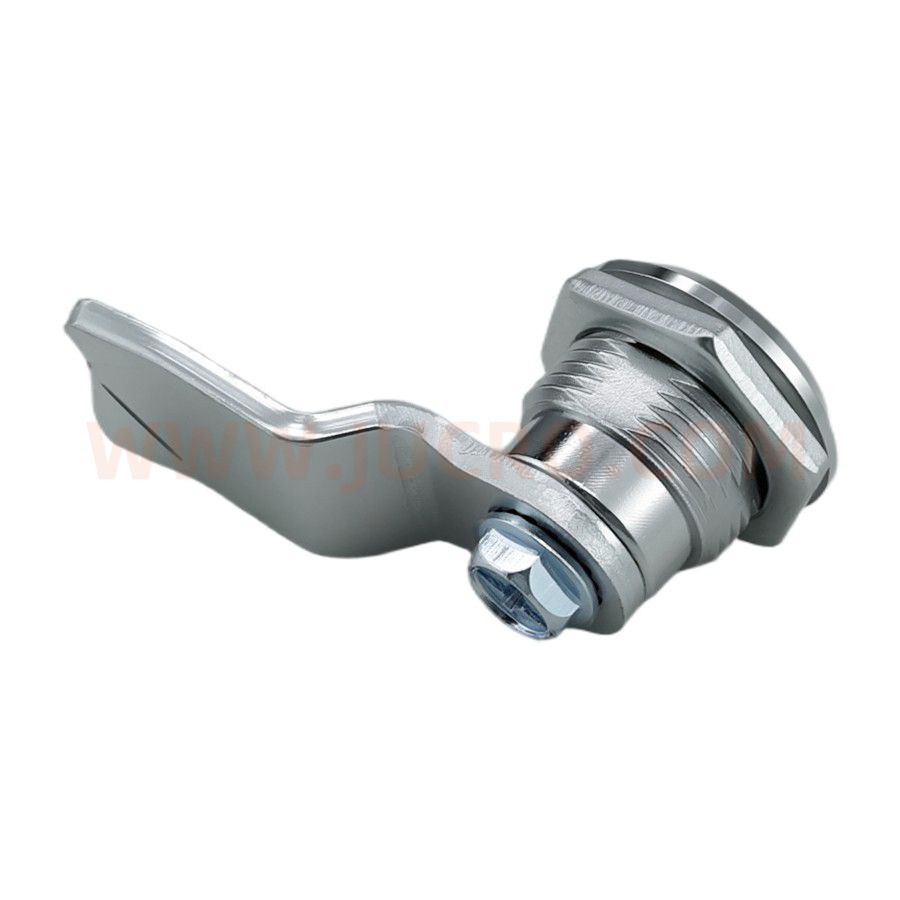

CAM LOCKS ( DL705-1 Bright chrome)

CAM LOCKS ( DL705-1 Bright chrome)

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base and Lock cylinder, carbon steel bolt

表面处理

Surface treatment

基座及锁芯镀亮光铬,钢栓镀白锌

Bright chrome plated for base and lock cylinder, white zinc plating for steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock

备 注

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

***输入扭矩

Maximum input torque

9Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

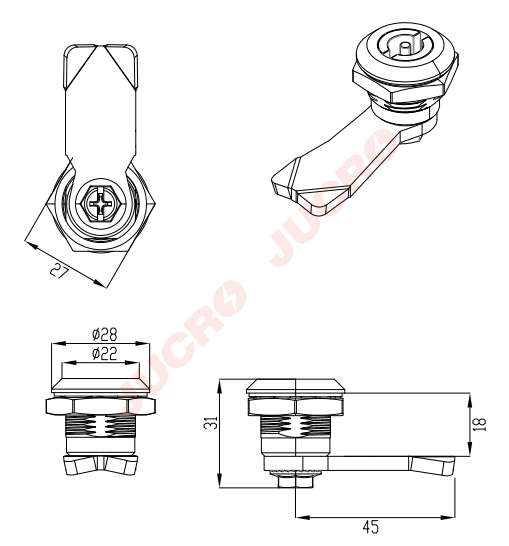

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base and Lock cylinder, carbon steel bolt

表面处理

Surface treatment

基座及锁芯镀亮光铬,钢栓镀白锌

Bright chrome plated for base and lock cylinder, white zinc plating for steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock

备 注

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

***输入扭矩

Maximum input torque

9Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
