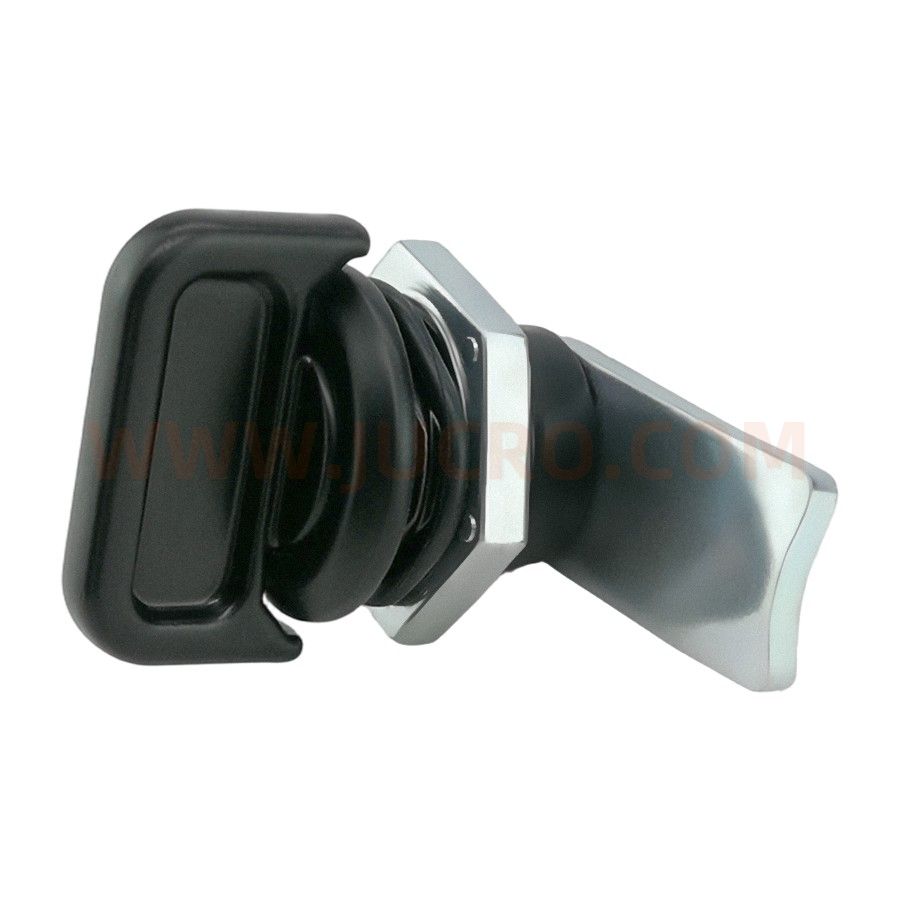

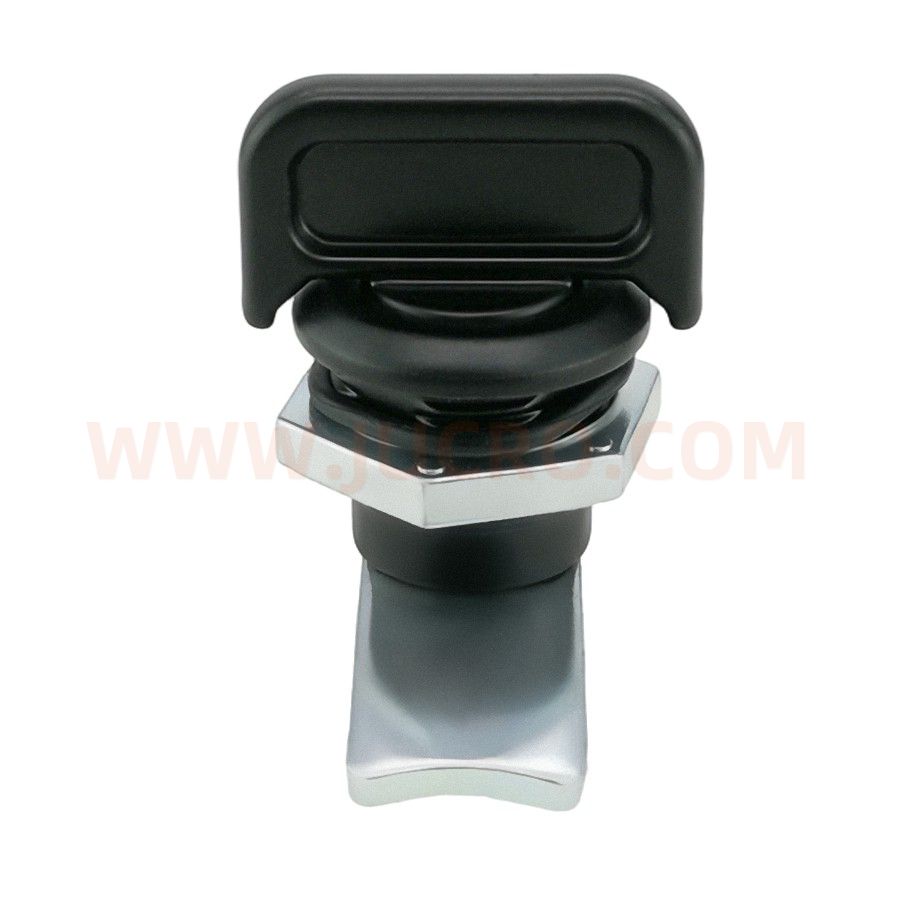

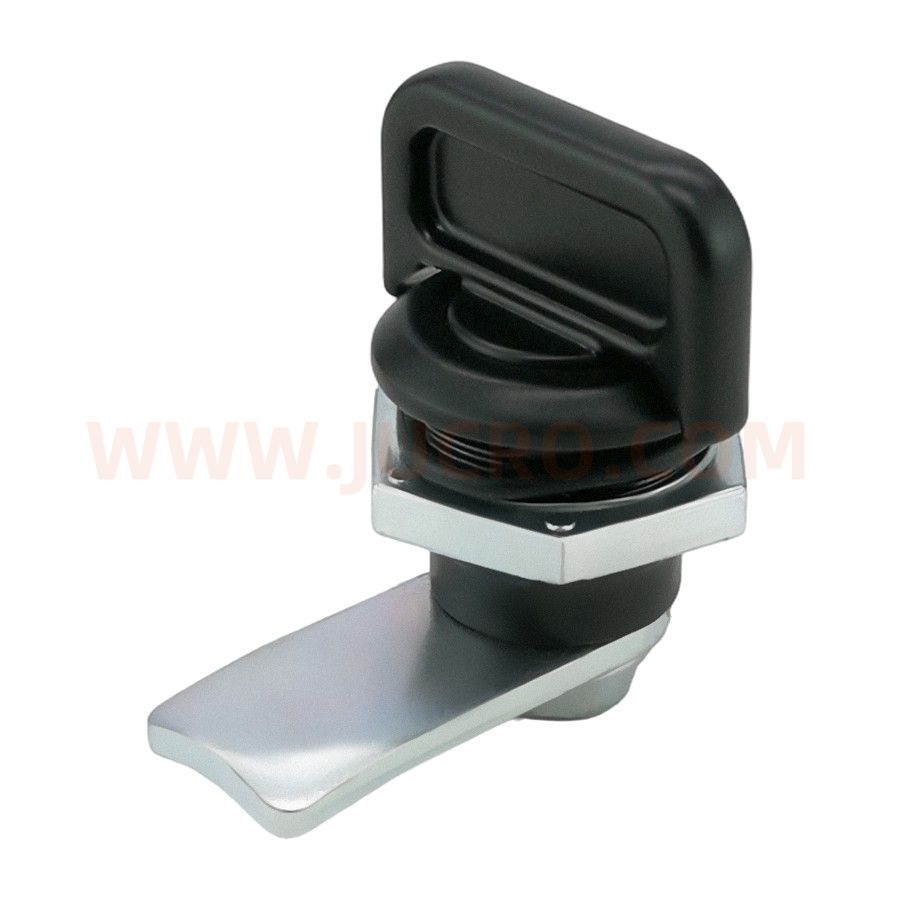

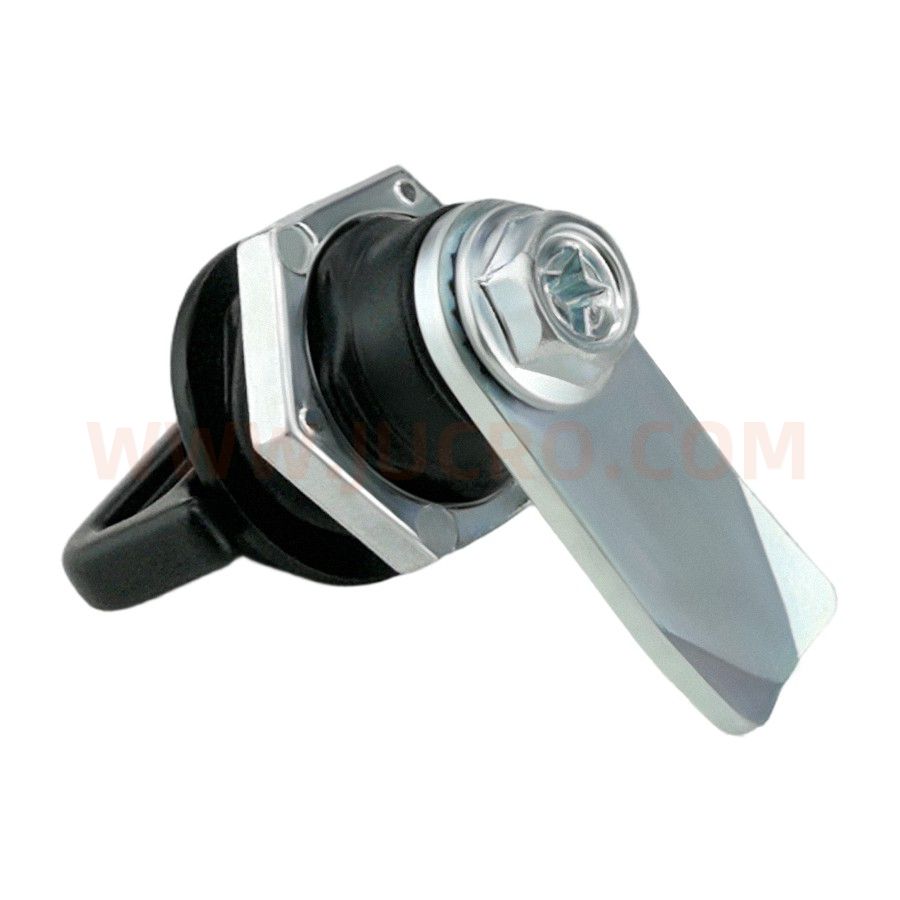

CAM LOCK (DL845-3)

CAM LOCK (DL845-3)

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base and Lock cylinder, carbon steel bolt

表面处理

Surface treatment

喷塑(黑淡光)基座、锁芯,钢栓镀白锌

Black powder coated base and lock cylinder, white zinc plating for steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

220N

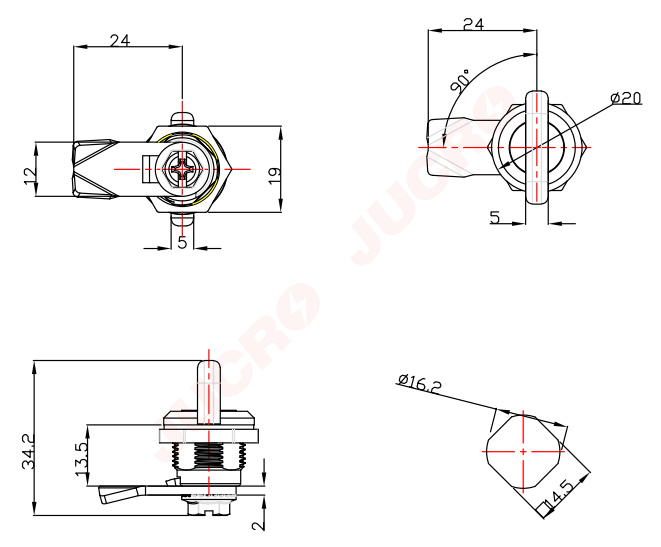

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base and Lock cylinder, carbon steel bolt

表面处理

Surface treatment

喷塑(黑淡光)基座、锁芯,钢栓镀白锌

Black powder coated base and lock cylinder, white zinc plating for steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

220N



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
