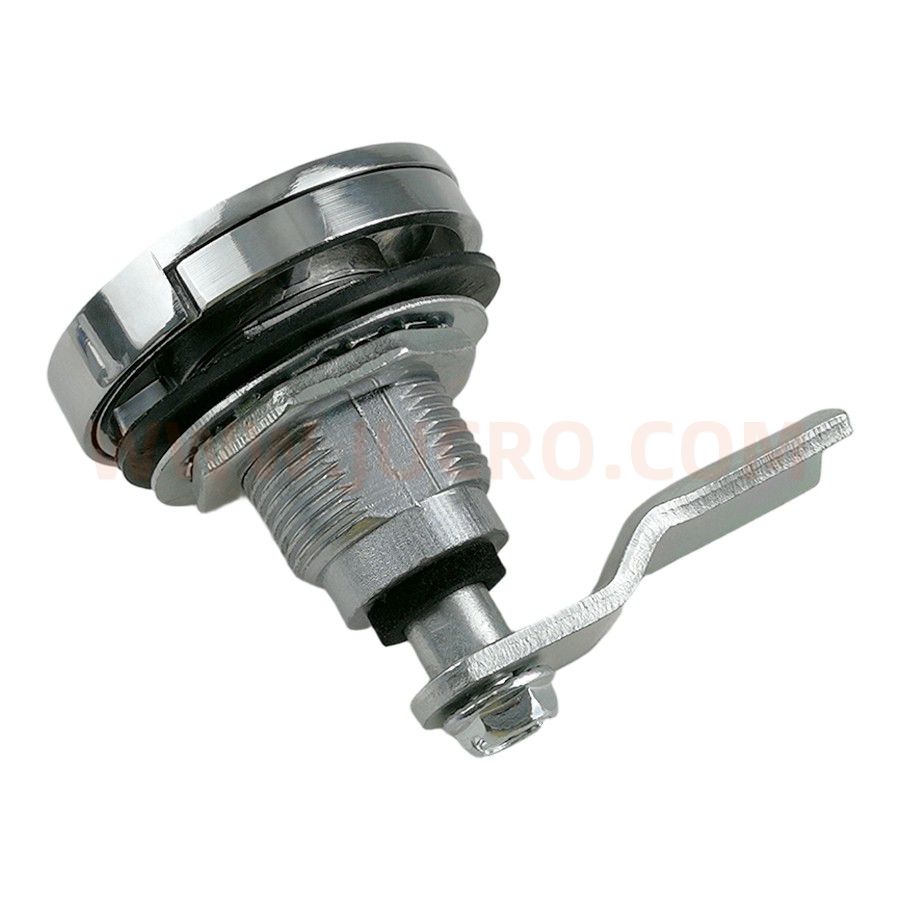

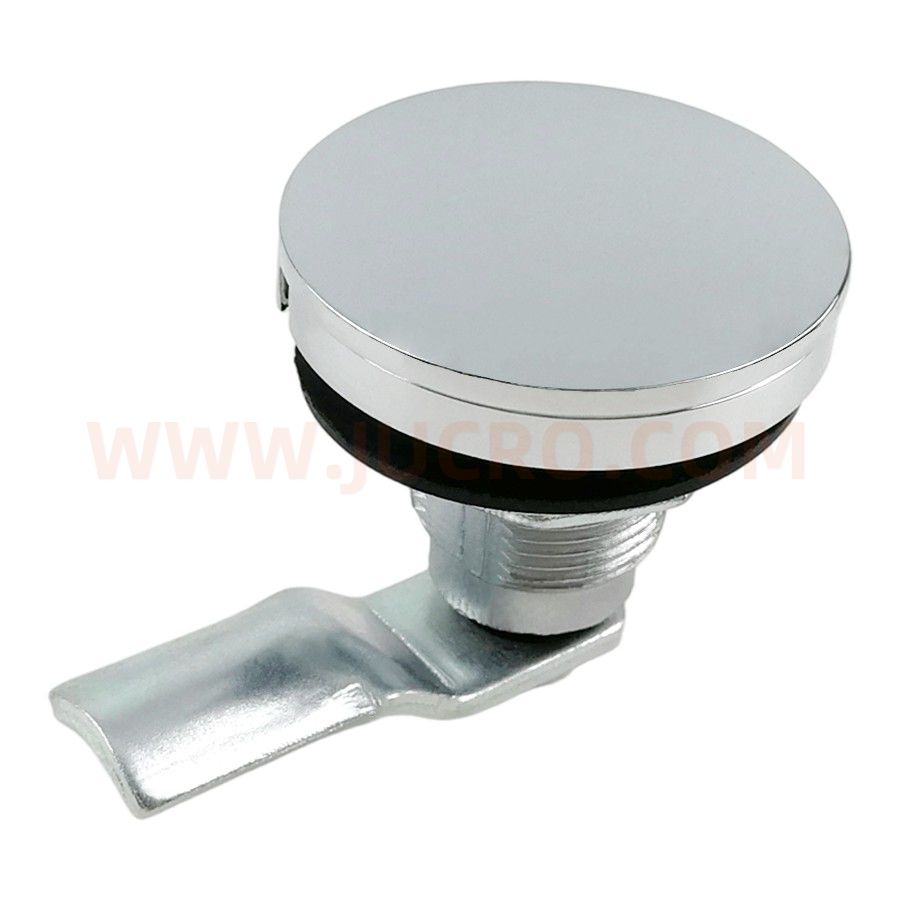

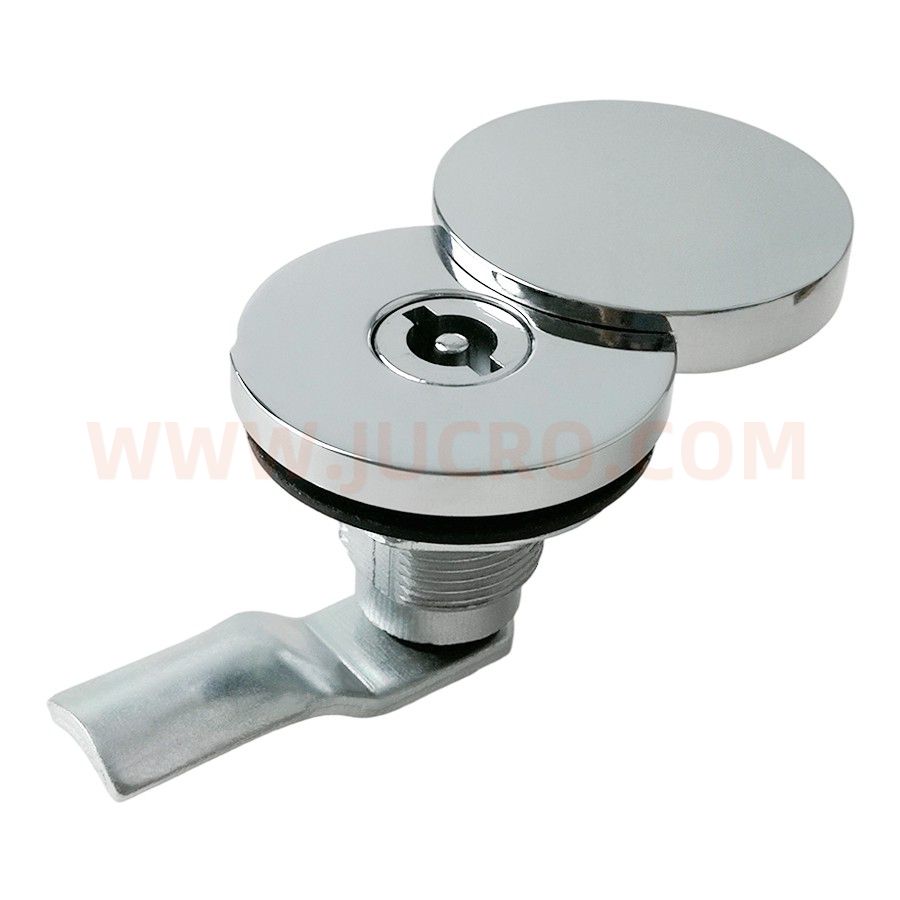

CAM LOCK (DL823)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座，锁芯，碳钢钢栓 Zinc alloy housing and Lock cylinder, carbon steel bolt |
表面处理 Surface treatment | 镀亮光铬基座，锁芯，镀白锌钢栓 Bright chrome plated housing, lock cylinder, white zinc plated steel bolt |
结构说明 Structure descriPTion | 90”旋转实现开启或锁闭，具有锁紧功能 Quarter-turn lock/un-lock, with compression function |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
***静载荷 Maximum static load |
100N |
|
固定螺母的推荐拧紧力矩 Recommended nut tightening torque |
20N.m |
|
***输入扭矩 Maximum input torque |
12N.m |
备注：以上数据为***静荷载。
Remark：Theabovedata is maximum static load.

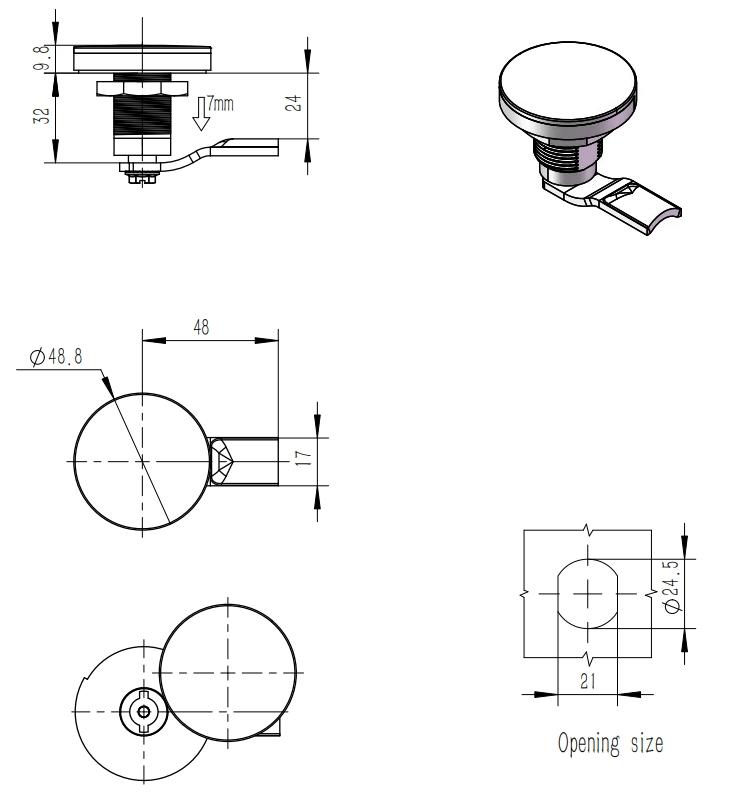

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
|
