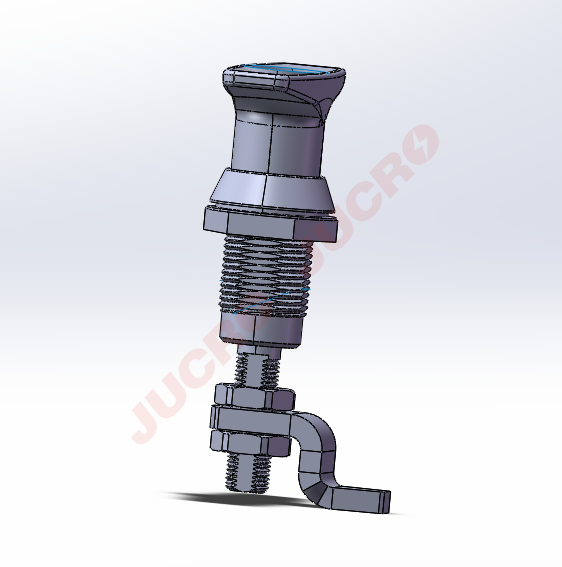

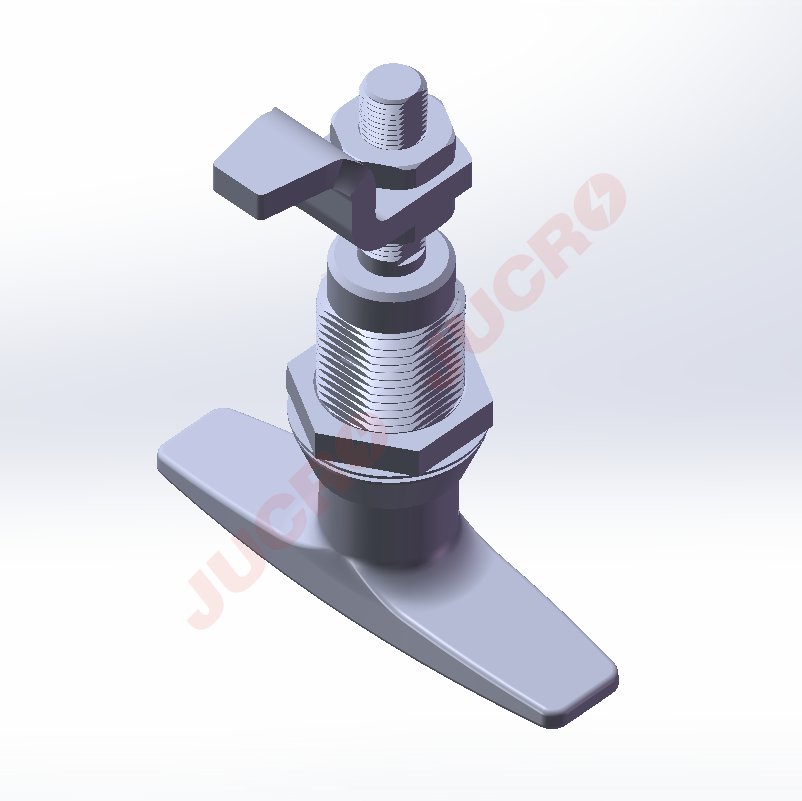

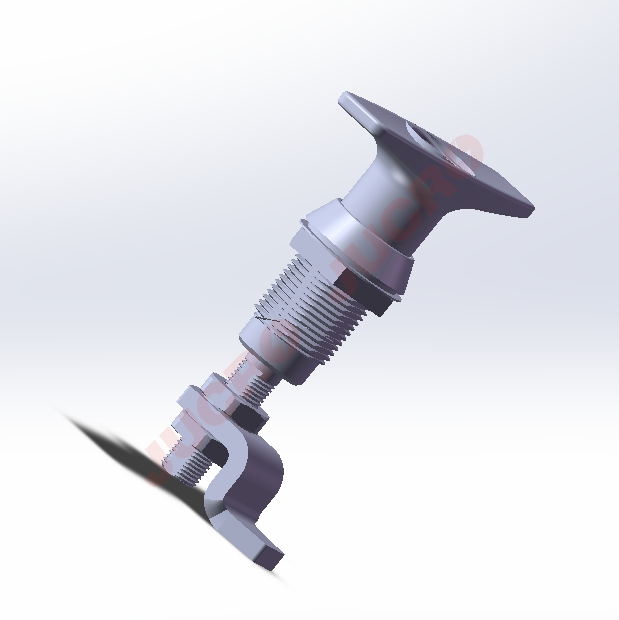

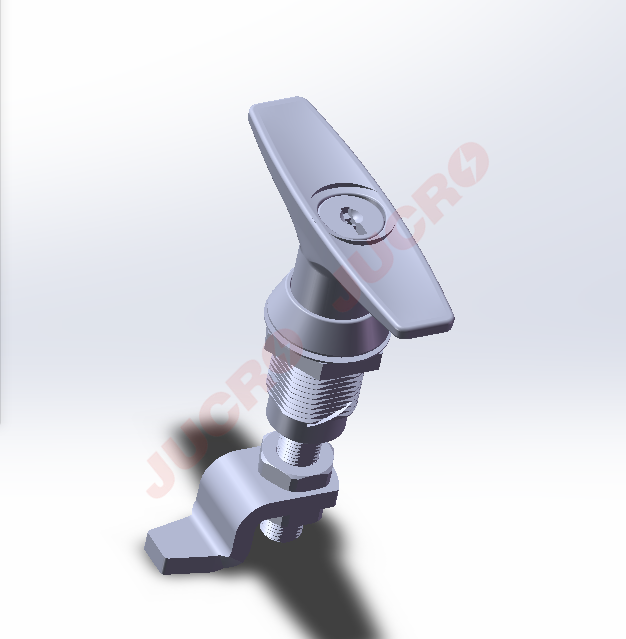

CAM LOCK (DL816A-21)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄、锁芯，碳钢钢栓 Zinc alloy base, handle and Lock cylinder, carbon steel bolt |
表面处理 Surface treatment | 基座及手柄喷黑麻面，钢栓镀白锌 Pitted black painted base and handle, white zinc plating for steel bolt |
结构说明 Structure descriPTion | 手柄共旋转200°，前120°转轴伸缩约7mm，后80°钢栓旋转，锁开启 Total rotation 200°, the first 120° rotating shaft telescopic about 7mm, the rear 80° steel bolt rotation, unlocking |
备 注 Remark | 选配钥匙 Optional key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 300N |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 20N•m |

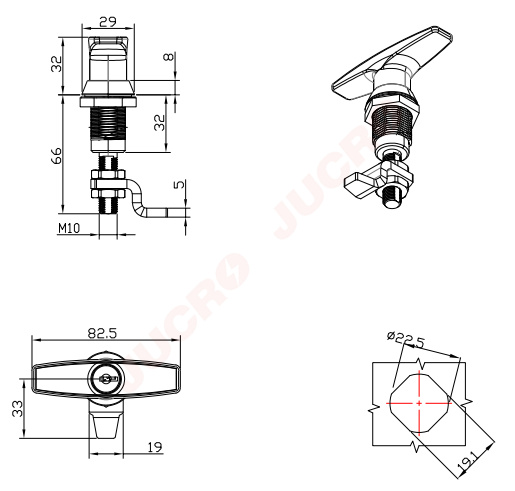

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
