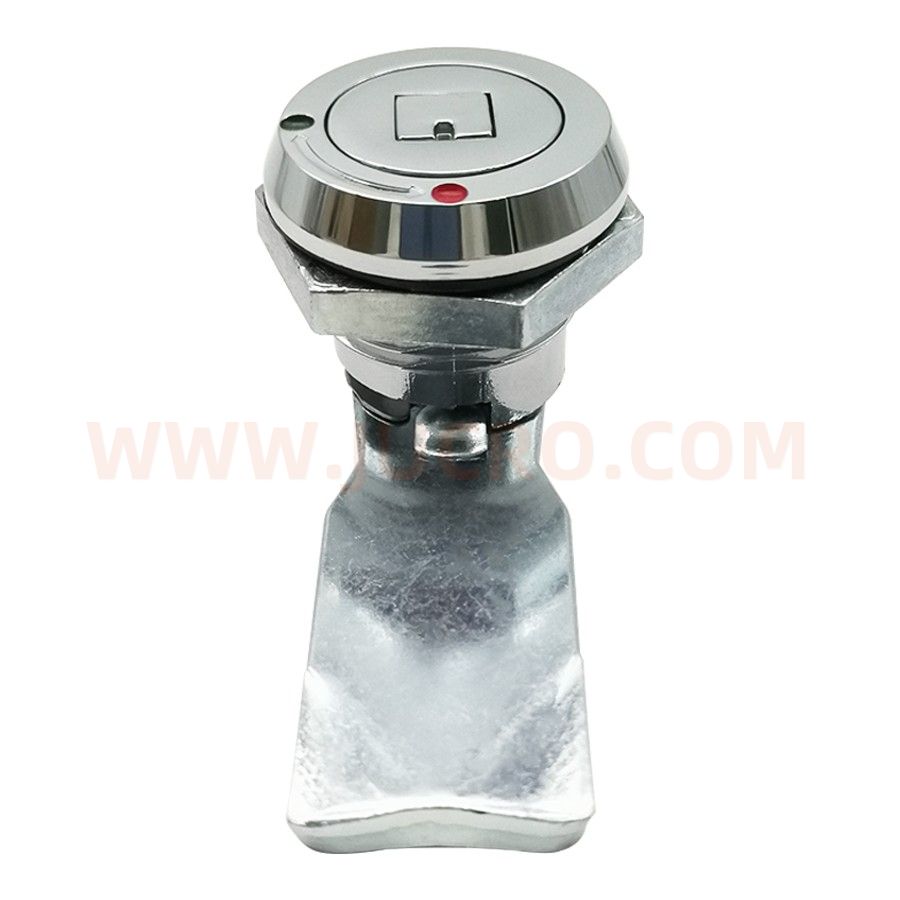

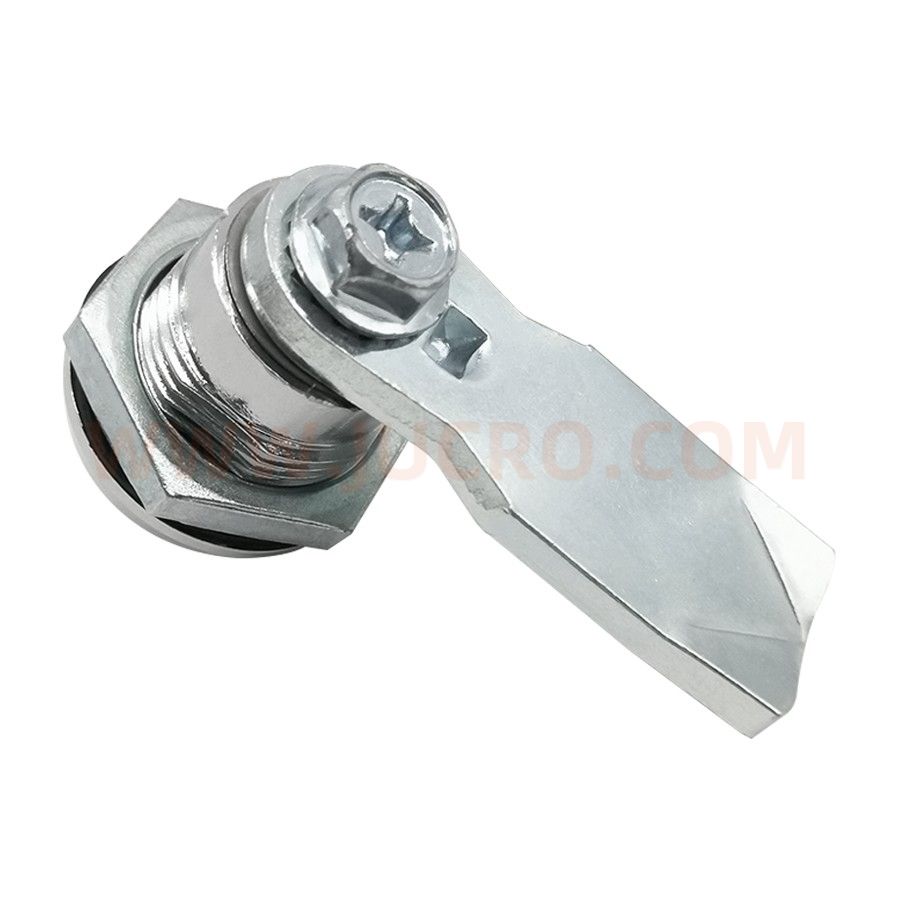

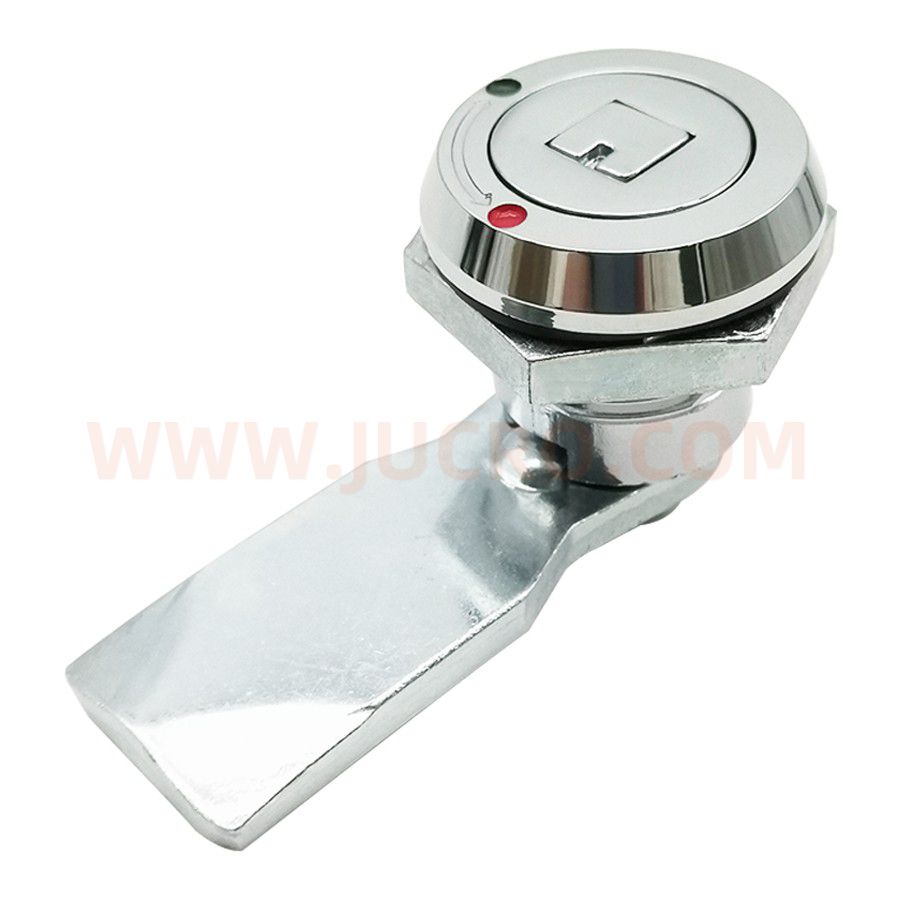

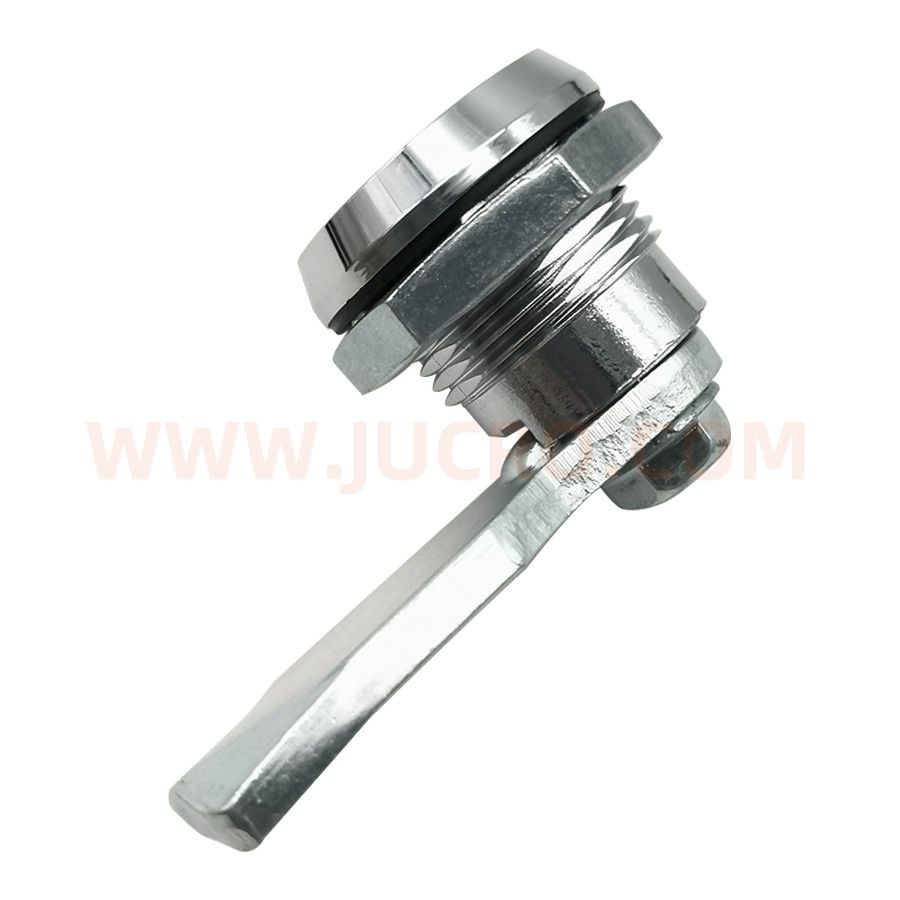

CAM LOCK (DL773-2 Square)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、锁芯，碳钢锁舌 Zinc alloy housing、Lock cylinder, carbon steel lock cam |
表面处理 Surface treatment | 镀亮光铬基座、锁芯，锁舌 Bright chrome plated housing and lock cylinder, white zinc plated lock cam |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭 Quarter-turn lock/un-lock |

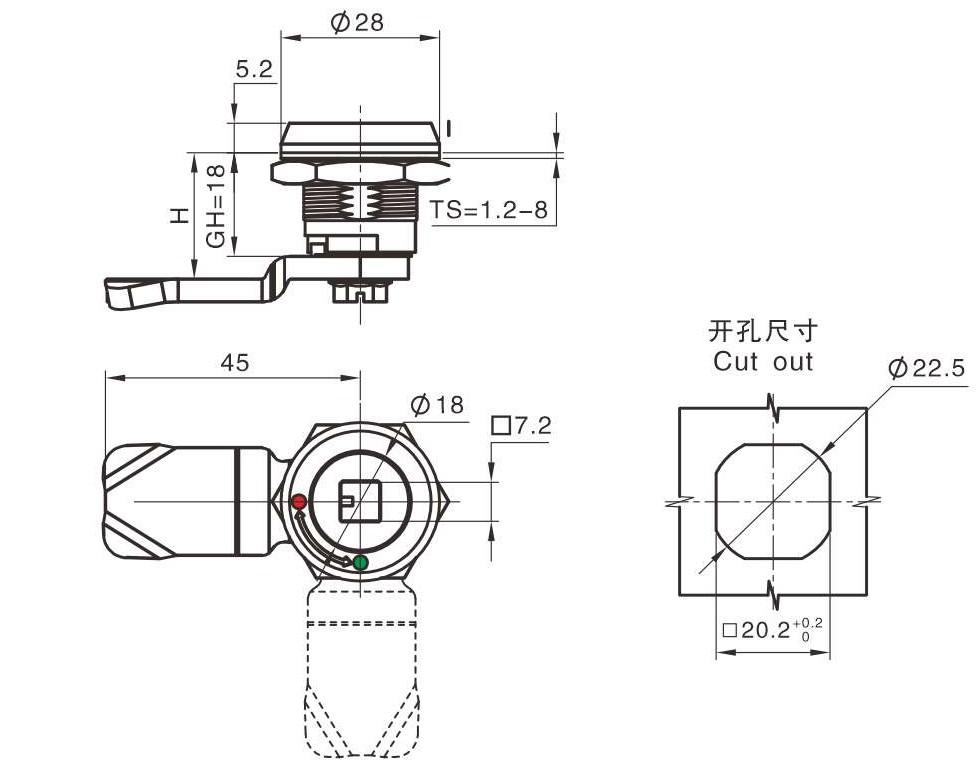

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm
|
