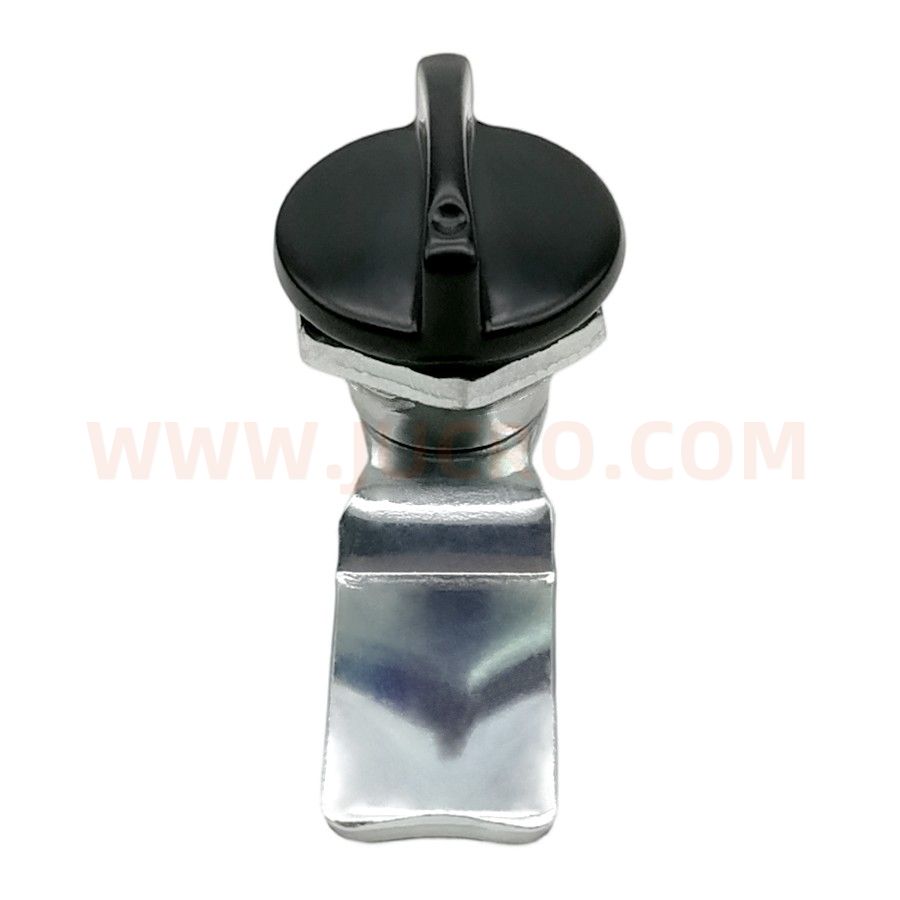

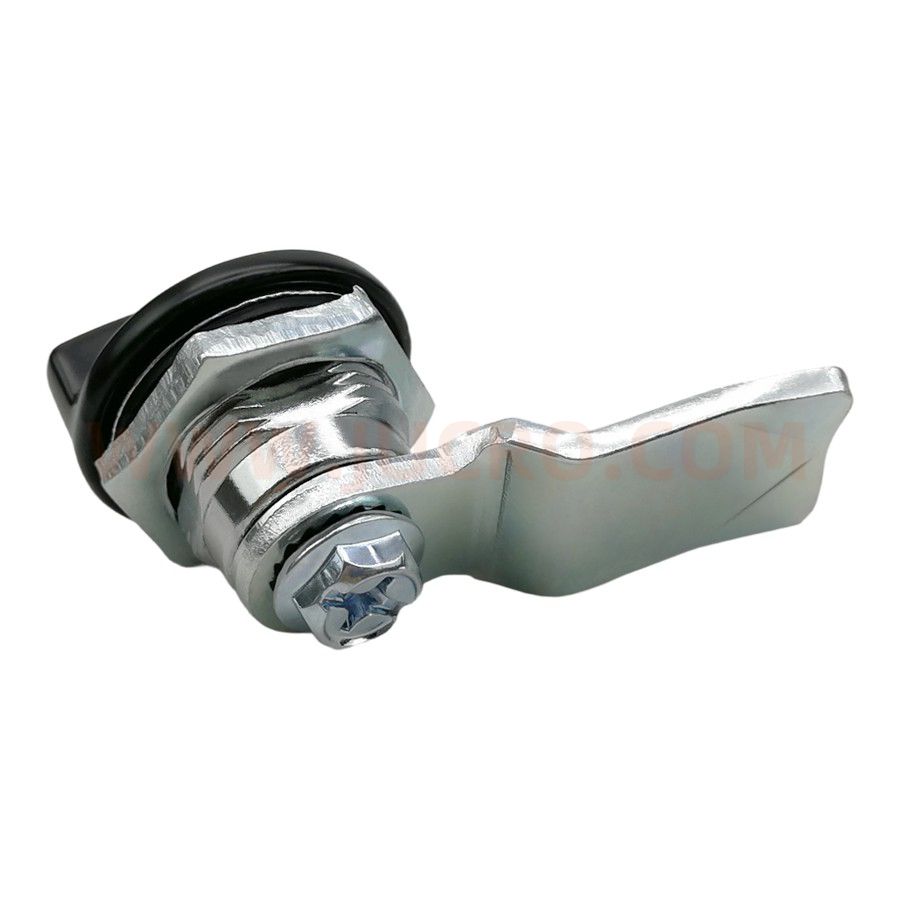

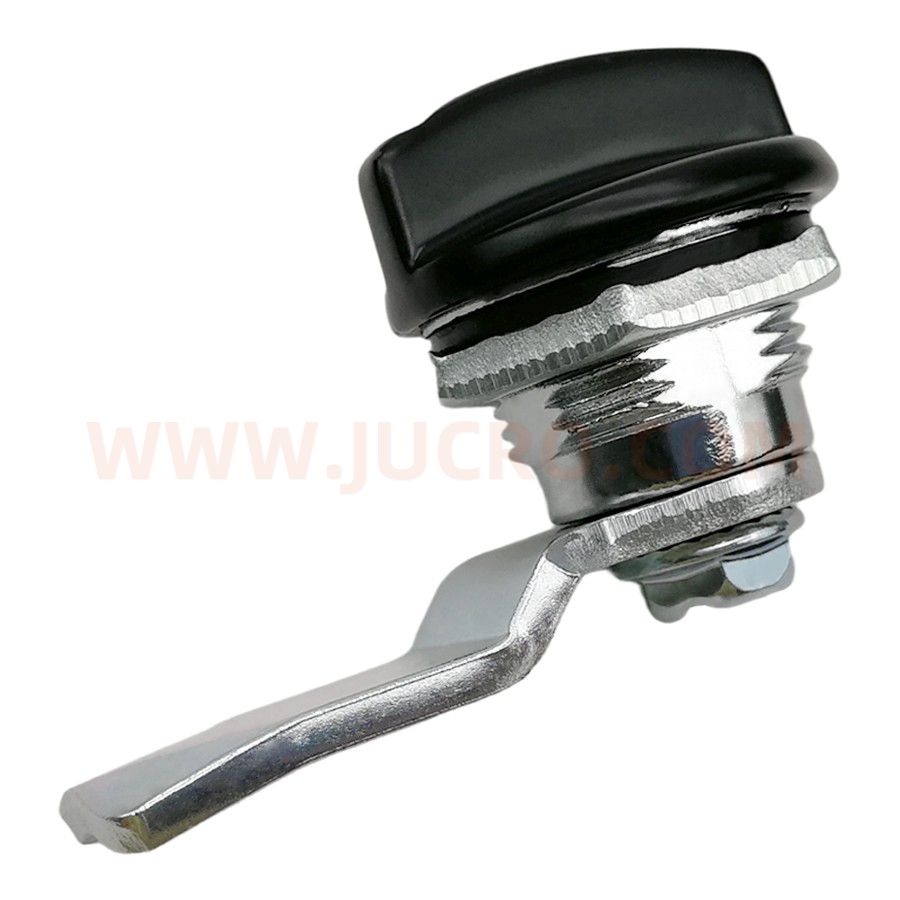

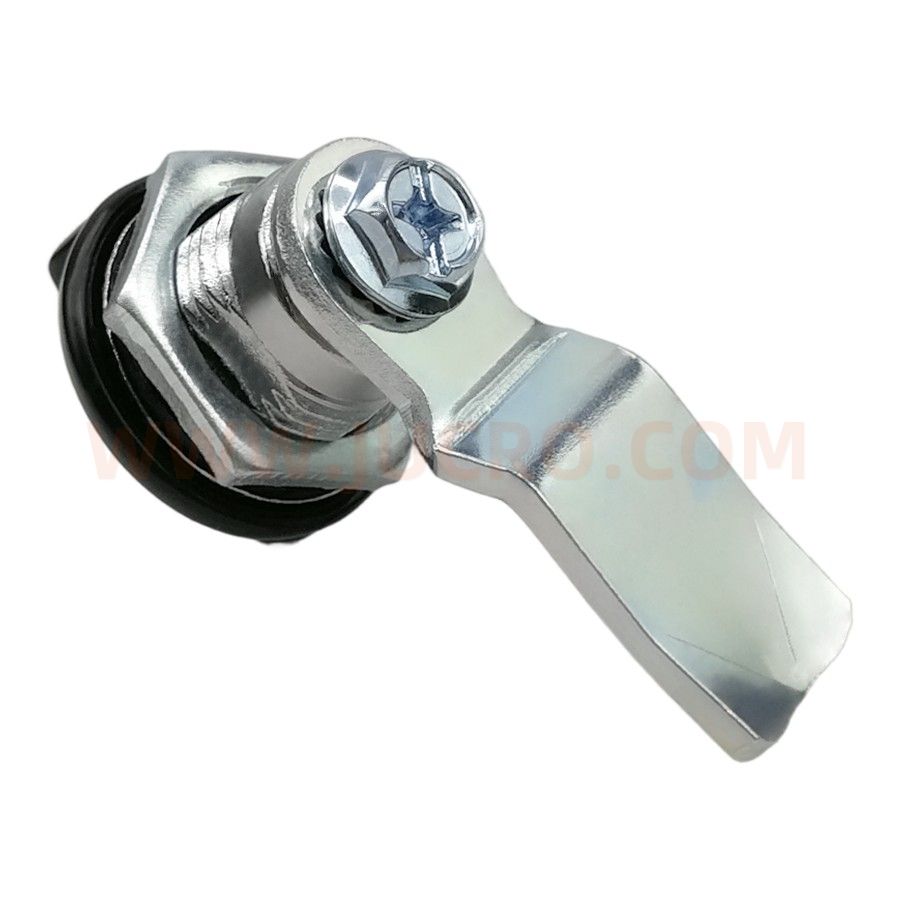

CAM LOCK (DL715-2)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座，PA把手，碳钢钢栓 Zinc alloy housing , PA handle, carbon steel bolt |
表面处理 Surface treatment | 镀亮光铬基座，镀白锌钢栓 Bright chrome plated housing, white zinc plated steel bolt |
结构说明 Structure descriPTion | 旋转90°实现开启或闭锁 Quarter-turn Lock/un-lock |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
***静载荷 Maximum static load |
270N |
|
***输入扭矩 Maximum input torque |
9N•m |
|
固定螺母的推荐拧紧力矩 Recommended nut tightening torque |
20N•m |
|

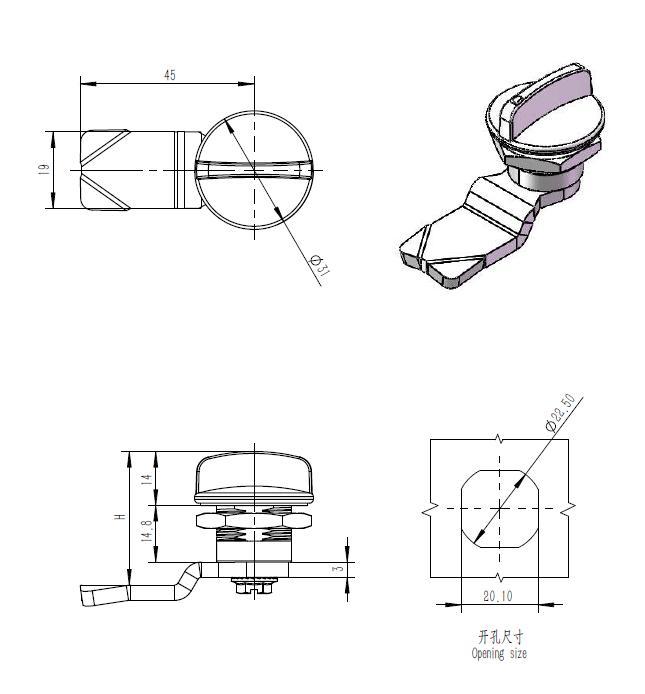

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
|
|
|
|
