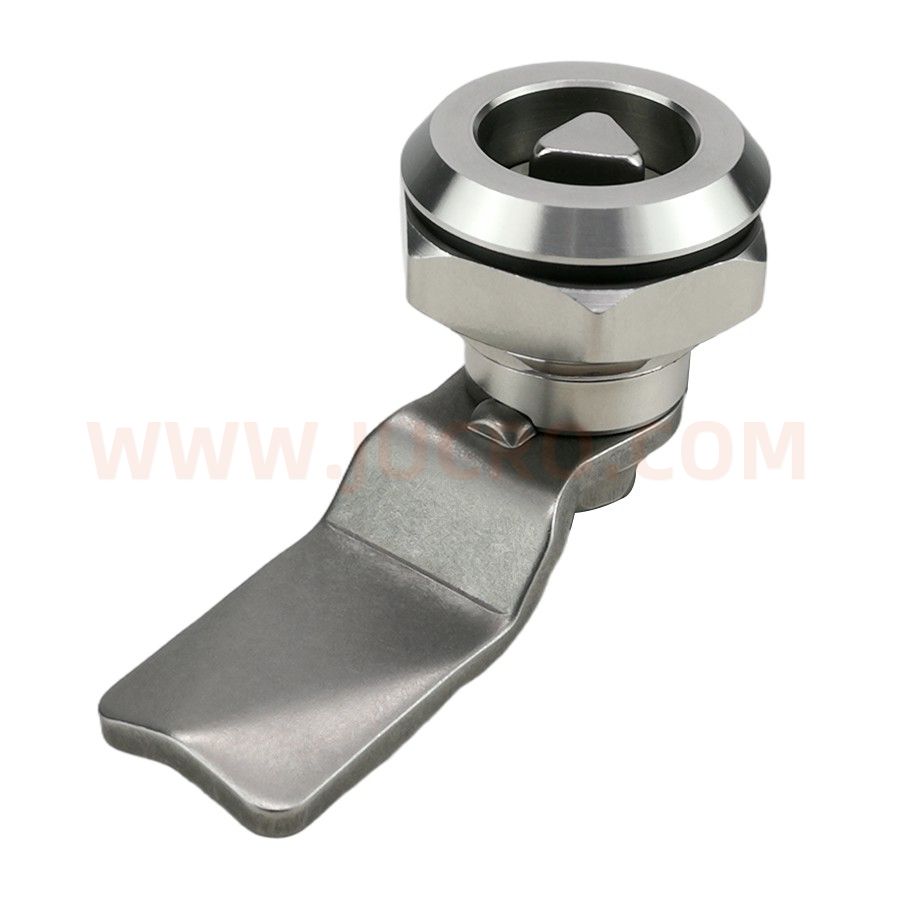

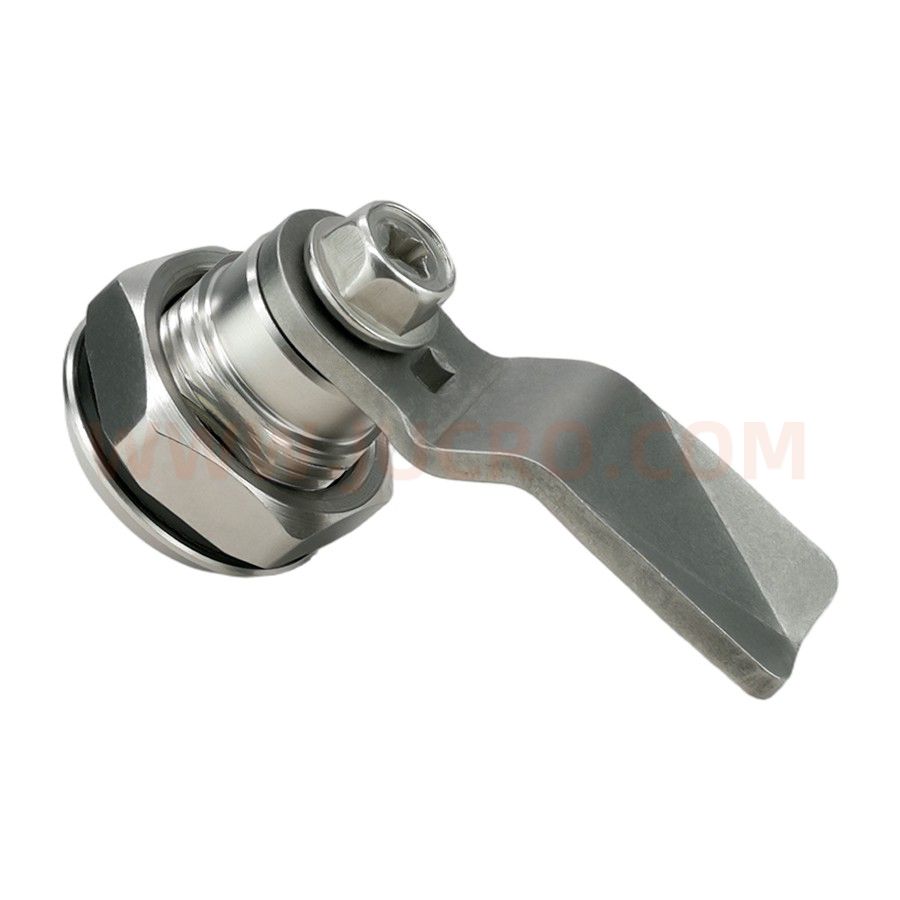

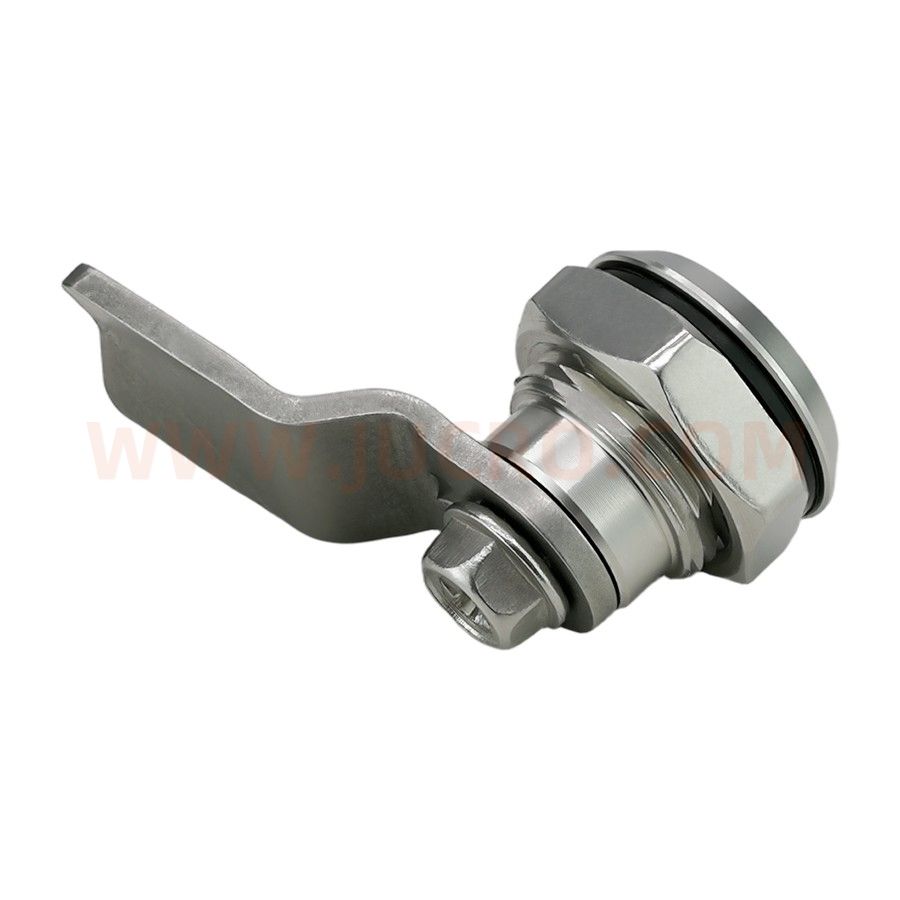

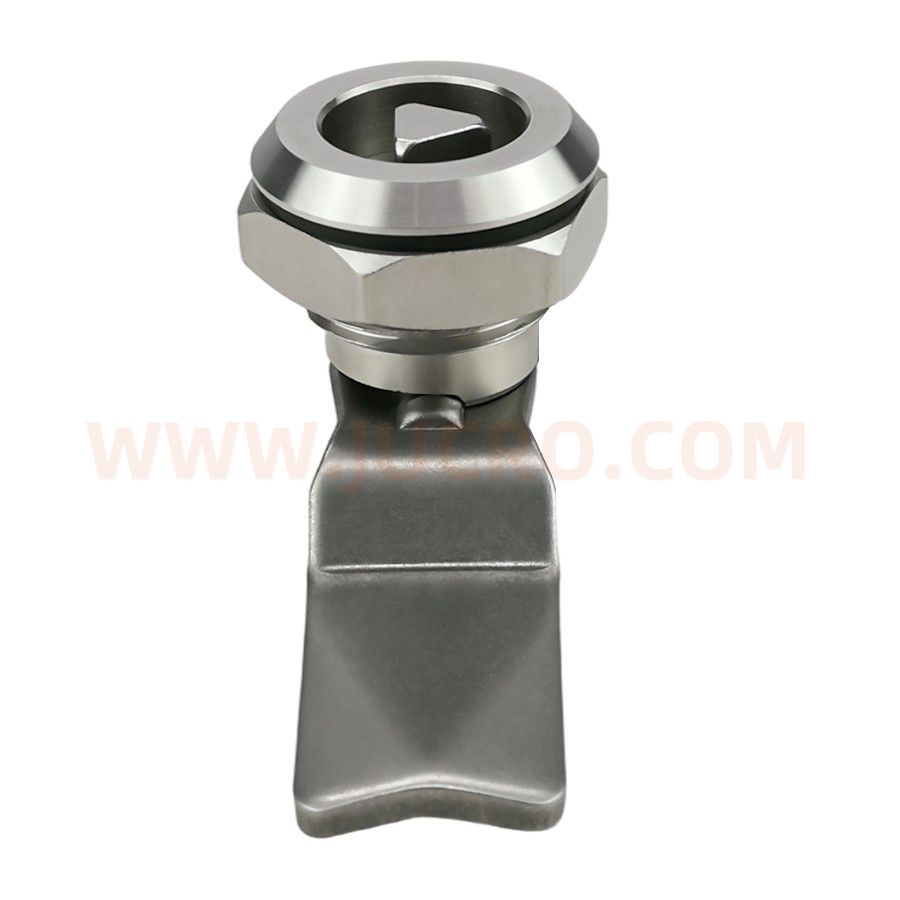

CAM LOCK (DL705-3S)

CAM LOCK (DL705-3S)

Product Detail

特征说明 CHARACTERISTICS

Material

不锈钢基座、锁芯、钢栓

Stainless steel base, Lock cylinder and steel bolt

表面处理

Surface treatment

Without

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock

Remark

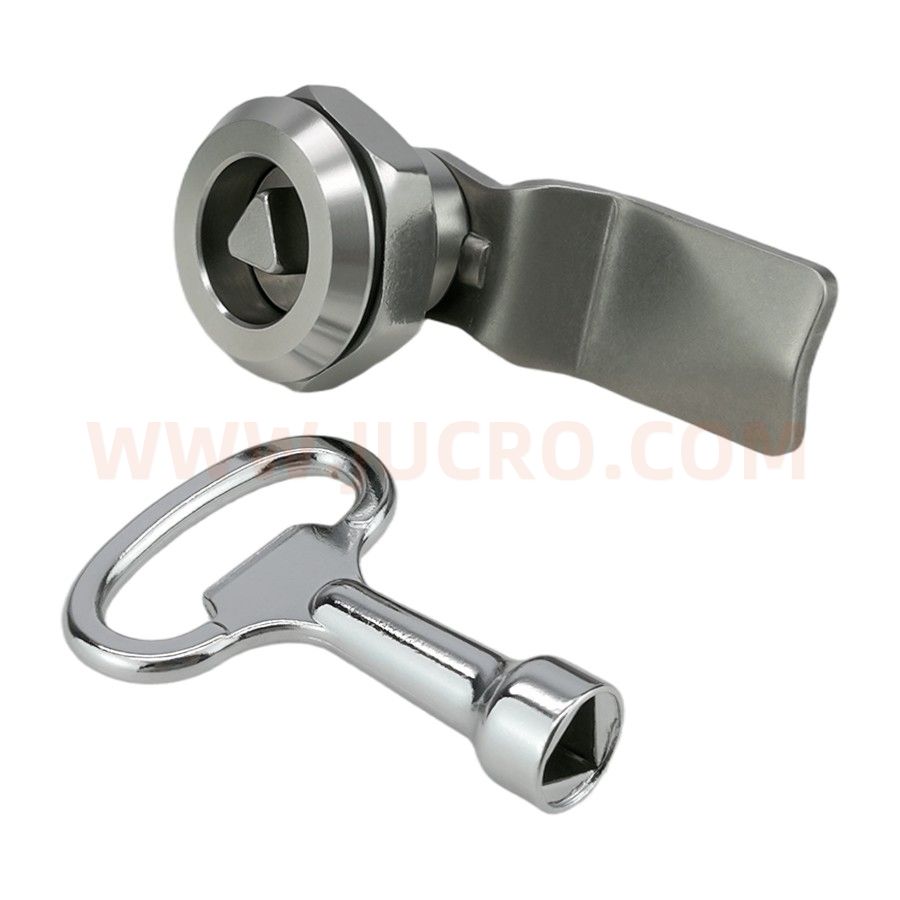

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

***输入扭矩

Maximum input torque

9Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

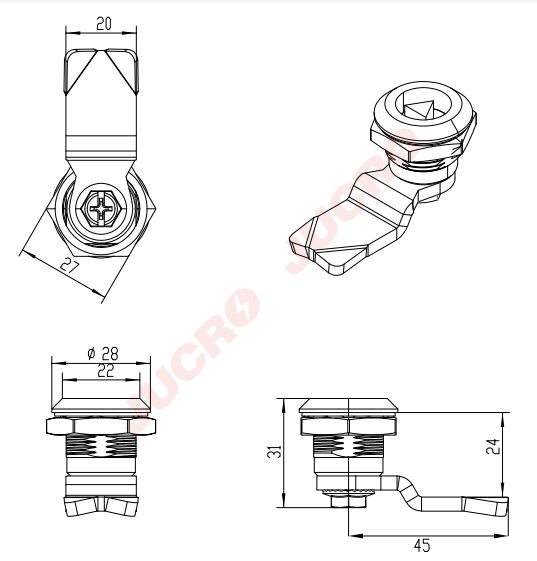

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

Material

不锈钢基座、锁芯、钢栓

Stainless steel base, Lock cylinder and steel bolt

表面处理

Surface treatment

Without

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

***输入扭矩

Maximum input torque

9Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm


外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
