CAM LOCK (DL503-30)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、锁芯，碳钢钢栓 Zinc alloy housing and Lock core, carbon steel bolt |
表面处理 Surface treatment | 镀亮光铬基座、锁芯，钢栓镀白锌 Bright chrome plated housing and lock core, white zinc plated steel bolt |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭 Quarter-turn lock/un-lock |
备 注 Remark | 默认钥匙(专开钥匙，200种组合)；在开锁状态下，钥匙可以拔出（可选功能） Default key(Keyed different, 200 combinations)；The key can be withdrawn in the unlocked state（Optional function） |
性能参数 PERFORMANCE PARAMETERS | |
最大静载荷 Maximum static load | 100N |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 20N•m |

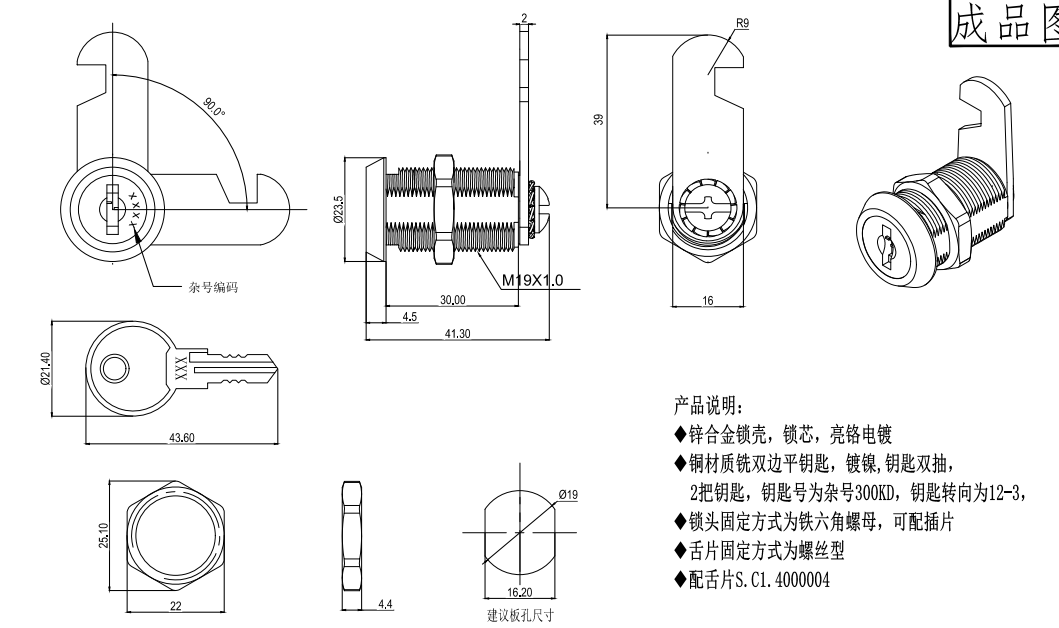

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
