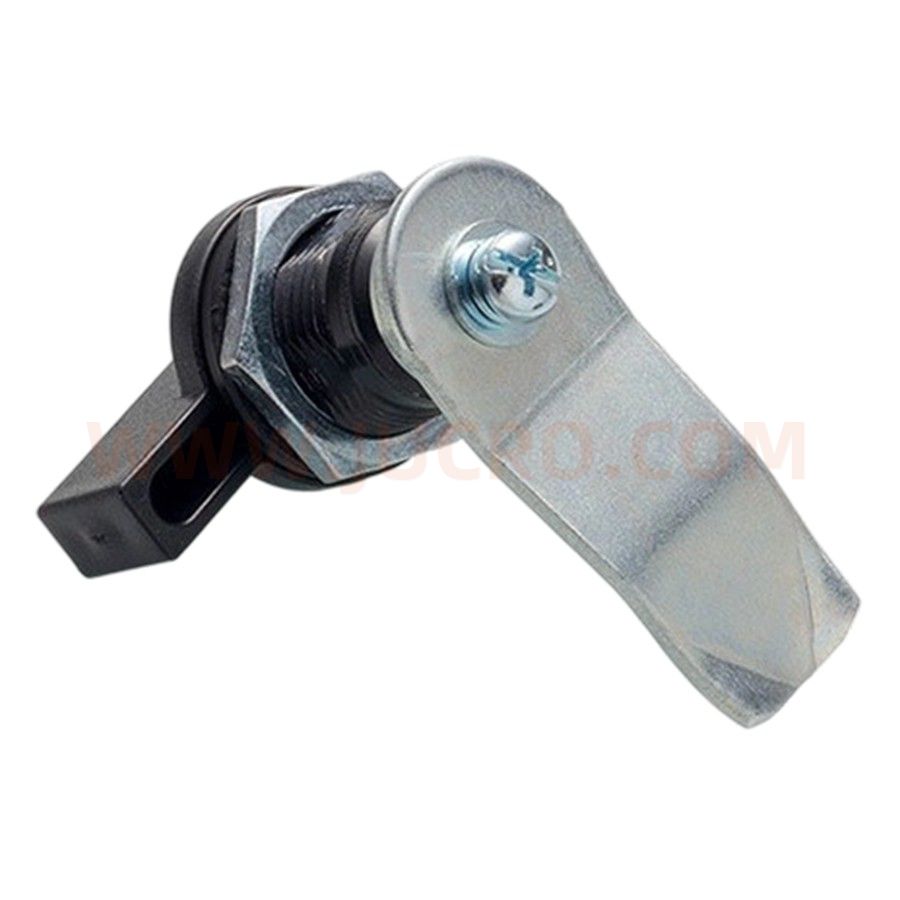

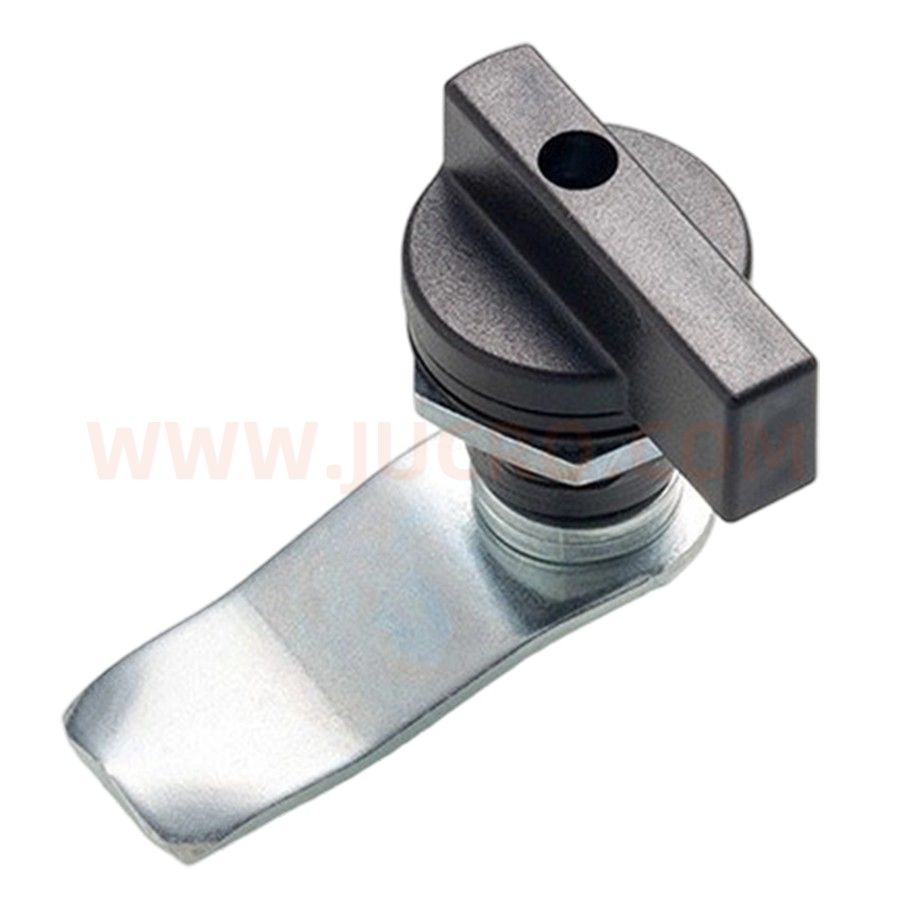

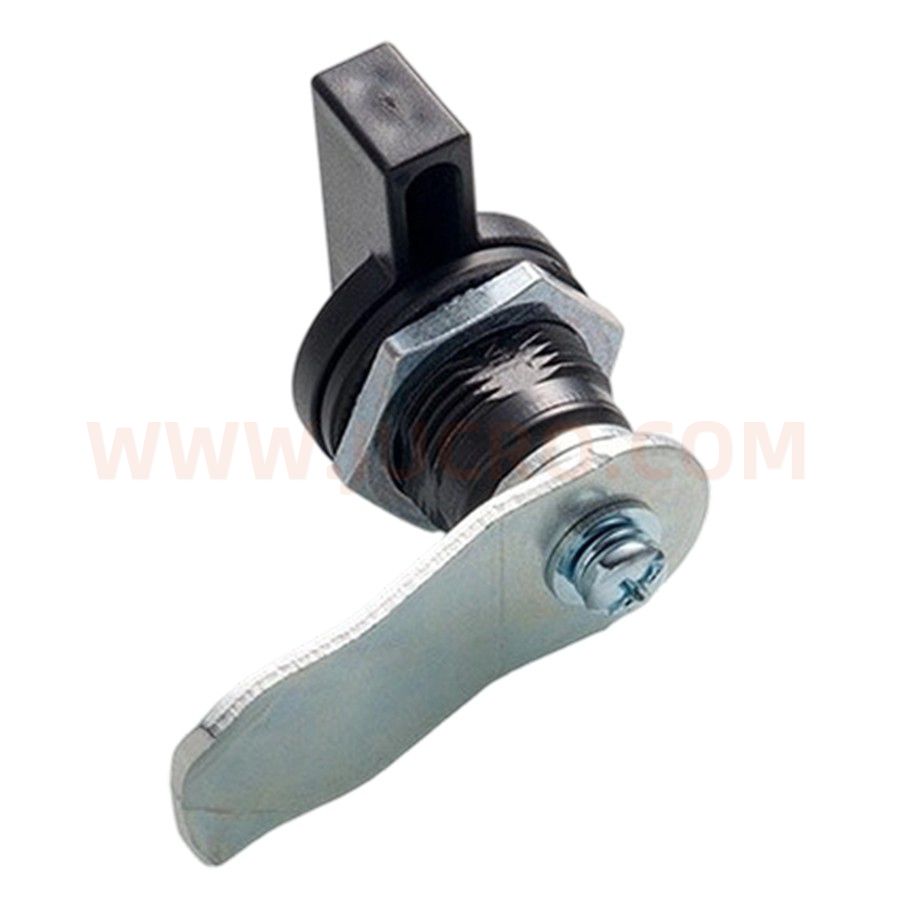

CAM LOCK (DL406)
特征说明 CHARACTERISTICS | |
材 质 Material | ABS把手, 锌合金锁体, 铁镀锌锁片，螺母 ABS handle, Zinc alloy Lock body, Galvanized carbon steel lock cam and screw nut |
表面处理 Surface treatment | 喷黑漆 Black spray coating |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭 Quarter-turn lock/un-lock |
备 注 Remark | 无钥匙 Without key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 250N |
***输入扭矩 Maximum input torque | 18N•m |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 20N•m |

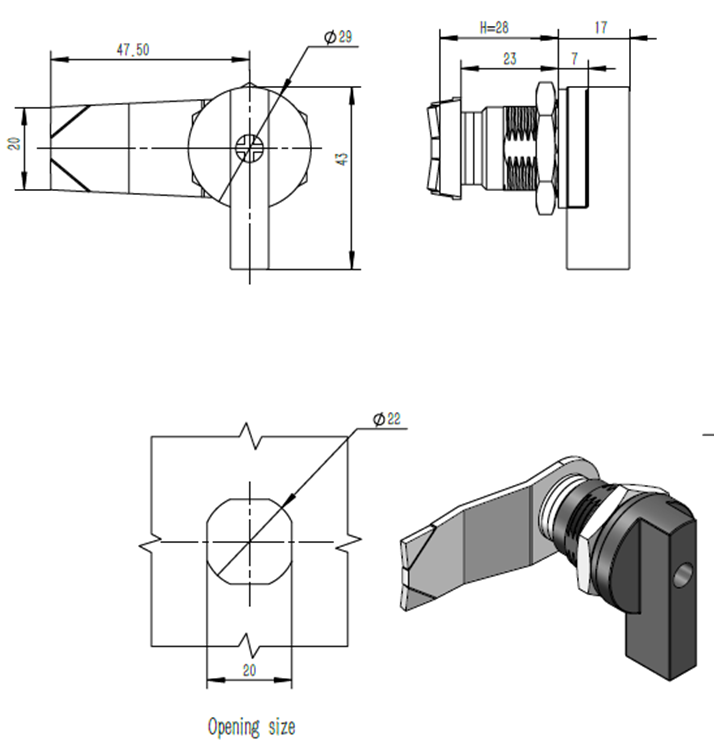

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
