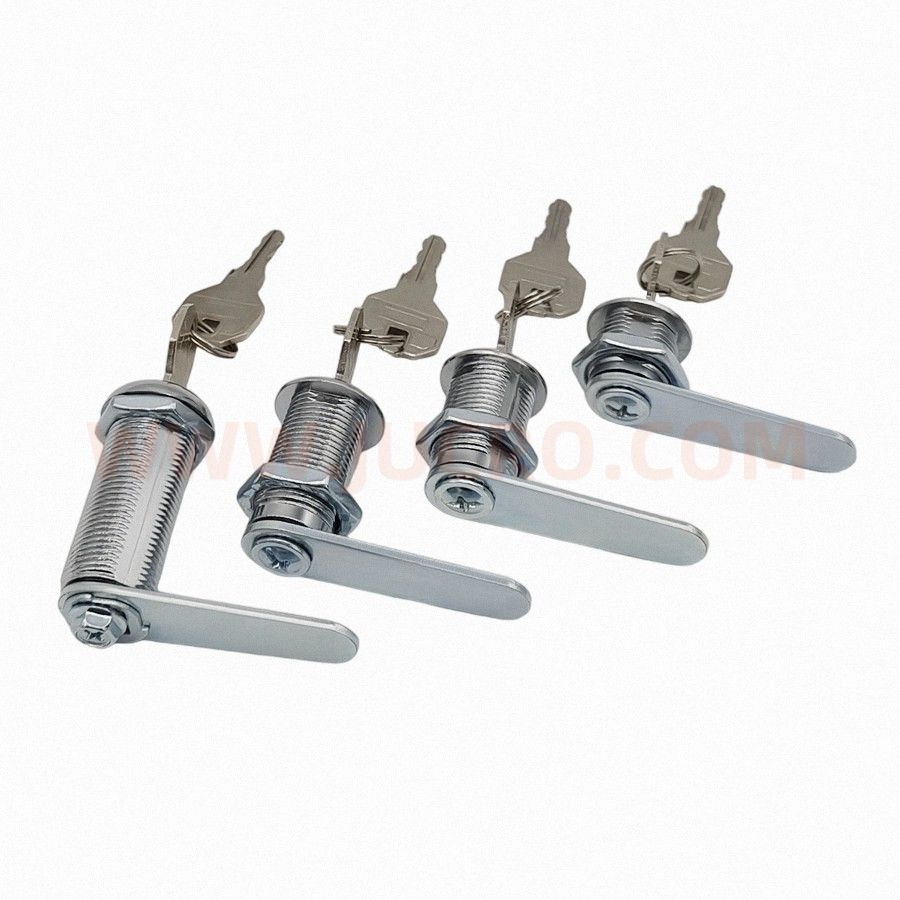

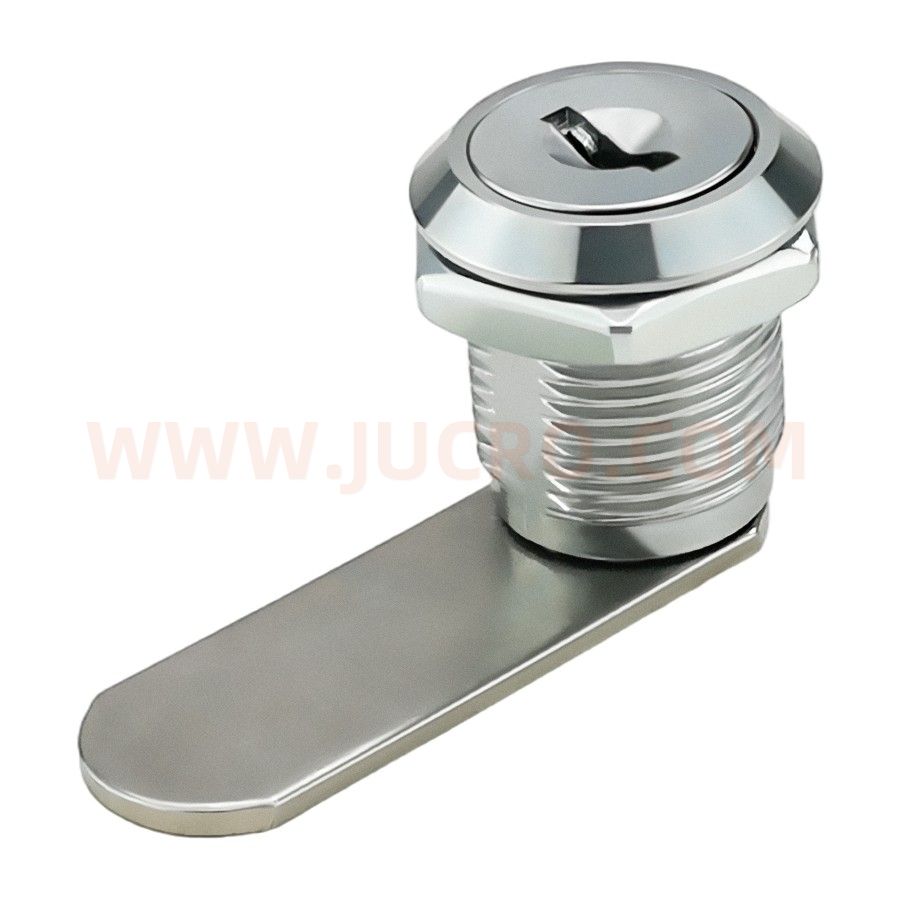

CAM LOCK (DL403)

CAM LOCK (DL403)

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy housing and Lock core, carbon steel bolt

表面处理

Surface treatment

镀亮光铬基座、锁芯,钢栓镀白锌

Bright chrome plated housing and lock core, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock

备 注

Remark

默认钥匙

Default key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

100N

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

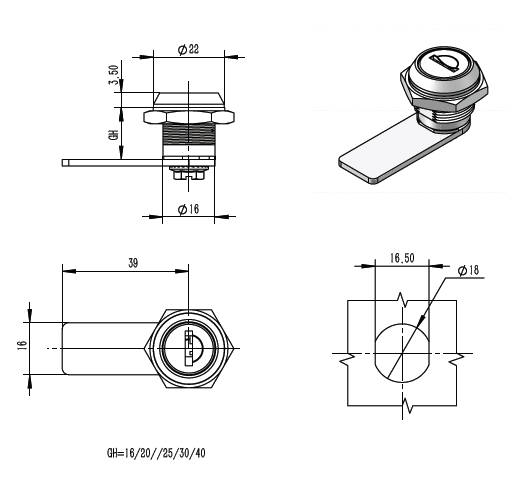

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy housing and Lock core, carbon steel bolt

表面处理

Surface treatment

镀亮光铬基座、锁芯,钢栓镀白锌

Bright chrome plated housing and lock core, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock

备 注

Remark

默认钥匙

Default key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

100N

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
