35KV Sensor CGQ-35Q/155*320

CGQ-35Q系列传感器,材质为环氧树脂,采用APG工艺制作而成,具有高耐压等级,高强度和高稳定性等特点。同时,内置容性电压感应元件,用于反映传感器装置设置处的带电状态。该传感器可配合开关柜柜门电磁锁实现闭锁功能
The CGQ-35Q series sensor is made of epoxy resin and made by APG process. It has the characteristics of high voltage resistance, high strength and high stability. At the same time, a built-in capacitive voltage sensing element is used to indicate the live state of the sensor device. The sensor can work with the electromagnetic lock of the switch cabinet door to realize the locking function.

主要参数 MAIN PARAMETERS



产品型号

Model No.

额定电压

Rated voltage (kV)

工频耐压

Power frequency withstand voltage(1 minute)




CGQ-35Q/155*320

40.5kV

95kV

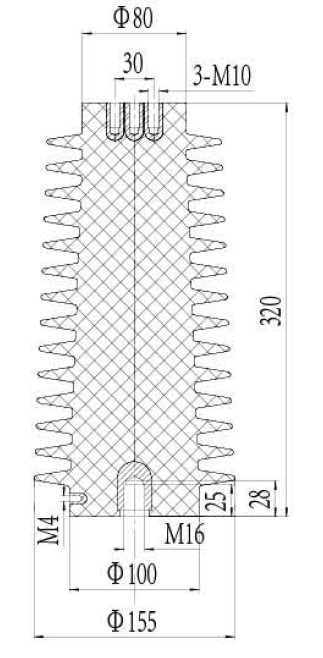

尺寸 DIMENSIONS

Unit: mm

35KV Sensor CGQ-35Q/155*320
CGQ-35Q系列传感器,材质为环氧树脂,采用APG工艺制作而成,具有高耐压等级,高强度和高稳定性等特点。同时,内置容性电压感应元件,用于反映传感器装置设置处的带电状态。该传感器可配合开关柜柜门电磁锁实现闭锁功能
The CGQ-35Q series sensor is made of epoxy resin and made by APG process. It has the characteristics of high voltage resistance, high strength and high stability. At the same time, a built-in capacitive voltage sensing element is used to indicate the live state of the sensor device. The sensor can work with the electromagnetic lock of the switch cabinet door to realize the locking function.
