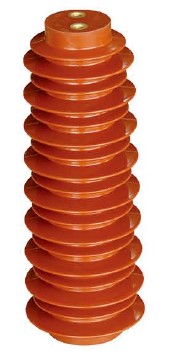

35KV Insulator JYZ-35Q/155*420 (460, 480)

JYZ-35Q系列绝缘子,材质为环氧树脂,采用APG工艺制作而成。具有高耐压等级,高强度和高稳定性等特点,可配用多种国内外主流的中压开关柜。
JYZ-35Q series insulator is made of epoxy resin and made by APG process. It has high insulation level, high strength and high stability and other characteristics, can be equipped and worked with most of the main switchgears in the market, such as ABB, Siemens, Tavrida, Schneider and so on.

主要参数 MAIN PARAMETERS



产品型号

Model No.

额定电压

Rated voltage (kV)

工频耐压

Power frequency withstand voltage(1 minute)




JYZ-35Q/155*420

40.5kV

95kV




JYZ-35Q/155*460

40.5kV

95kV




JYZ-35Q/155*480

40.5kV

95kV

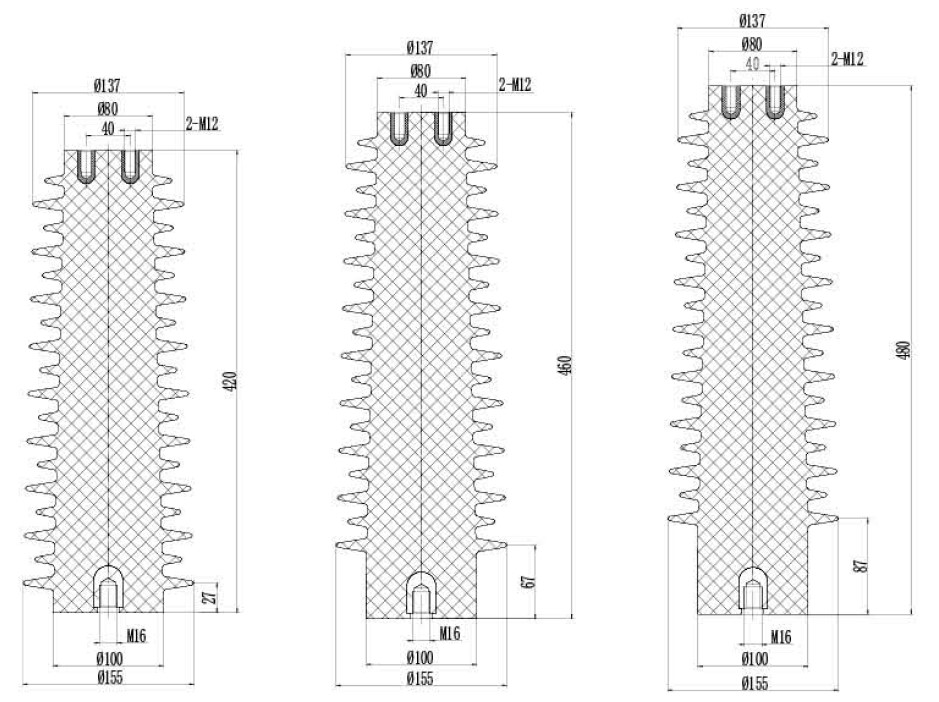

尺寸 DIMENSIONS

Unit: mm

35KV Insulator JYZ-35Q/155*420 (460, 480)
JYZ-35Q系列绝缘子,材质为环氧树脂,采用APG工艺制作而成。具有高耐压等级,高强度和高稳定性等特点,可配用多种国内外主流的中压开关柜。
JYZ-35Q series insulator is made of epoxy resin and made by APG process. It has high insulation level, high strength and high stability and other characteristics, can be equipped and worked with most of the main switchgears in the market, such as ABB, Siemens, Tavrida, Schneider and so on.
