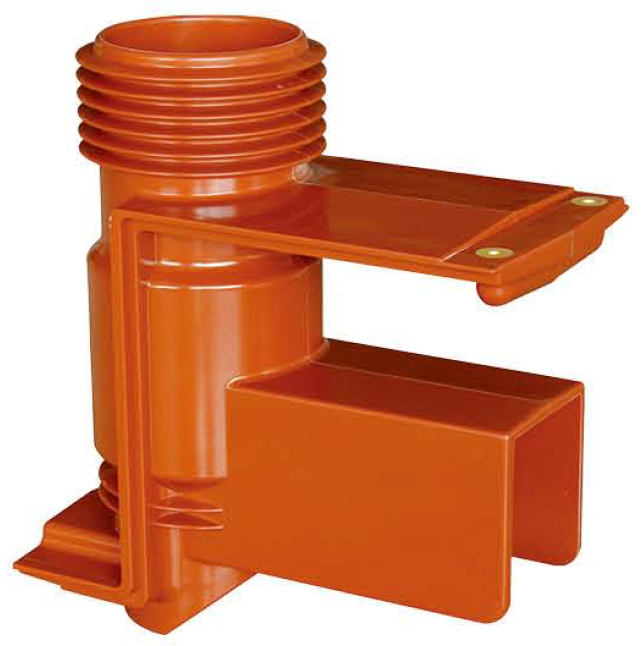

35KV Contact Box CTH-35Q/6062(VEP) for VCB Vacuum Circuit Breaker Switchgear Panel

CTH-35Q系列触头盒,材质为环氧树脂,采用APG工艺制作而成。具有高耐压等级,高强度和高稳定性等特点,可配用多种国内外主流的抽出式断路器。
CTH-35Q series contact box is made of epoxy resin and made by APG process. It has high insulation level, high strength and high stability and other characteristics, can be equipped and worked with most of the main circuit breakers in the market, such as ABB VD4, Siemens 3AE, Tavrida TEL, Schneider HVX and so on.

主要参数 MAIN PARAMETERS


产品型号

Model No.

额定电压

Rated voltage (kV)

额定电流

Rated current (A)





CTH-35Q/6062

40.5kV

2000A

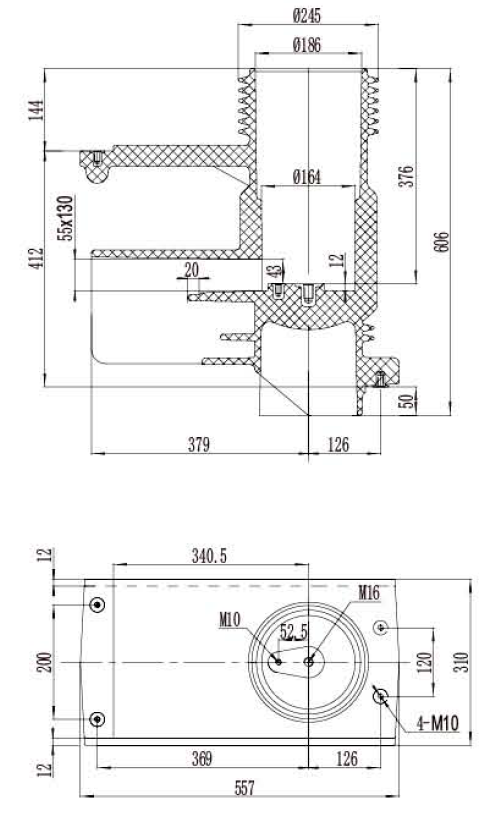

尺寸 DIMENSIONS (mm)

35KV Contact Box CTH-35Q/6062(VEP) for VCB Vacuum Circuit Breaker Switchgear Panel
CTH-35Q系列触头盒,材质为环氧树脂,采用APG工艺制作而成。具有高耐压等级,高强度和高稳定性等特点,可配用多种国内外主流的抽出式断路器。
CTH-35Q series contact box is made of epoxy resin and made by APG process. It has high insulation level, high strength and high stability and other characteristics, can be equipped and worked with most of the main circuit breakers in the market, such as ABB VD4, Siemens 3AE, Tavrida TEL, Schneider HVX and so on.
