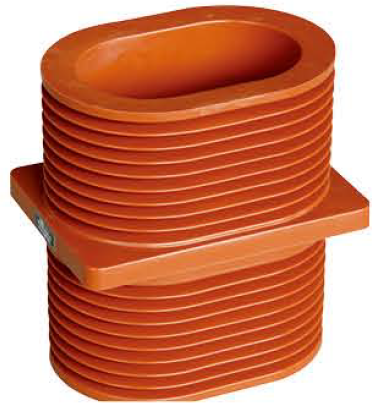

24KV Wall Bushing BSH-24Q/175*255*310

BSH-24Q系列套管,材质为环氧树脂,采用APG工艺制作而成。具有高耐压等级,高强度和高稳定性等特点,可配用多种国内外主流的中压开关柜。
BSH-24Q series wall bushing is made of epoxy resin and made by APG process. It has high insulation level, high strength and high stability and other characteristics, can be equipped and worked with most of the main switchgears in the market, such as ABB, Siemens, Tavrida, Schneider and so on.

主要参数 MAIN PARAMETERS



产品型号

Model No.

额定电压

Rated voltage (kV)




BSH-24Q/175*255*310

24kV

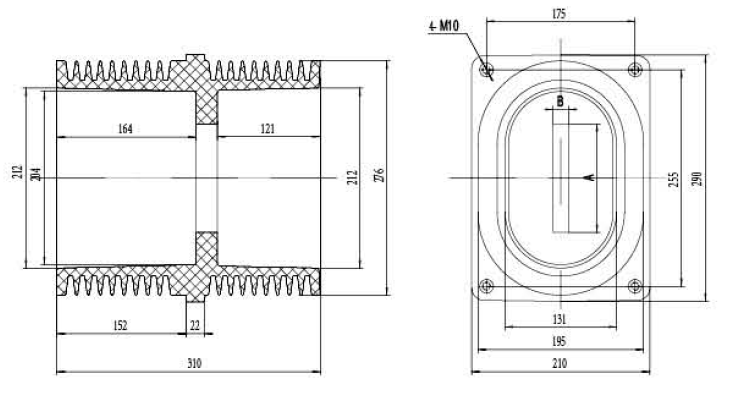

尺寸 DIMENSIONS

Unit: mm

开孔尺寸 Hole dimension

A

B

70

20

90

20

110

20


24KV Wall Bushing BSH-24Q/175*255*310
BSH-24Q系列套管,材质为环氧树脂,采用APG工艺制作而成。具有高耐压等级,高强度和高稳定性等特点,可配用多种国内外主流的中压开关柜。
BSH-24Q series wall bushing is made of epoxy resin and made by APG process. It has high insulation level, high strength and high stability and other characteristics, can be equipped and worked with most of the main switchgears in the market, such as ABB, Siemens, Tavrida, Schneider and so on.
