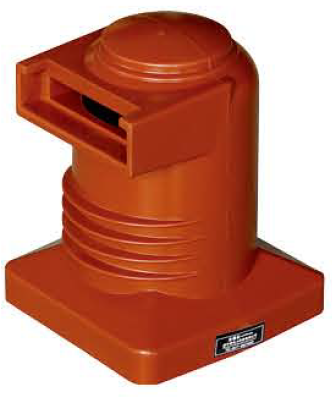

12KV Contact Box CTH-10Q/190G for VCB Vacuum Circuit Breaker Switchgear Panel
CTH-10Q series contact box is made of epoxy resin and made by APG process. It has high insulation level, high strength and high stability and other characteristics, can be equipped and worked with most of the main circuit breakers in the market, such as ABB VD4, Siemens 3AE, Tavrida TEL, Schneider HVX and so on.
主要参数 MAIN PARAMETERS |
产品型号 Model No. | 额定电压 Rated voltage (kV) | 额定电流 Rated current (A) | ||||
CTH-10Q/190G | 12kV | 1250A~1600A |
