HVJ5-1.14/□-S Single pole vacuum contactor

HVJ5-1.14/□-S Single pole vacuum contactor

HVJ5-1.14/□-S Single pole vacuum contactor

Quantity

Product Detail

HVJ5-1.14/□-S Single pole vacuum contactor


1 General

HVJ5-1.14/□-S AC vacuum contactor is designed for long-distance making and breaking of circuit, under AC 50Hz-60Hz, rated voltage 1140V and rated current to 160A. The contacts are inside a vacuum chamber. So there is no arc outside the switch. Meanwhile, it is small size, light weight, maintenance-free. It is specially suitable for municipal street lamp control circuit.


2. Main technical parameter 产品参数

Product model

型号

Rated voltage (V)

额定电压(工频)V

Rated currentMain circuitA

额定电流 (主电路)

Main contacts parameters

主触头参数

Power frequency withstand voltage V(effective value)

工频耐压V(有效值)


Main circuit

主电

Control circuit

控制电路

Opening distance

开距mm

Over travel

超程
(mm)

Final pressure

终压力
(N)


Main circuit

主电路

Auxiliary circuit

辅助电路

Control circuit

控制电路


HVJ5-1.14/125-S

1140

36.110.220.380

125

1.8±0.2

1±0.2

30±3

4200

2500

2000


HVJ5-1.14/160-S

1140

36.110.220.380

160

1.8±0.2

1±0.2

30±3

4200

2500

2000




Product model

产品型号

Making capacity

接通能力

Breaking capacity

分断能力

Limit breaking current极限分断电流(A)

Electricity life times

电寿命次数

Mechanical life times

机械寿命次数

Overload capacity

过载能力

AC3

AC4

HVJ5-1.14/125-S

10In,100OPS

8In, 25OPS

10In, 3OPS

60*104

6*104

300*104

8In 10S

HVJ5-1.14/160-S

10In,100OPS

8In, 25OPS

10In, 3OPS

60*104

6*104

300*104

8In 10S

 Remark:

1.       “In” means “Rated current of main circuit”.

2.       “OPS” means “operations”.


3. Dimension

No comment

Product Detail

HVJ5-1.14/□-S Single pole vacuum contactor


1 General

HVJ5-1.14/□-S AC vacuum contactor is designed for long-distance making and breaking of circuit, under AC 50Hz-60Hz, rated voltage 1140V and rated current to 160A. The contacts are inside a vacuum chamber. So there is no arc outside the switch. Meanwhile, it is small size, light weight, maintenance-free. It is specially suitable for municipal street lamp control circuit.


2. Main technical parameter 产品参数

Product model

型号

Rated voltage (V)

额定电压(工频)V

Rated currentMain circuitA

额定电流 (主电路)

Main contacts parameters

主触头参数

Power frequency withstand voltage V(effective value)

工频耐压V(有效值)


Main circuit

主电

Control circuit

控制电路

Opening distance

开距mm

Over travel

超程
(mm)

Final pressure

终压力
(N)


Main circuit

主电路

Auxiliary circuit

辅助电路

Control circuit

控制电路


HVJ5-1.14/125-S

1140

36.110.220.380

125

1.8±0.2

1±0.2

30±3

4200

2500

2000


HVJ5-1.14/160-S

1140

36.110.220.380

160

1.8±0.2

1±0.2

30±3

4200

2500

2000




Product model

产品型号

Making capacity

接通能力

Breaking capacity

分断能力

Limit breaking current极限分断电流(A)

Electricity life times

电寿命次数

Mechanical life times

机械寿命次数

Overload capacity

过载能力

AC3

AC4

HVJ5-1.14/125-S

10In,100OPS

8In, 25OPS

10In, 3OPS

60*104

6*104

300*104

8In 10S

HVJ5-1.14/160-S

10In,100OPS

8In, 25OPS

10In, 3OPS

60*104

6*104

300*104

8In 10S

 Remark:

1.       “In” means “Rated current of main circuit”.

2.       “OPS” means “operations”.

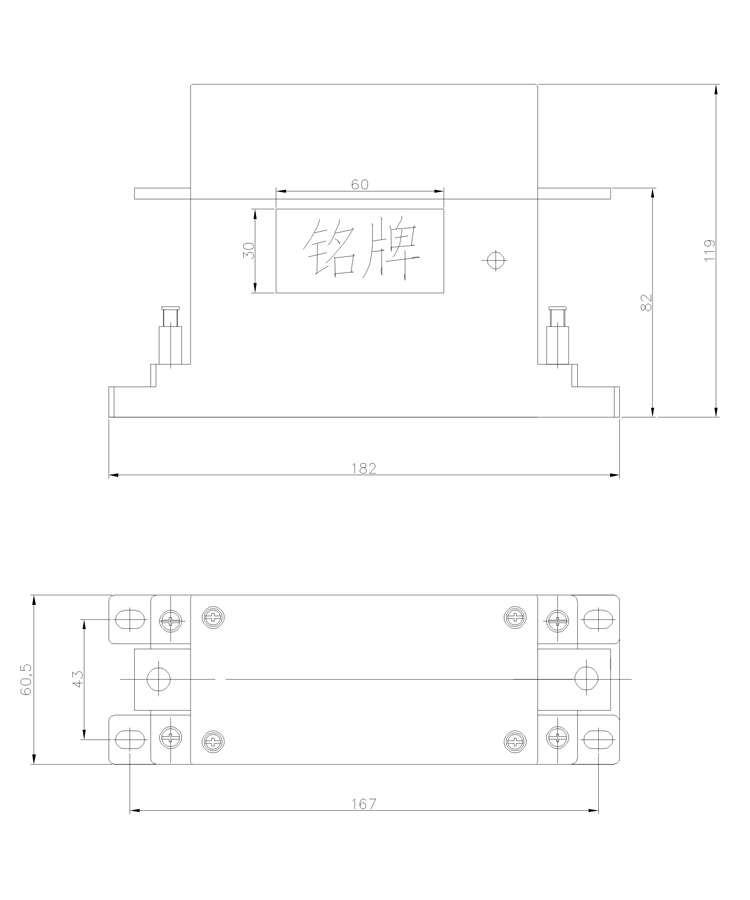

3. Dimension



HVJ5-1.14/□-S Single pole vacuum contacto...

Long by picture,save to album

Please wait while the picture is loaded
Long by picture save/share
