Vacuum Interrupter 1.14KV 250A HCJ5 for vacuum contactor from JUCRO Electric
vacuum interrupter accept customized order design for you

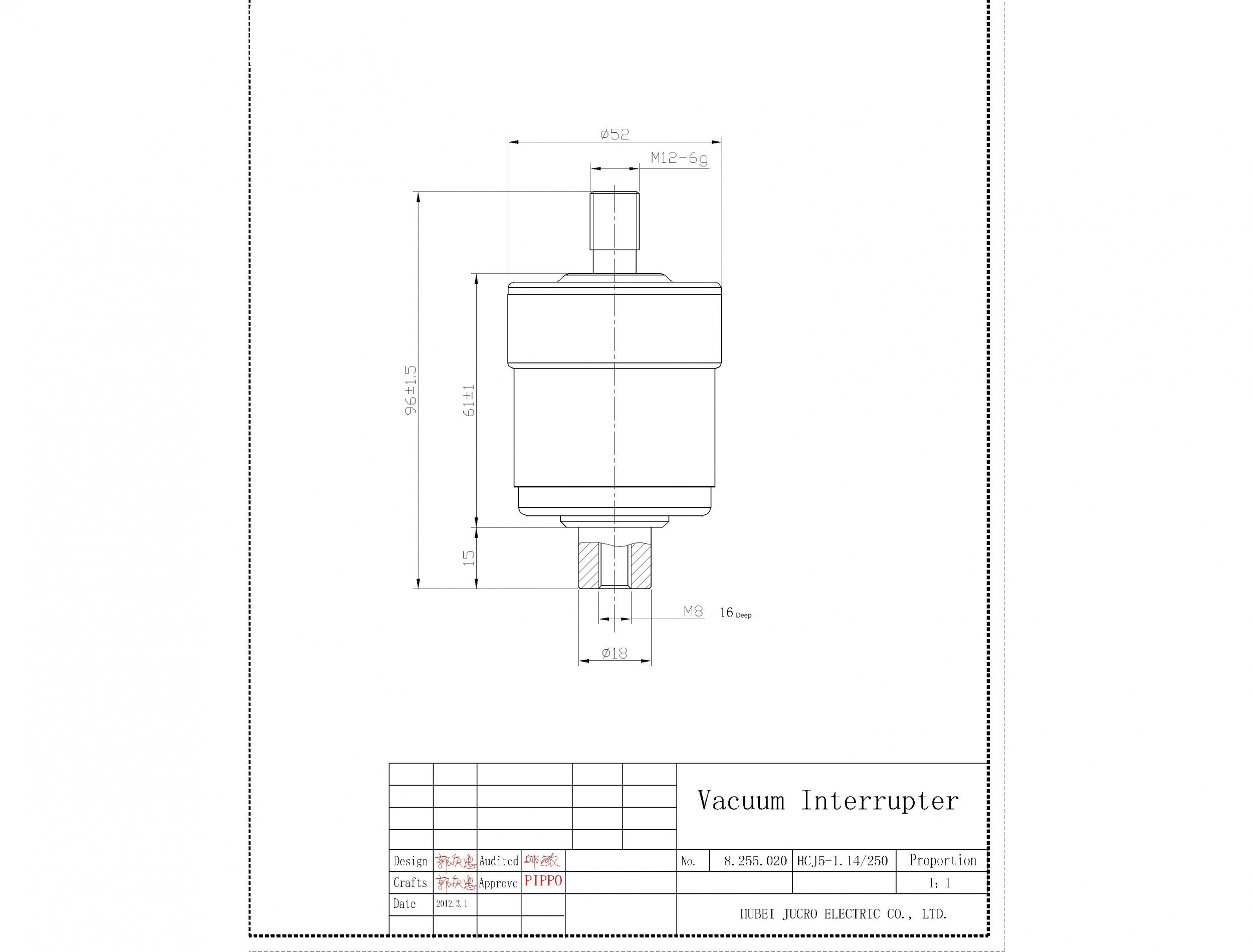

Vacuum Interrupter 1.14KV 250A HCJ5 for vacuum contaCTor from JUCRO Electric
Brief introduction
The vacuum interrupter adoption porcelain and ceramics makes to insulate the outer shell. Contact is WCCu metal alloy material advanced technique of adoption Including bulk small. Breaking the abiliting strong the life span is long, maintenanle is simple, no explosion dangerous, no contaminate and the noise is low. It is extensive to used for coal mine , chemical engineering, Petroleum metallurgy etc. department, more than keeping with at the multifarious operation with the bad place usage of environment
Vacuum Tube main technique parameter
No. | Parameter name | Unit | Value | |
1 | Rated voltage | kV | 1.14 | |
2 | Rated current | A | 250 | |
3 | Rated frequency | Hz | 50 | |
4 | Rated making current | A | 2500 | |
5 | Rated breaking current | A | 2000 | |
6 | Limiting breaking current | A | 2500 | |
7 | Rated short-time withstand current | A | 2000 | |
8 | Rated short-time withstand voltage | kV | 10 | |
9 | Mechanical life | times | 1000000 | |
10 | Breaking operations | AC3 | times | 150000 |
AC4 | 6000 | |||
11 | Automatic closing force of the contacts | N | 50±10 | |
12 | Force required to hold contacts open at full stork | N | 70±10 | |
13 | Circuit resistance at lowest rated contacts force | μΩ | ≤120 | |
14 | Limiting abrasion of contacts | mm | 2 | |
15 | Storage life | year | 20 | |
16 | Internal gas pressure | Pa | ≤1.33×10-3 | |
Vacuum Contactor technical specifications
No. | Parameter name | Unit | Value | |
1 | Clearance between opening cantacts | mm | 2±0.2 | |
2 | Contacts travel | mm | 1±0.2 | |
3 | Average opening speed | m/s | 0.6±0.1 | |
4 | Average closing speed | m/s | 0.3±0.1 | |
5 | Rated contacts pressure | N | 100±20 | |
6 | Contacts bouncing duration at closing operation | m/s | ≤2 | |
7 | Closing synchronism | m/s | ≤2 | |
8 | Contacts re-bouncing duration at opening operation | mm | ≤1 | |
